Scantool Diagnostics

Immobilizer

P1694 Immobilizer-EMS Message Error - Scantool Diagnostics

Monitor Scantool Data

1. Check status
(1) IG "ON" & Engine "OFF"
(2) Monitor the "ECU, KEY and Smartra STATUS' Parameter on the Scantool.

Specification : 'LEARNT'




Fig.1) This data show that 3 keys have been taught, ECU has been learnt, Key in key cylinder has been learnt and SMARTRA 3 has been learnt

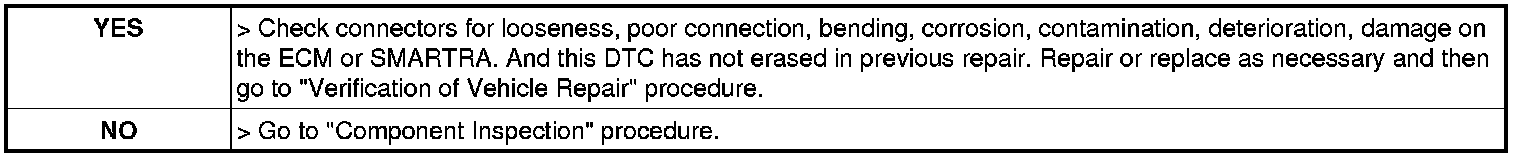

(3) Are "KEY STATUS", "SMARTRA STATUS" and" ECU STATUS' Parameter within specifications?
