Scantool Diagnostics

Immobilizer

P1691 Immobilizer-Antenna Coil Error - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. IG "ON" & Engine "OFF"
3. Monitor the "ECU, KEY and Smartra STATUS' Parameter on the Scantool.

Specification : 'LEARNT'




Fig.1) This data show that 3 keys have been taught, ECU has been learnt, Key in key cylinder has been learnt and SMARTRA 3 has been learnt.

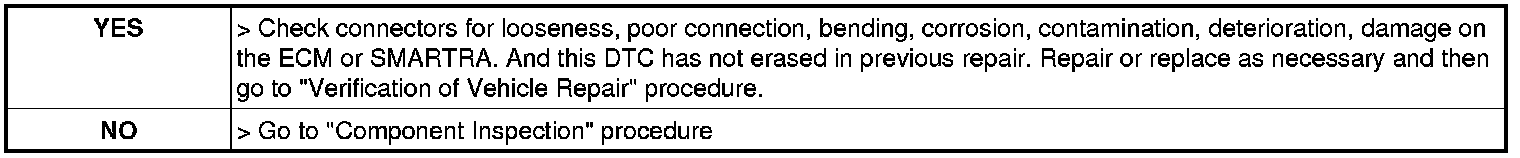

4. Have the both "ECM, KEY and Smartra STATUS' been learnt?
