Scantool Diagnostics

Immobilizer

P1675 Immobilizer-Transponder Programming Error - Scantool Diagnostics

Monitor Scantool Data

1. Check status
(1) IGN "ON" & Engine "OFF"
(2) Monitor the "ECM, Key and Smartra Status" Parameter on the Scantool.

Specification : 'LEARNT'




Fig.1) This data show that 3 keys have been taught, ECU has been learnt, Key in key cylinder has been learnt and SMARTRA 3 has been learnt.

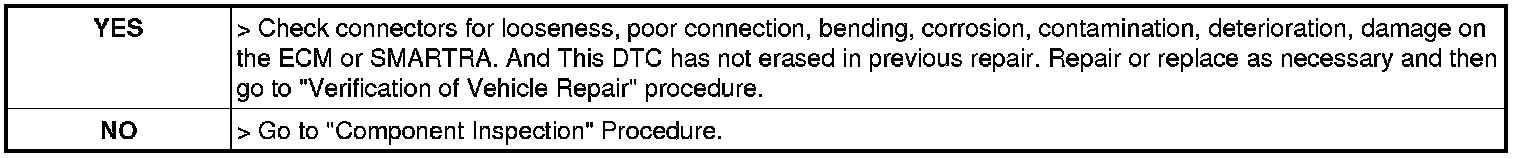

(3) Are "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS' Parameter within specifications?
