Component Inspection

Automatic Transaxle

P0758 Shift Control Solenoid Valve 'B' Electrical (Front Brake Solenoid) - Component Inspection

Component Inspection

Check shift solenoid valve "FR/B"

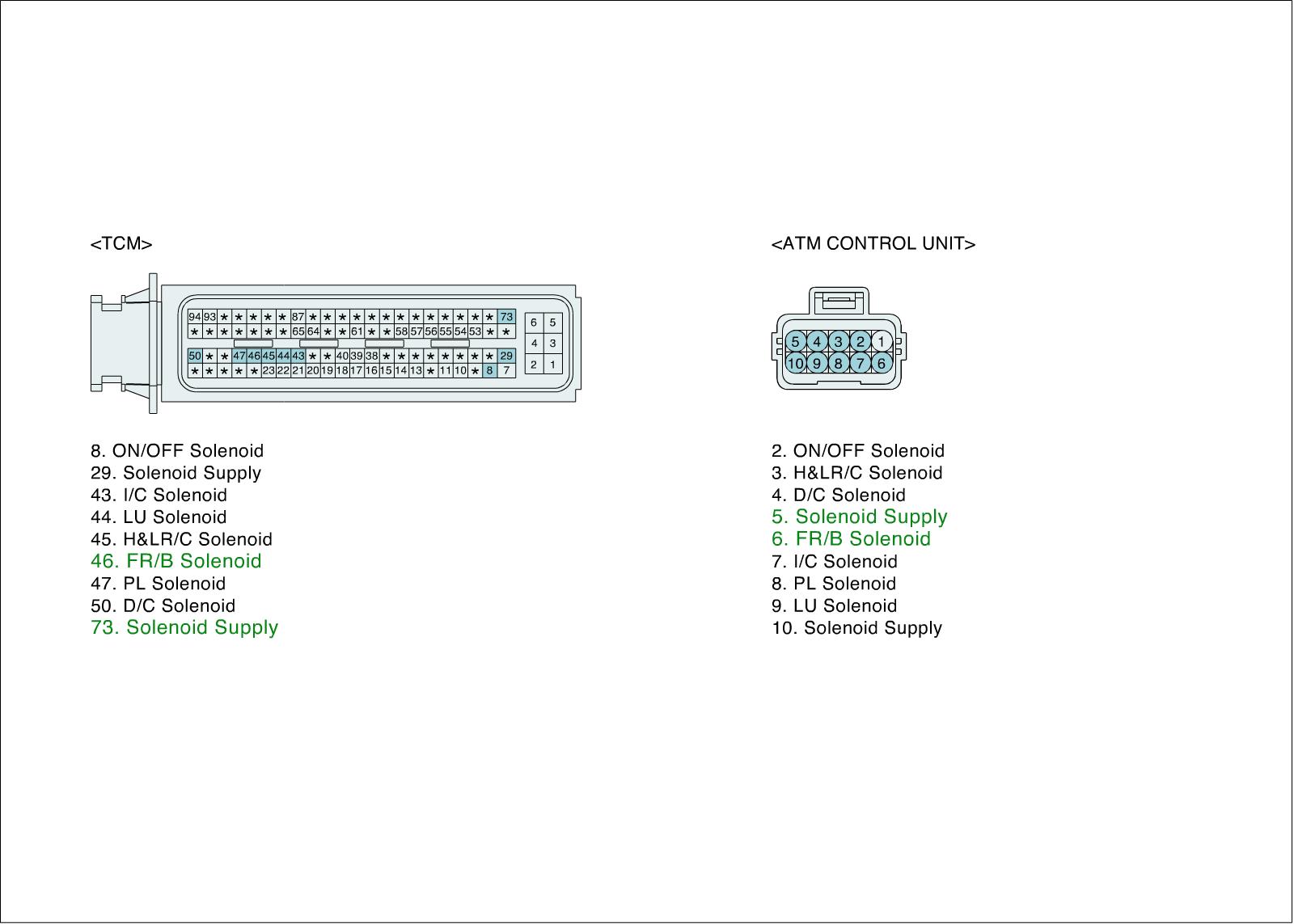

1. Disconnect " ATM Solenoid Valve" connector.
2. Ignition "OFF".

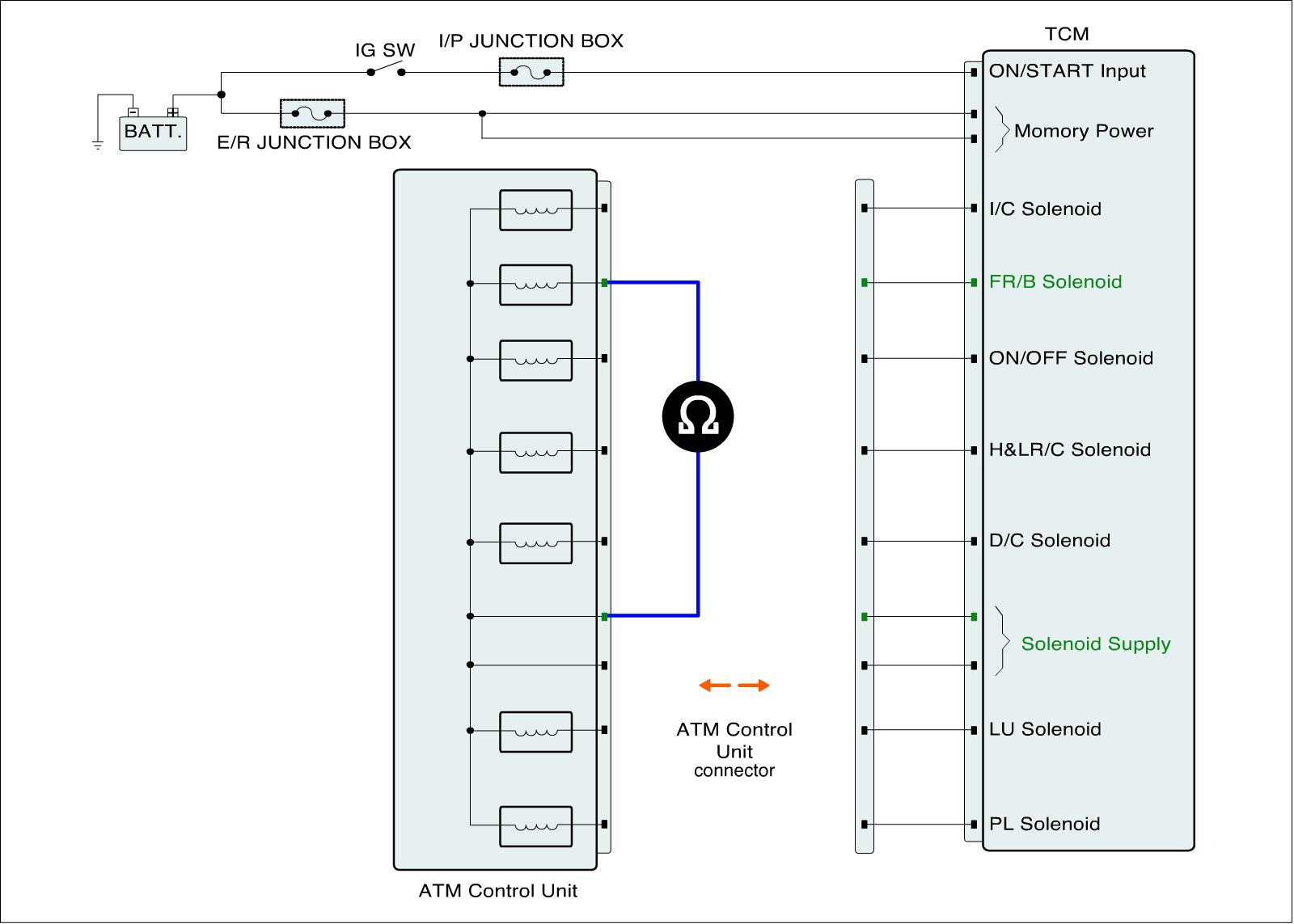

3. Measure continuity between ground terminal of FR/B Solenoid and chassis ground.

Specification : Approx. 3 - 9 Ohms

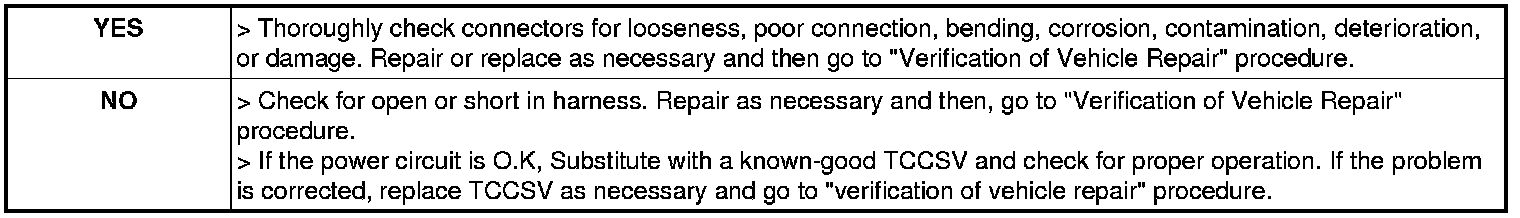

4. Is the measured resistance within specifications?
