Component Inspection

Automatic Transaxle

P0748 Pressure Control Solenoid Valve (VFS) 'A' Electrical - Component Inspection

Component Inspection

Check Pressure Control Valve

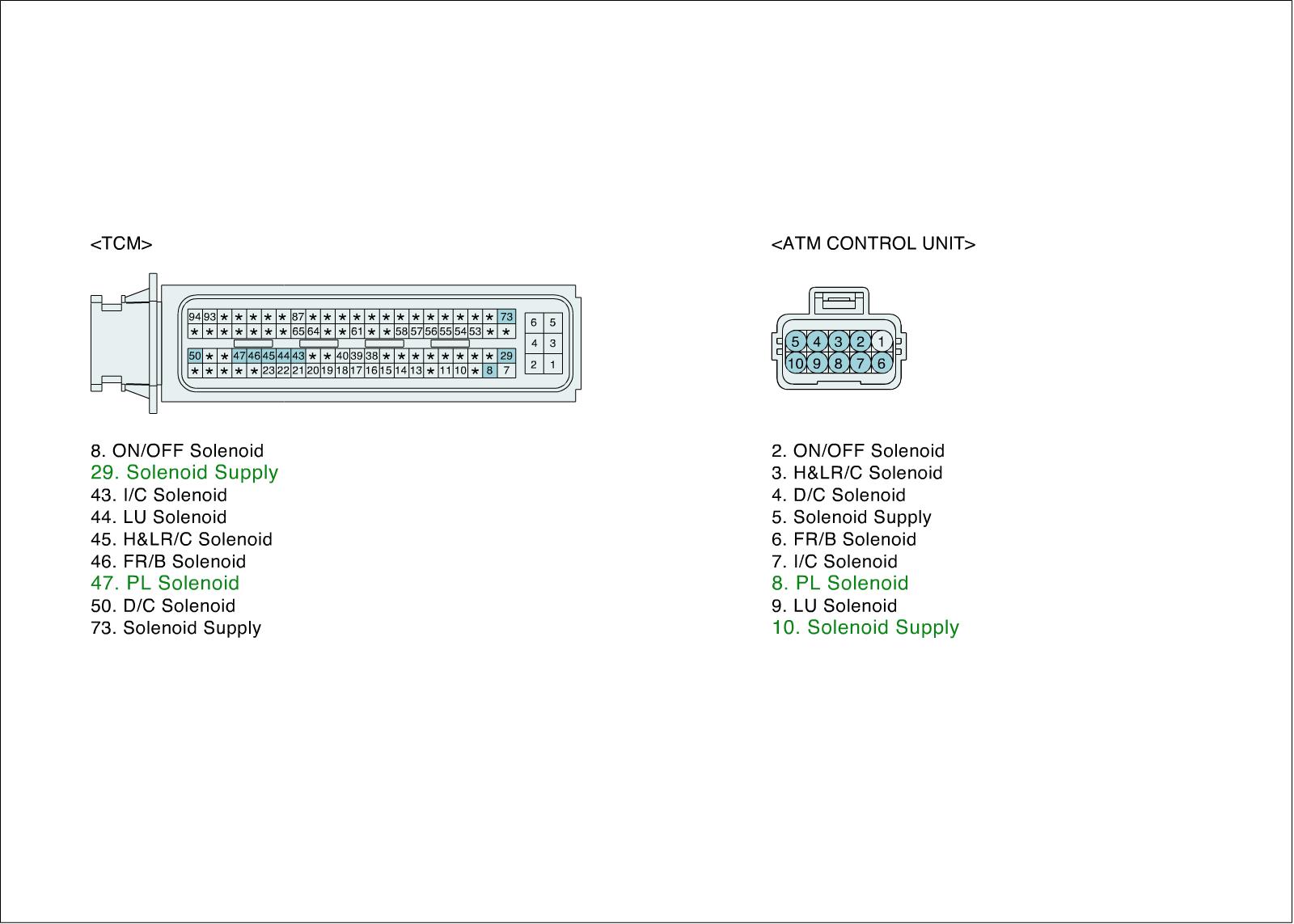

1. Disconnect " ATM Solenoid Valve" connector.
2. Ignition "OFF".

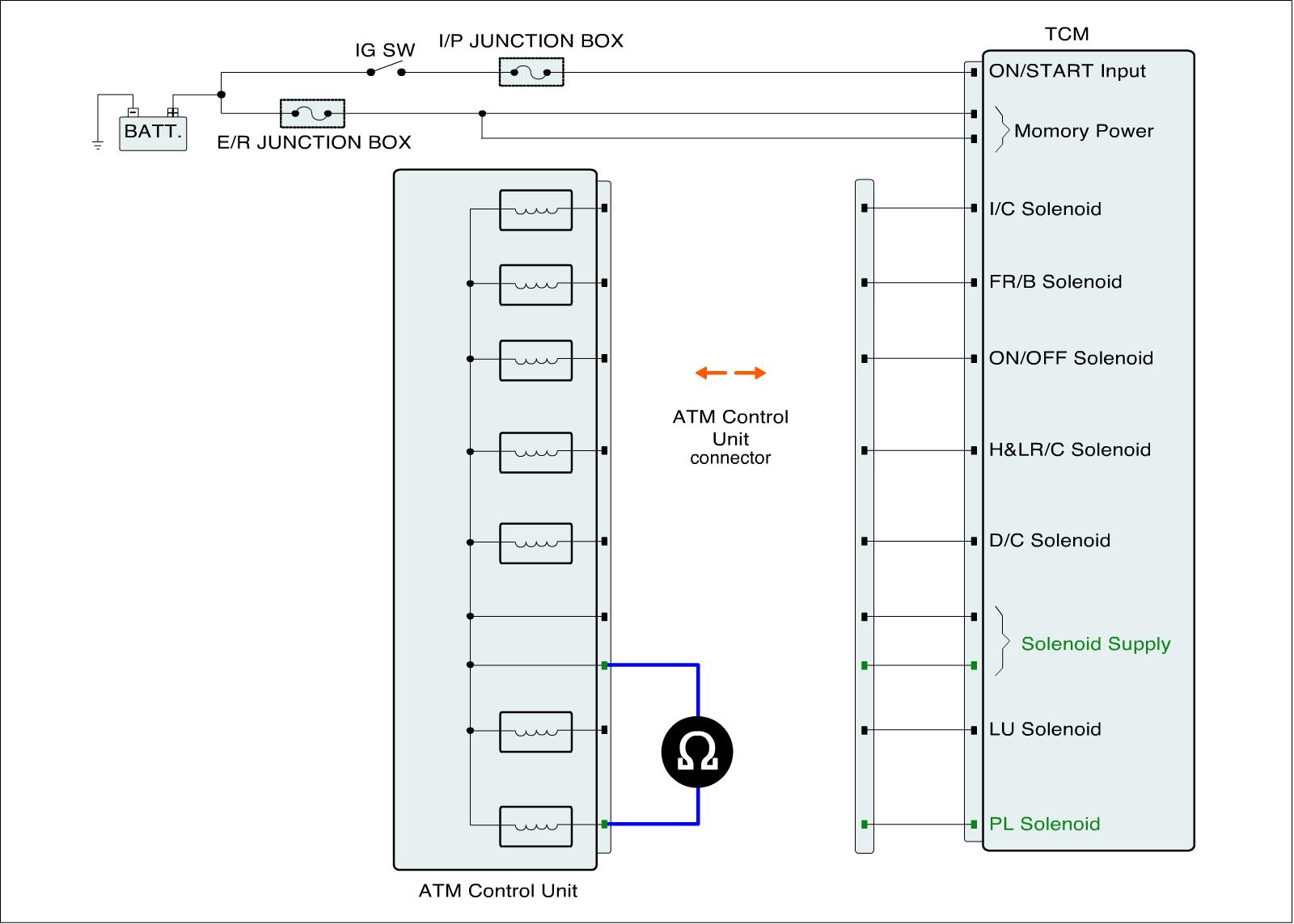

3. Measure continuity between ground terminal of PL Solenoid and chassis ground.

Specification : Approx. 3 - 9 Ohms

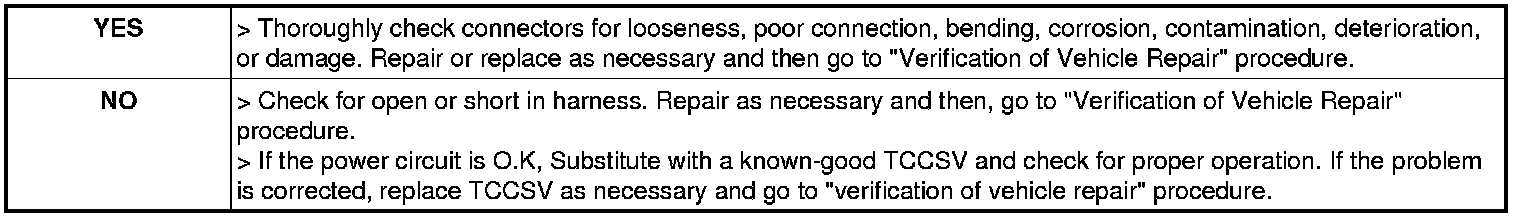

4. Is the measured resistance within specifications?
