P0735 Gear 5 Incorrect Ratio - Scantool Diagnostics

Monitor GDS Data

Stall Test
** It is difficult to do "STALL TEST" in 5th gear, so that Go to "signal check" procedure.

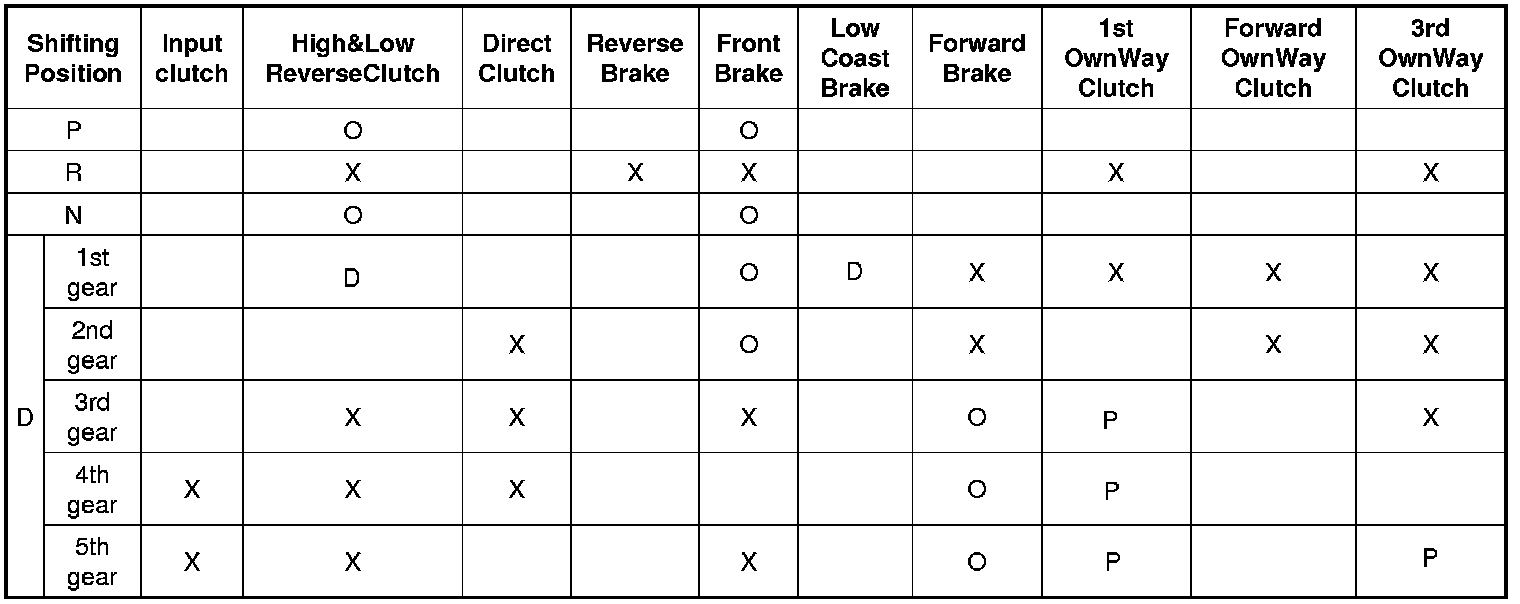

OPERATING ELEMENT OF EACH SHIFTING RANGE





X: WORKING.
P: PARTICIPATE IN DELIVERY TORQUE WHEN COAST DRIVING.
O: SUPPLING OIL PRESSURE TO ELEMENT, BUT NOT EFFECT ON OUTPUT.
D: TEMPORARY WORKING.

Signal Check
1. Connect GDS.
2. Engine "ON".
3. Monitor the "INPUT & OUTPUT SPEED SENSOR" parameter on the GDS.
4. Accelerate the Engine speed until about 2000 rpm in the 5th gear.

Specification : INPUT SPEED - (OUTPUT SPEED • 5th GEAR RATIO) ≥ 200 RPM

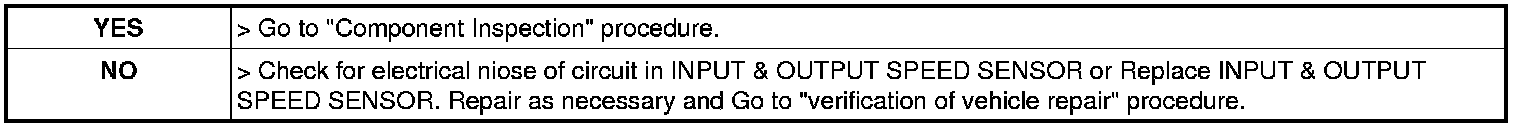

5. Does "INPUT & OUTPUT SPEED SENSOR" within specifications?
