Component Inspection

Automatic Transaxle

P0717 Input/Turbine Speed Sensor 'A' Circuit No Signal - Component Inspection

Component Inspection

1. Ignition "ON" & Engine "OFF".
2. Disconnect "ATM Control Unit (CLG01-C)" connector.
3. Connect GDS and select 'Simulation Function"on the scanner.
4. Simulate duty pulse on signal terminal of "Input Speed Sensor 2" with scanner.
** In a case of Input Speed Sensor 1, it is impossible to execute the simulation function.








Fig 1) 150 Hz Output -> 224 rpm
Fig 2) 250 Hz Output -> 352 rpm
** The values are subject to change according to vehicle model or conditions

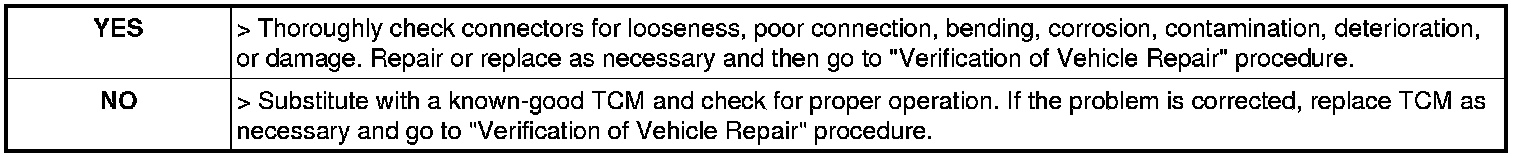

5. Is "Input Speed Sensor 1 & 2" signal value changed according to simulation frequency?
