General Information

Automatic Transaxle

P0712 Transmission Fluid Temperature Sensor 'A' Circuit Low Input - General Information

Component Location





General Description

The automatic transmission fluid (ATF) temperature sensor A is installed in the INHIBITOR SWITCH and fluid (ATF) temperature sensor B is installed in the valve body. The TCM supplies a 5 V reference voltage to the sensor, and the output voltage of the sensor changes when the ATF temperature varies.

DTC Description

This DTC is for checking sensor failure. This code is set if the temperature data from Oil Temperature sensor is fixed between -20°C and 0°C or 0°C and 20°C for 10 min. after driving a vehicle.

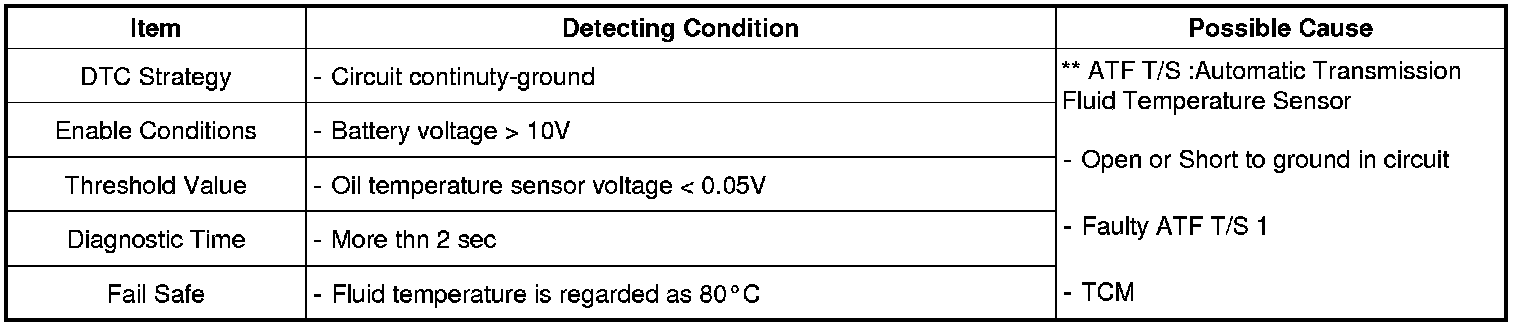

DTC Detecting Condition





Specification

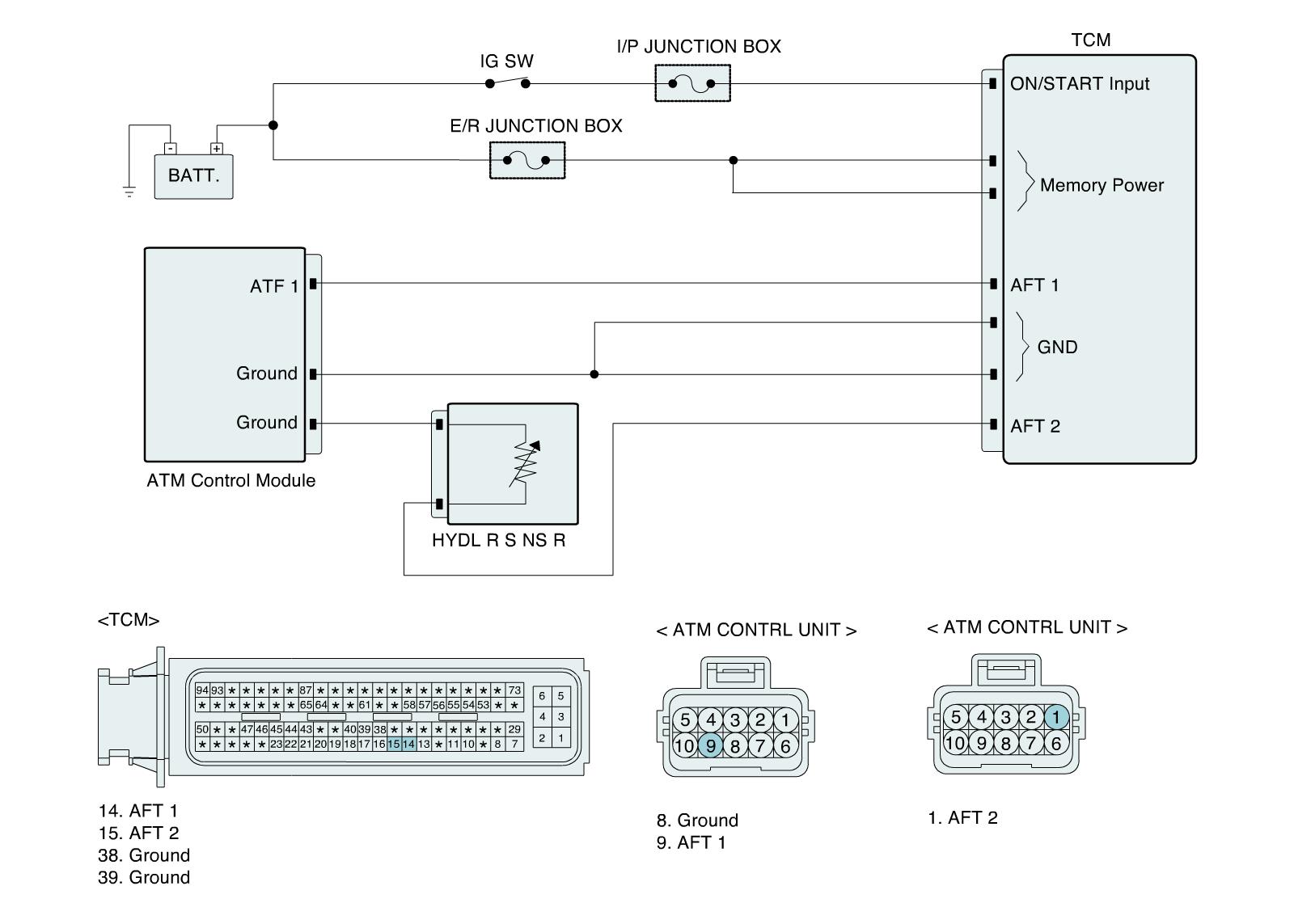

Diagnostic Circuit Diagram
