General Information

Automatic Transaxle

P0705 Transmission Range Sensor Circuit Malfunction (PRNDL Input) - General Information

Component Location





General Description

When the shift lever is in the D (Drive) position the output signal of Transaxle Range Switch is 12 V and in all other positions the voltage is 0 V. The TCM judges the shift lever position by reading all signals, for the TRANSMISSION Range Switch, simultaneously.

DTC Description

The TCM sets this code when patterns are out of specification based on the table shown below.
The TRANSMISSION Range Switch has no output signal for an extended period of time.

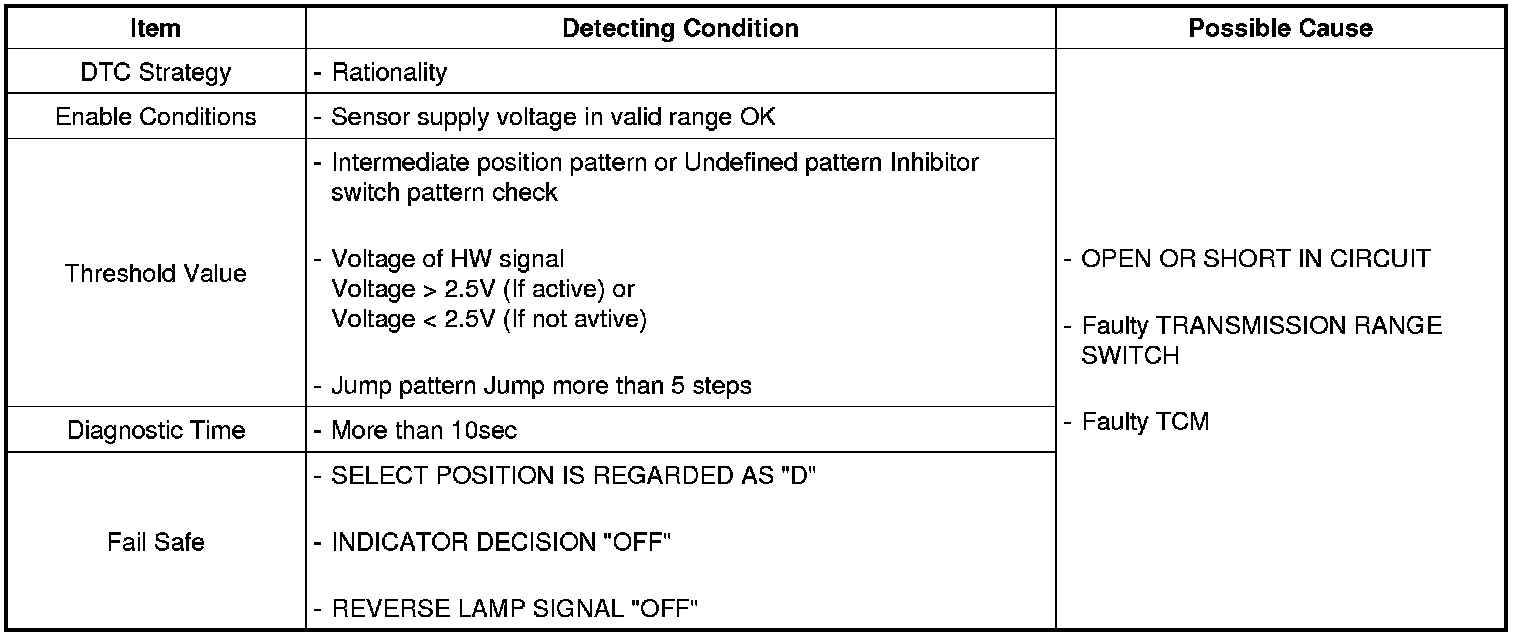

DTC Detecting Condition





Specification

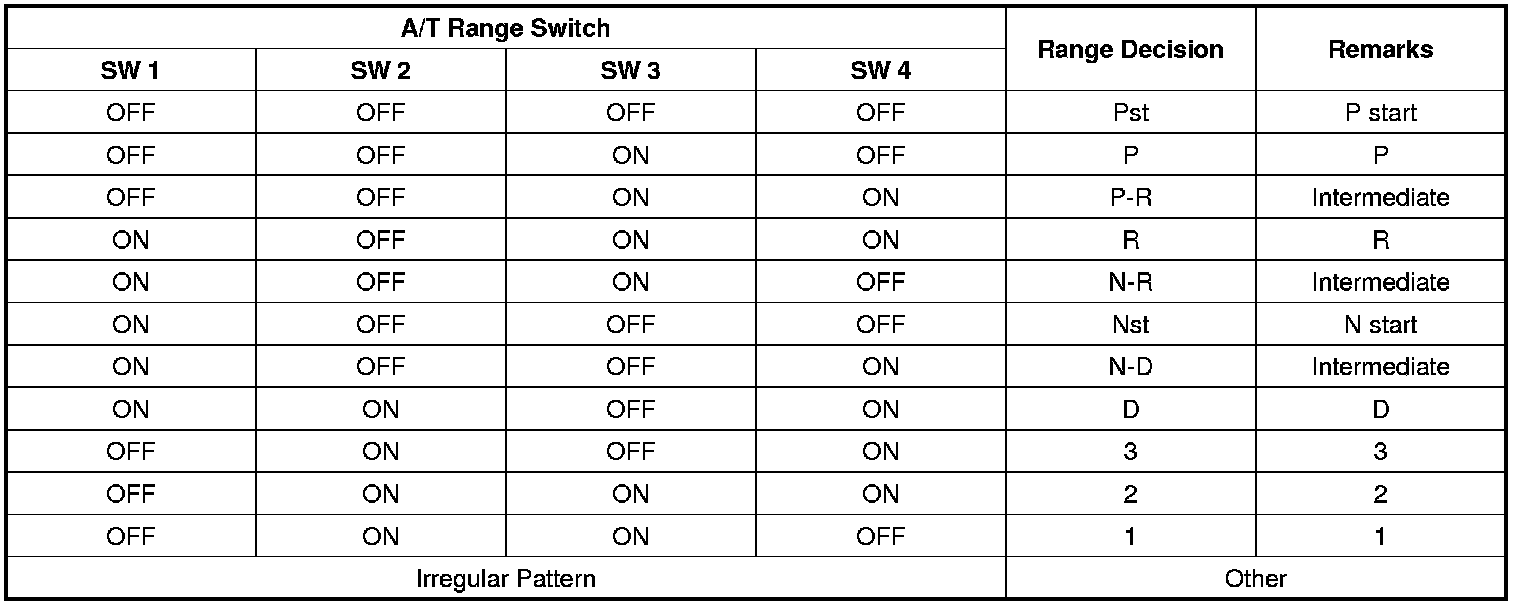

Figure 1) A/T range pattern





[OFF= 5 V, ON = 0 V]

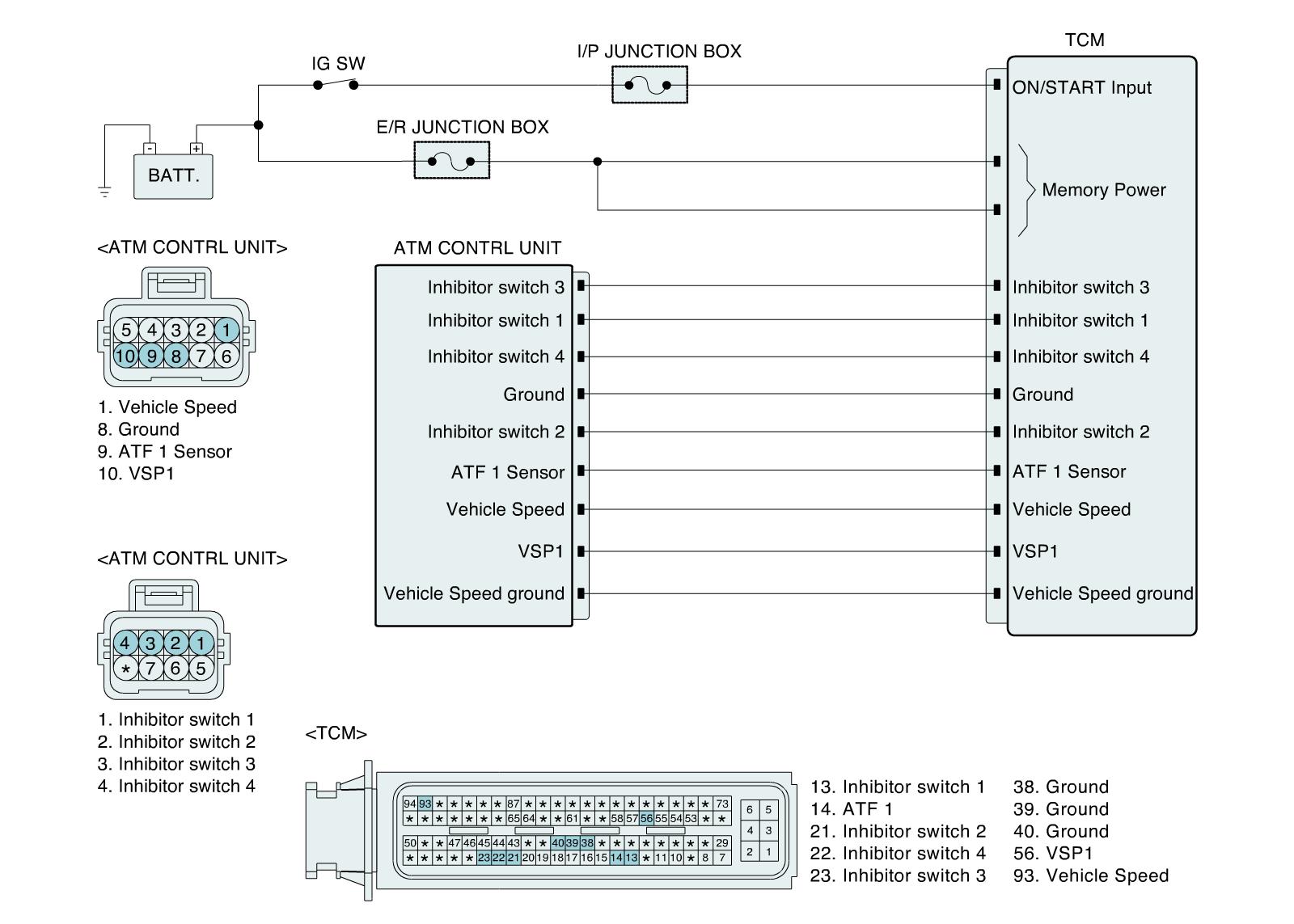

Diagnostic Circuit Diagram
