General Information

Engine Control

P06A5 Sensor Reference Voltage 'D' Circuit High - General Information

General Description

The ECM provides a 5 volt reference voltage to the Air-con Pressure Transducer (APT) and Power Steering Pressure Sensor (PSPS). The ECM monitors reference voltage deviation from the power supply circuit of the APT and PSPS.

DTC Description

The ECM provides a 5 volt reference voltage to the Air-con Pressure Transducer (APT) and PUT. The ECM monitors reference voltage deviation from the power supply circuit of the APT and PUT.

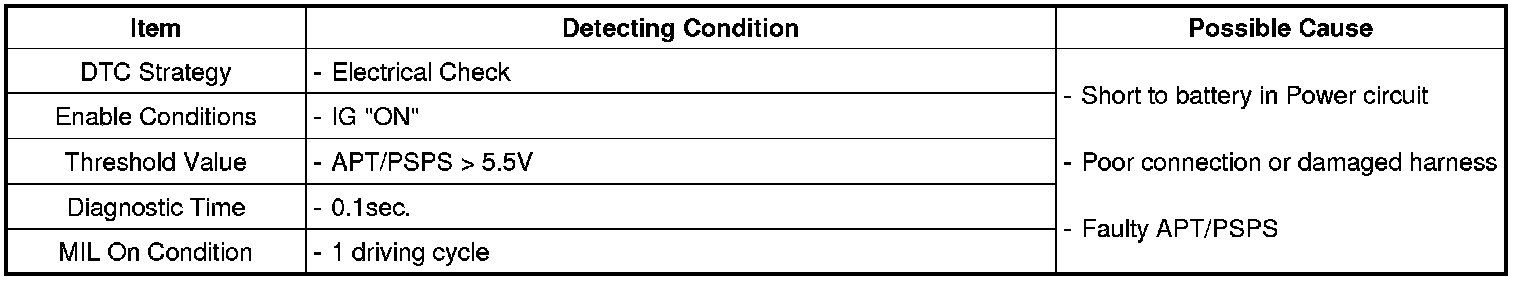

DTC Detecting Condition





(** APT : Air-Con Pressure Transducer, PSPS : Power Steering Pressure Sensor)

Diagnostic Circuit Diagram
