P0461 Fuel Level Sensor 'A' Circuit Range/Performance - Component Inspection

Component Inspection

Fuel level sender resistance check
1. IG key "OFF"
2. Disconnect main and sub fuel level sender connector.
3. Measure the resistance of each fuel level sender moving the float.

Specification : Main fuel level sender resistance : 4 - 90 Ohms
Sub fuel level sender resistance : 4.5 - 110.5 Ohms

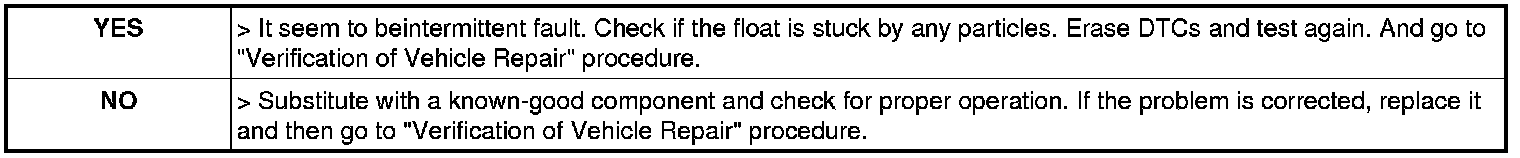

4. Is the resistance within the specification?
