Component Inspection





Engine Control

P0111 Intake Air Temperature Sensor 1 Circuit Range / Performance - Component Inspection

Component Inspection

1. Ignition "OFF"
2. Disconnect IATS connector
3. Measure the resistance between signal terminal and ground terminal of the sensor connector (Component side).

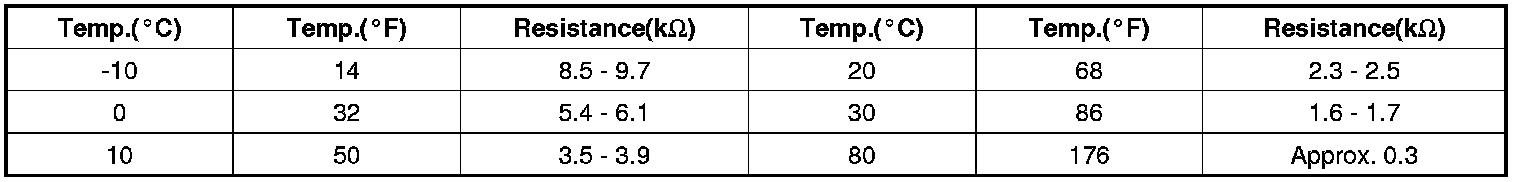

Specification :

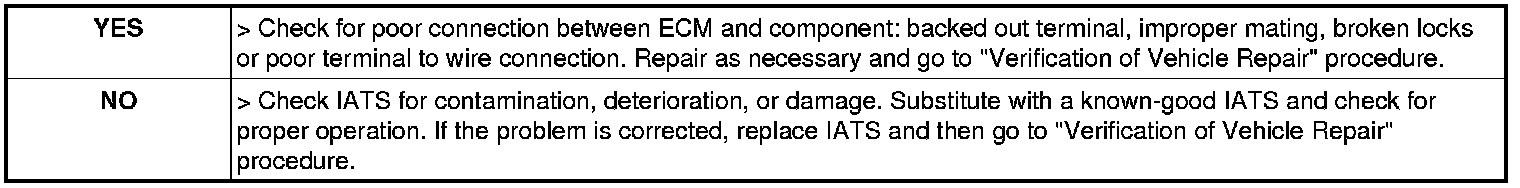

4. Is resistance within the specification?
