Component Inspection

ESC (MGH-40) (~2010. 9.14)

C2227 Excessive Temperature Of Brake Disc - Component Inspection

Component Inspection

1. Wait until the brake disc cool down sufficiently.
2. Ignition "OFF" & Engine "OFF".
3. Ignition "ON" & Engine "OFF".
4. Connect scantool and select "Diagnostic Trouble Codes (DTCs)" mode.
5. Using a scantool, Clear DTC.
6. Select "Diagnostic Trouble Codes (DTCs)" mode again.

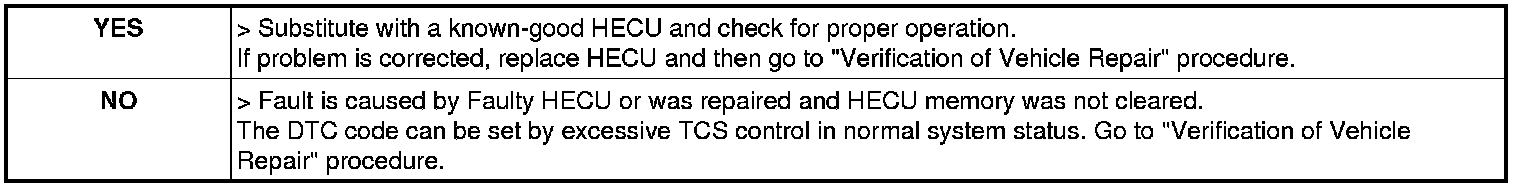

7. Are any DTCs present?
