Automatic Headlamp Leveling System

C2226 Output Voltage Short to Battery or Short to Ground - Scantool Diagnostics

Scantool Diagnostics

1. Connect scantool with Diagnostic Connector.
2. Engine "ON" and Turn on the auto head light system.
3. Check "Actuator" parameter on the scantool (It must be checked while vehicle is unloaded condition)

Specification : 80%±2%

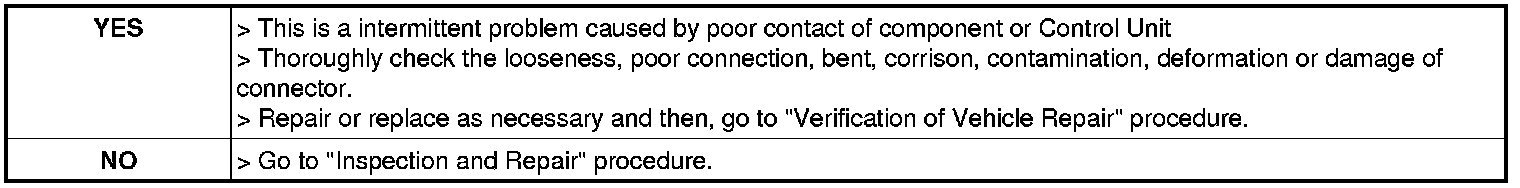

4. Is the "actuator" parameter normal?
