Engine Control Module

ECM Terminal And Input/Output signal

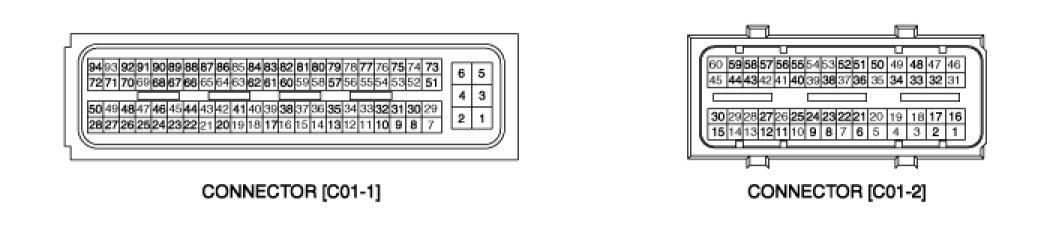

ECM Harness Connector (A/T)

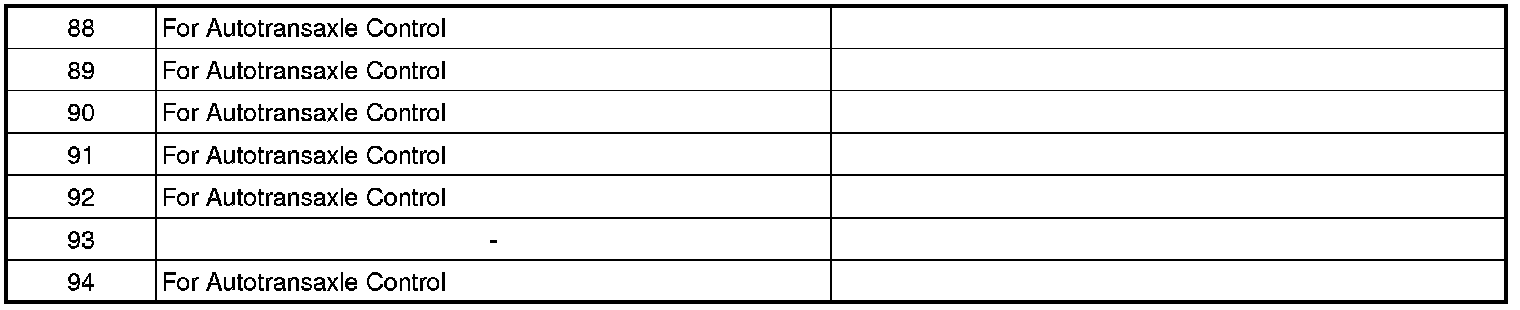

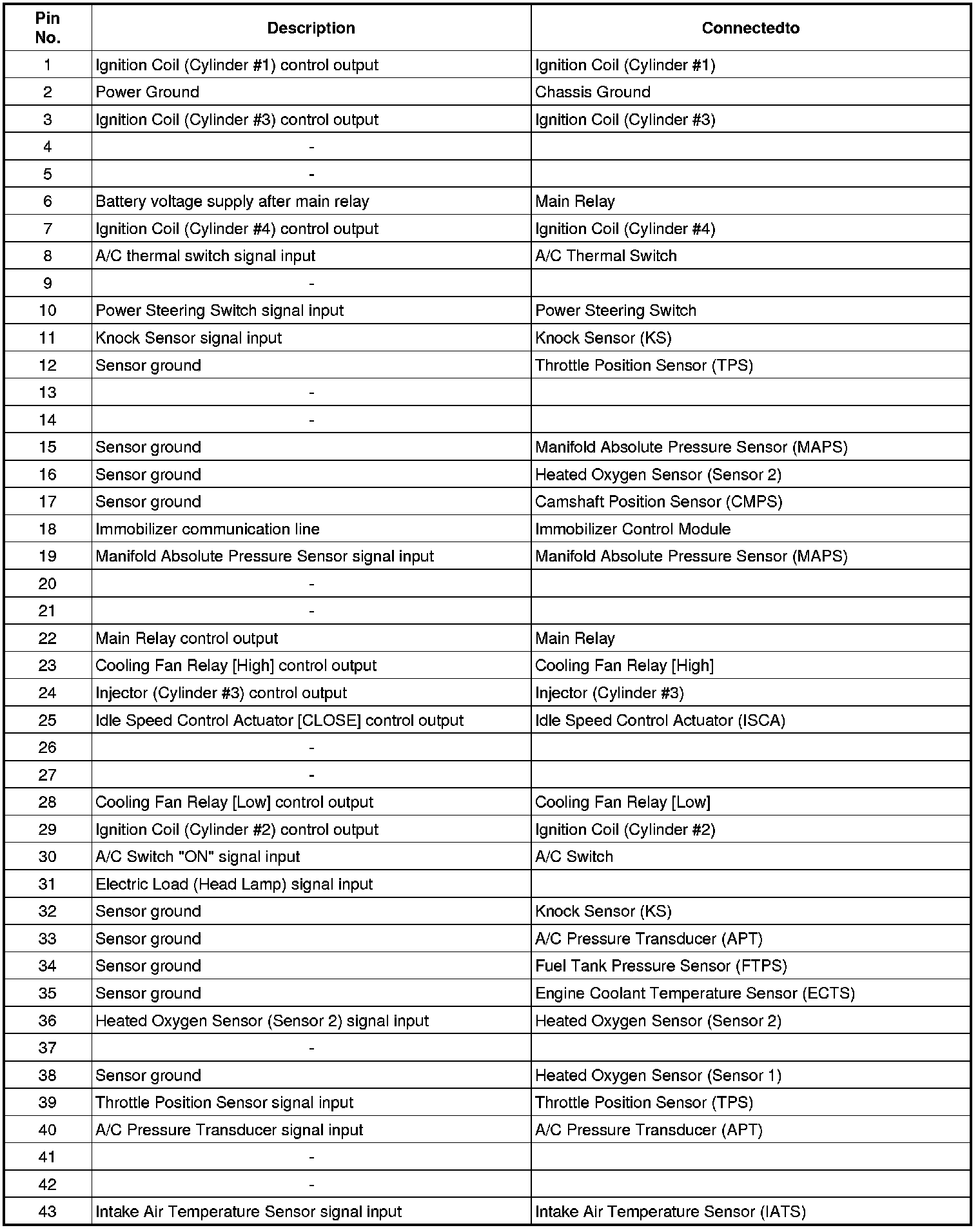

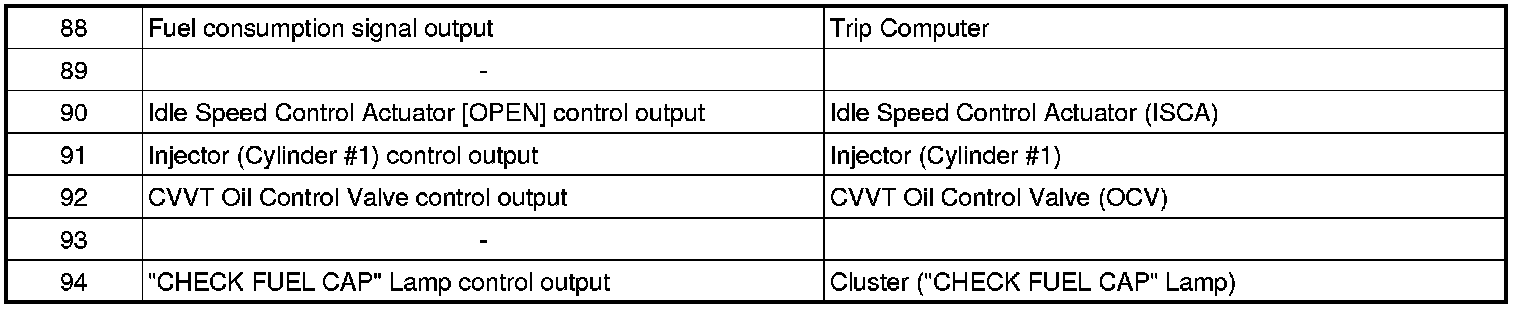

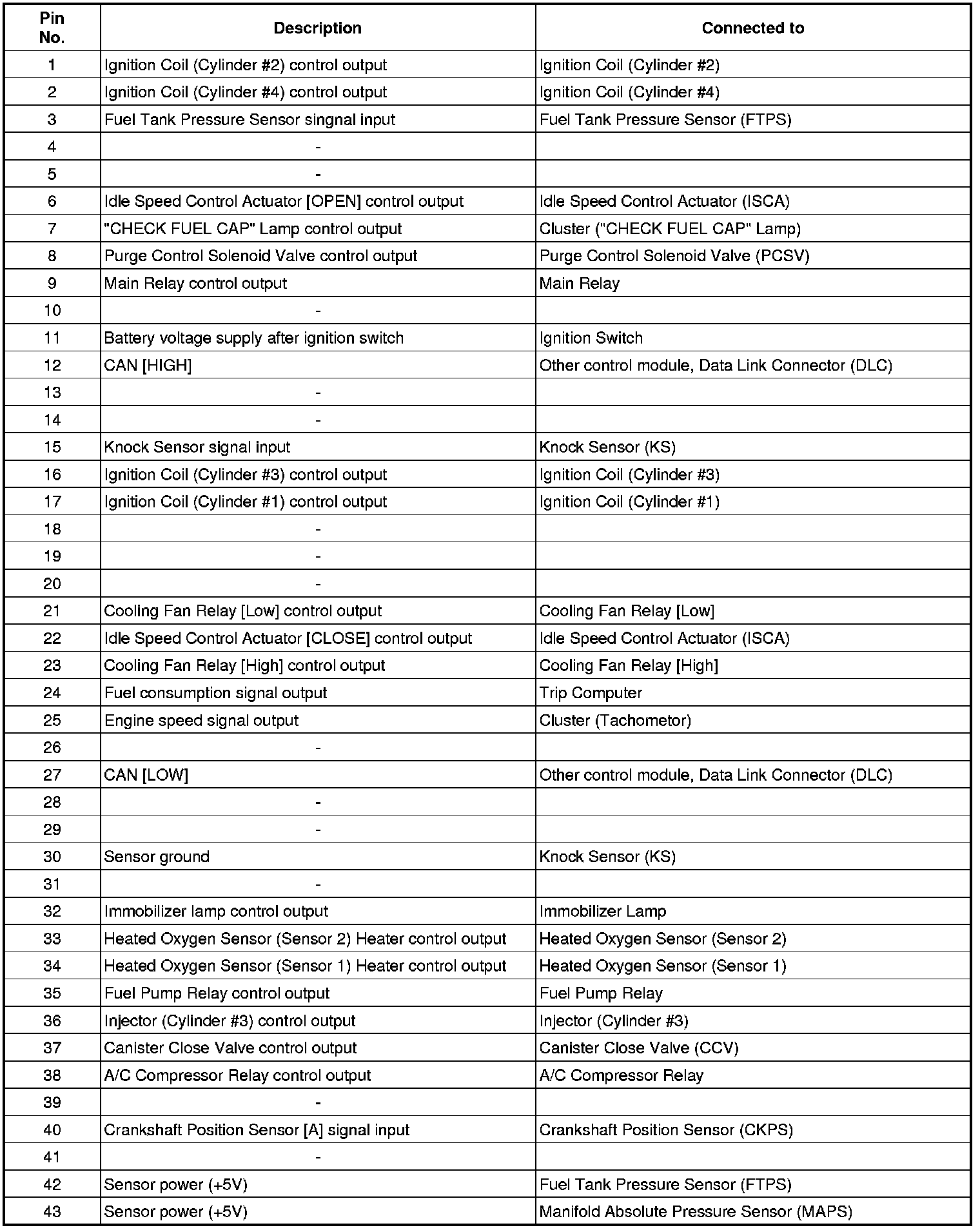

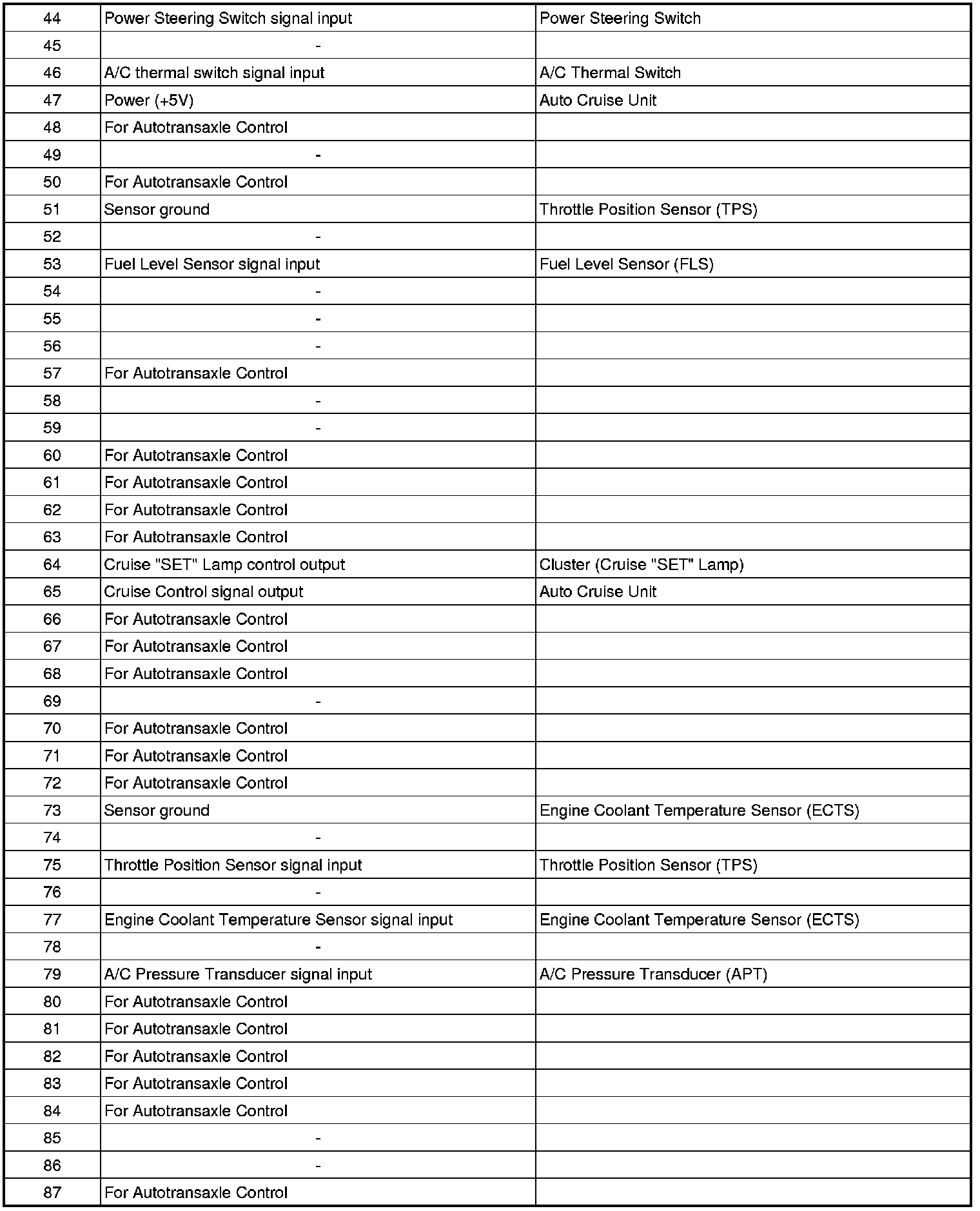

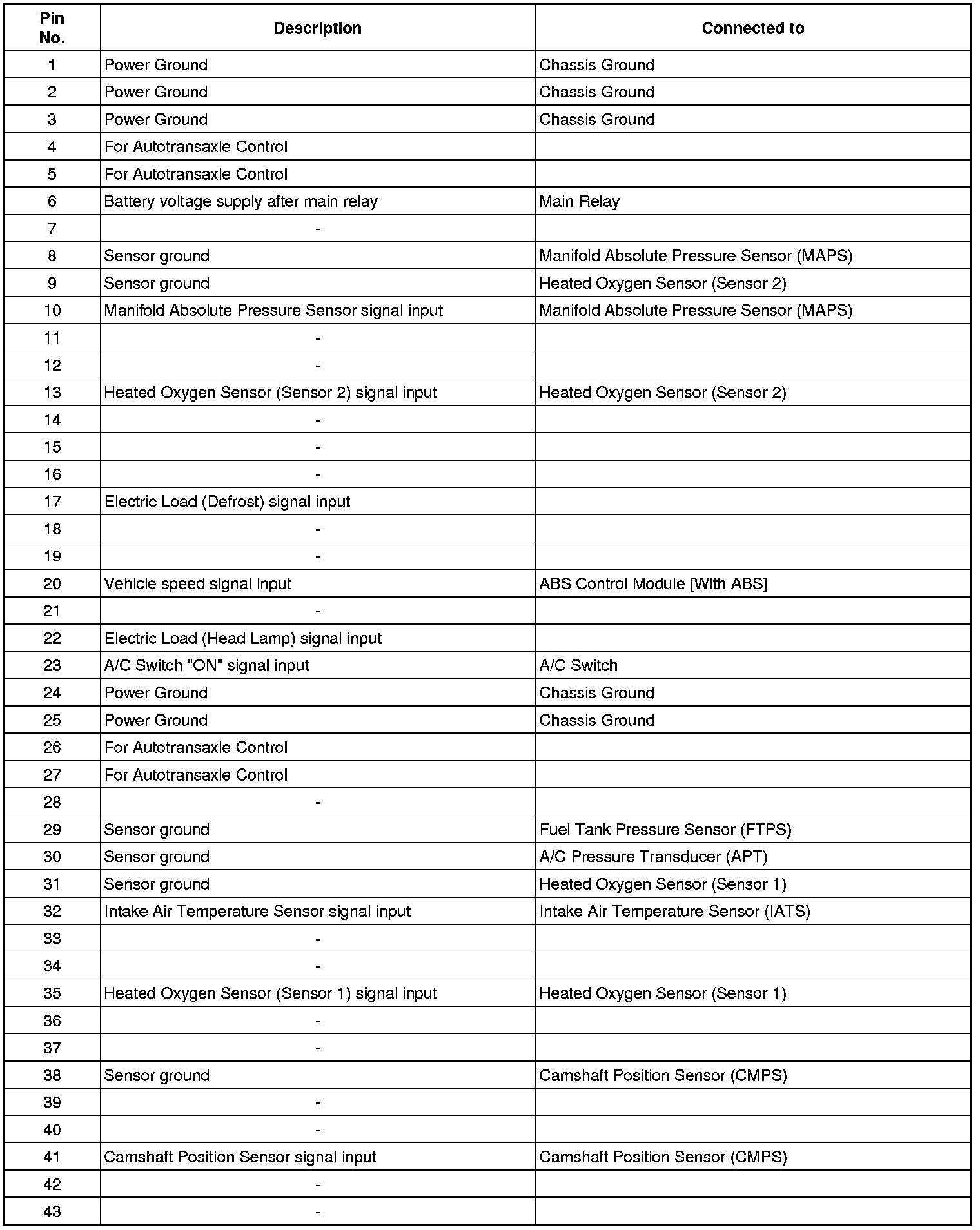

ECM Terminal Function (A/T)
Connector [C01-1]













Connector [C01-2]

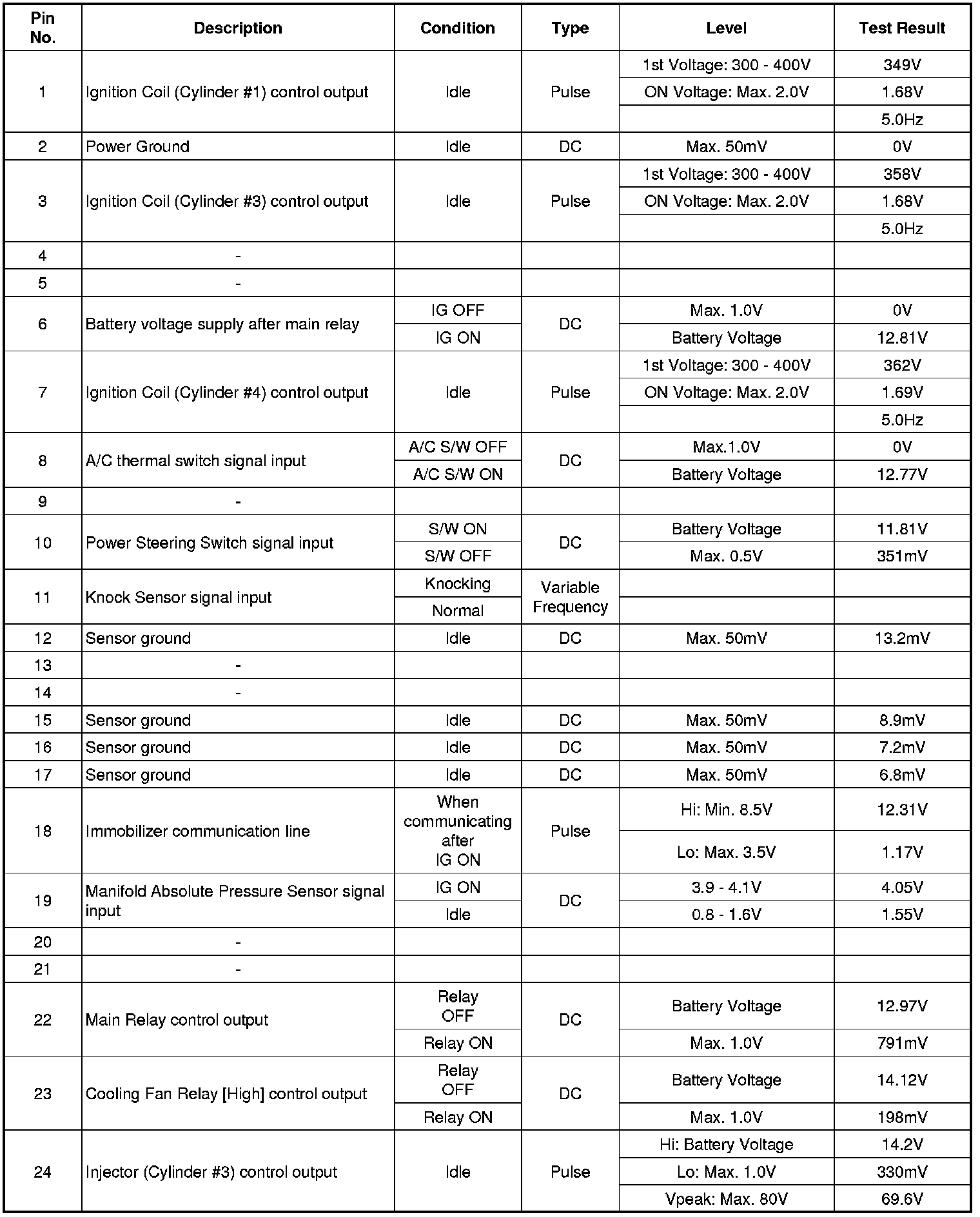

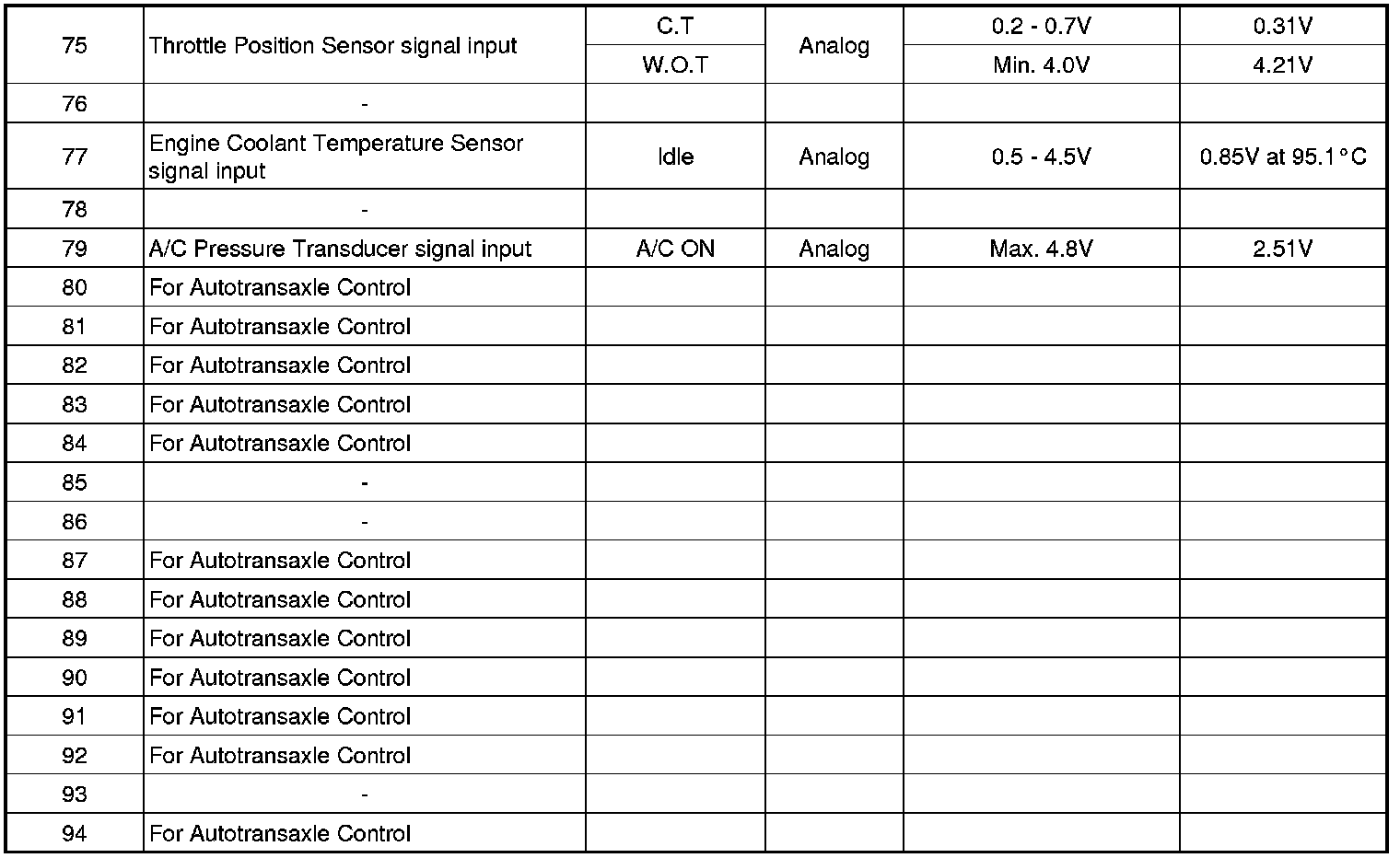

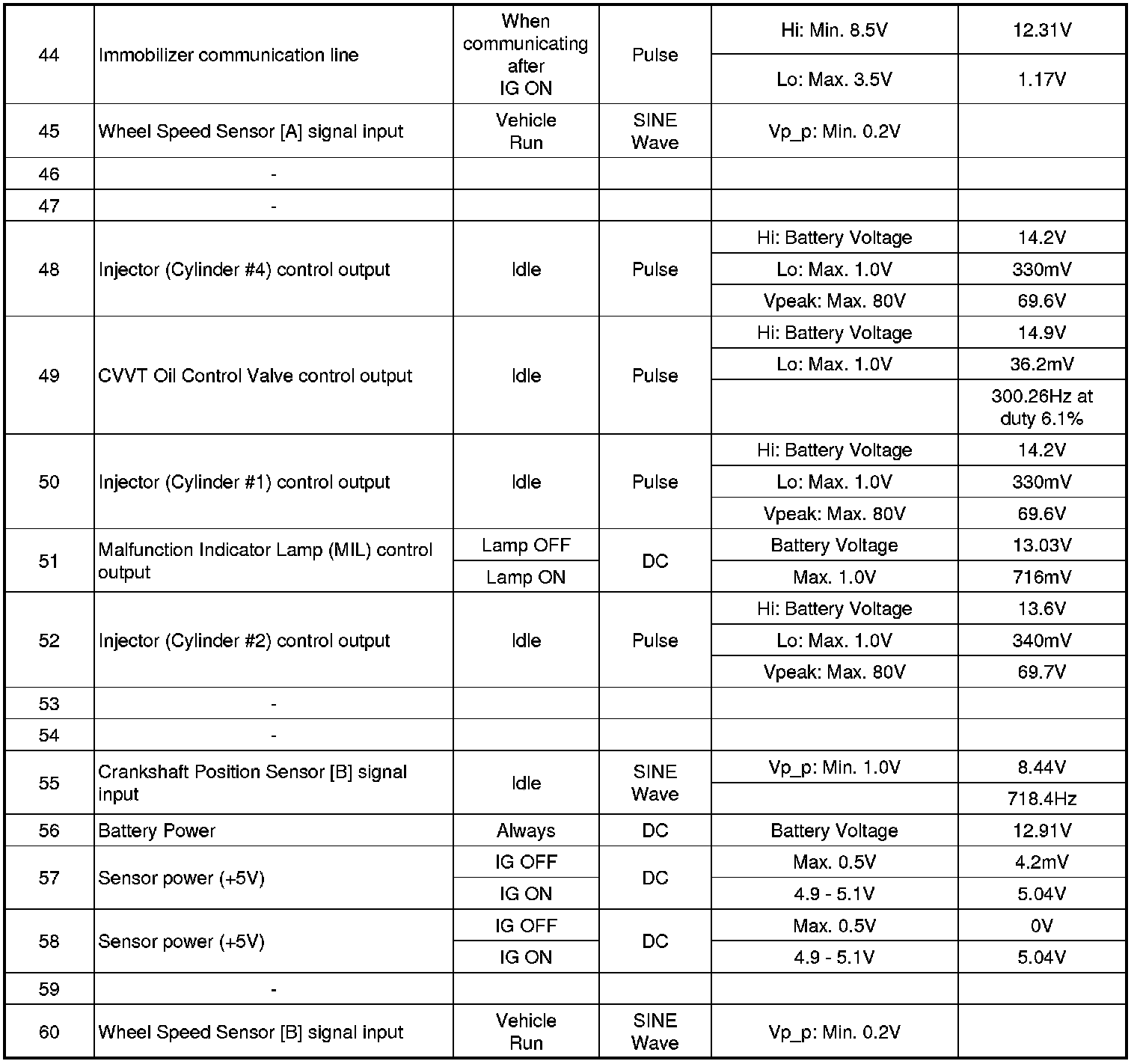

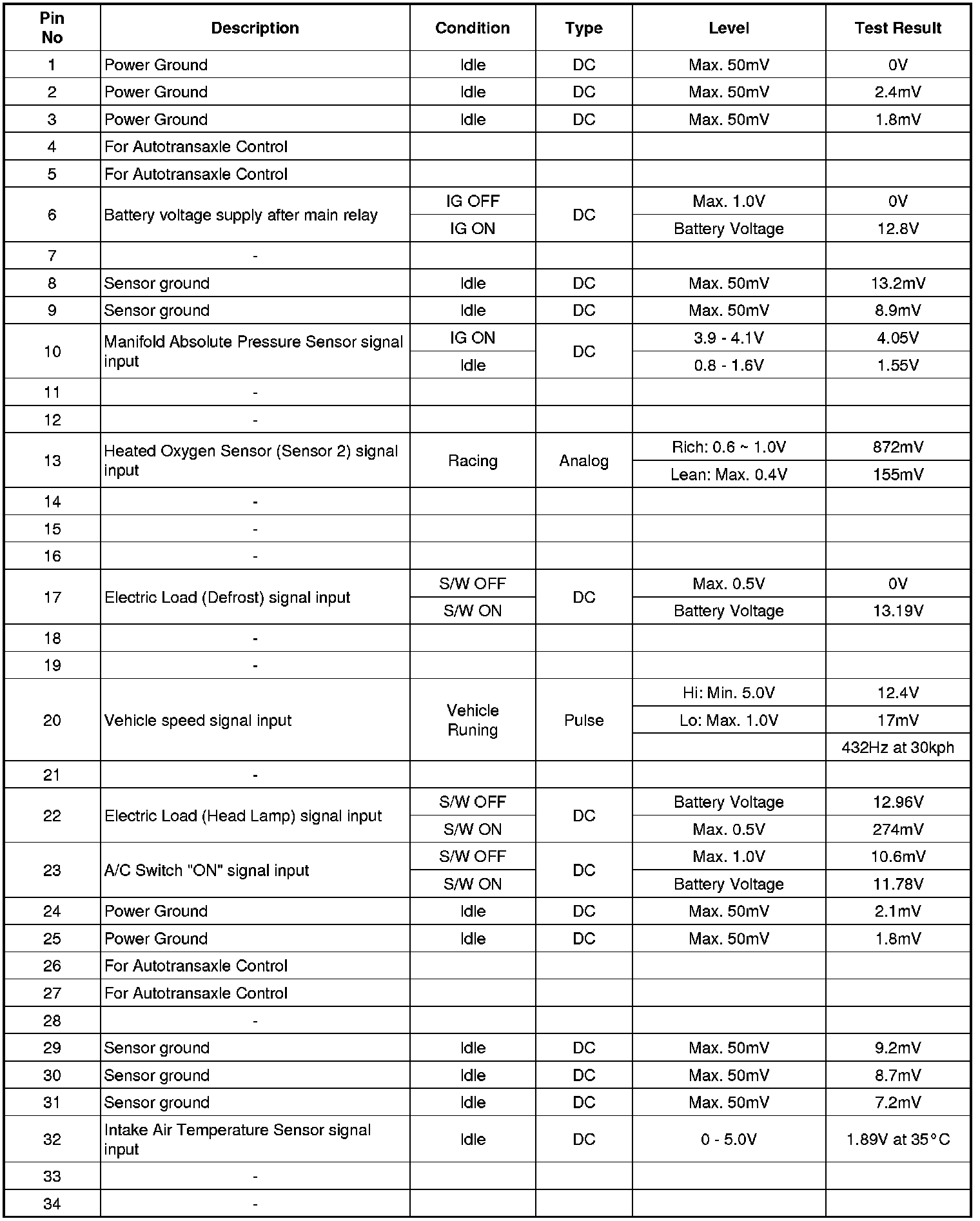

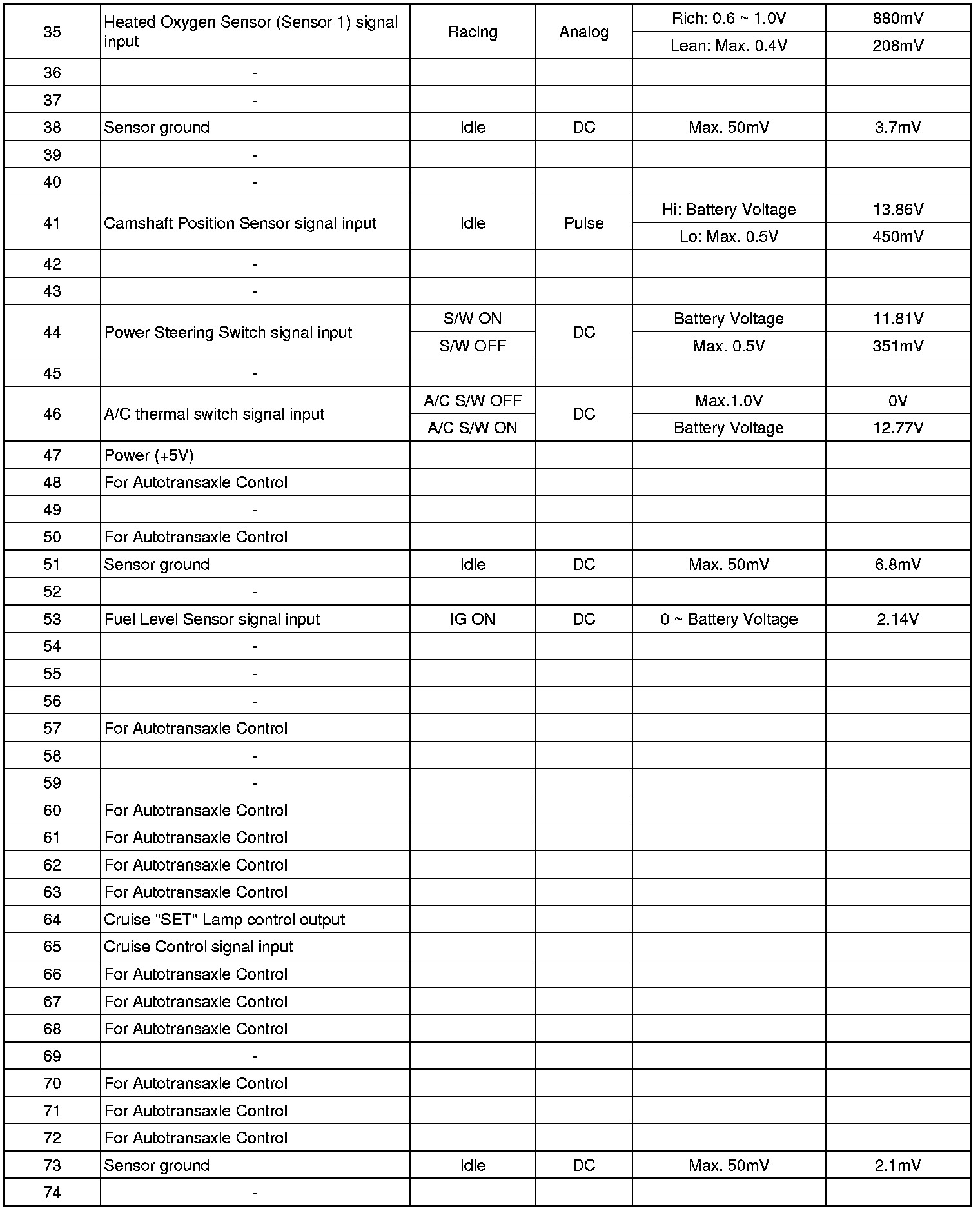

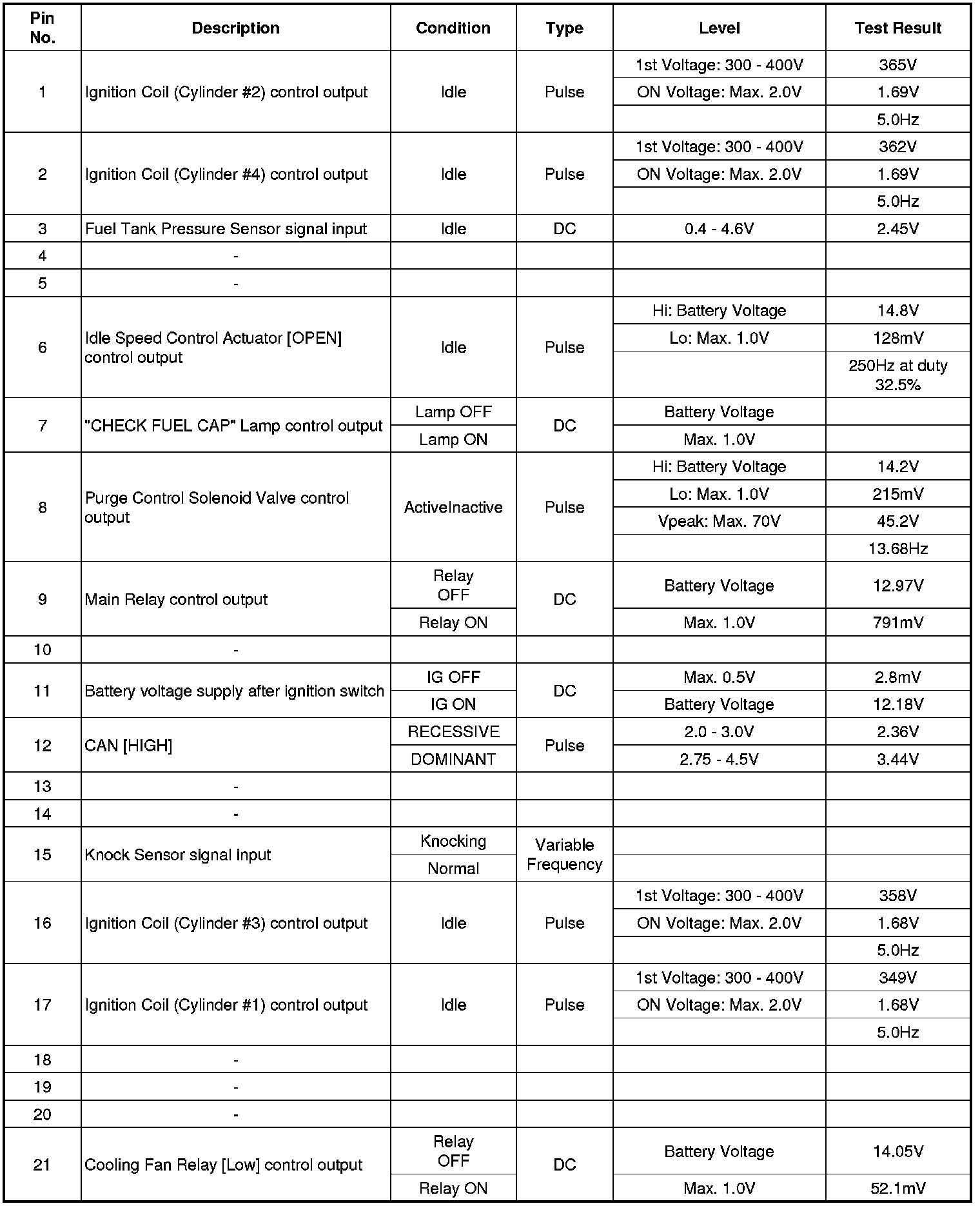

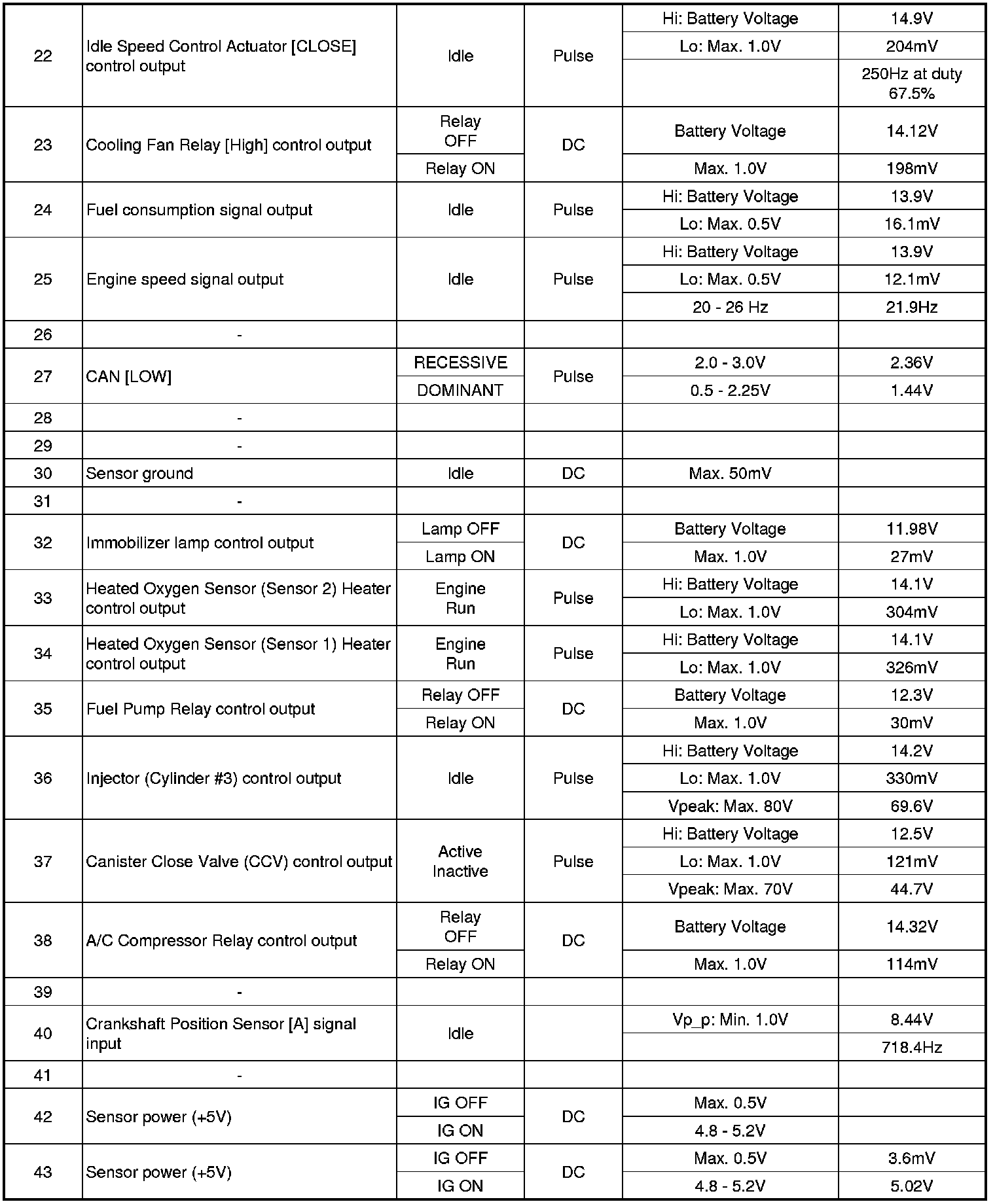

ECM Terminal Input/Output Signal (A/T)
Connector [C01-1]













Connector [C01-2]













ECM Harness Connector (M/T)

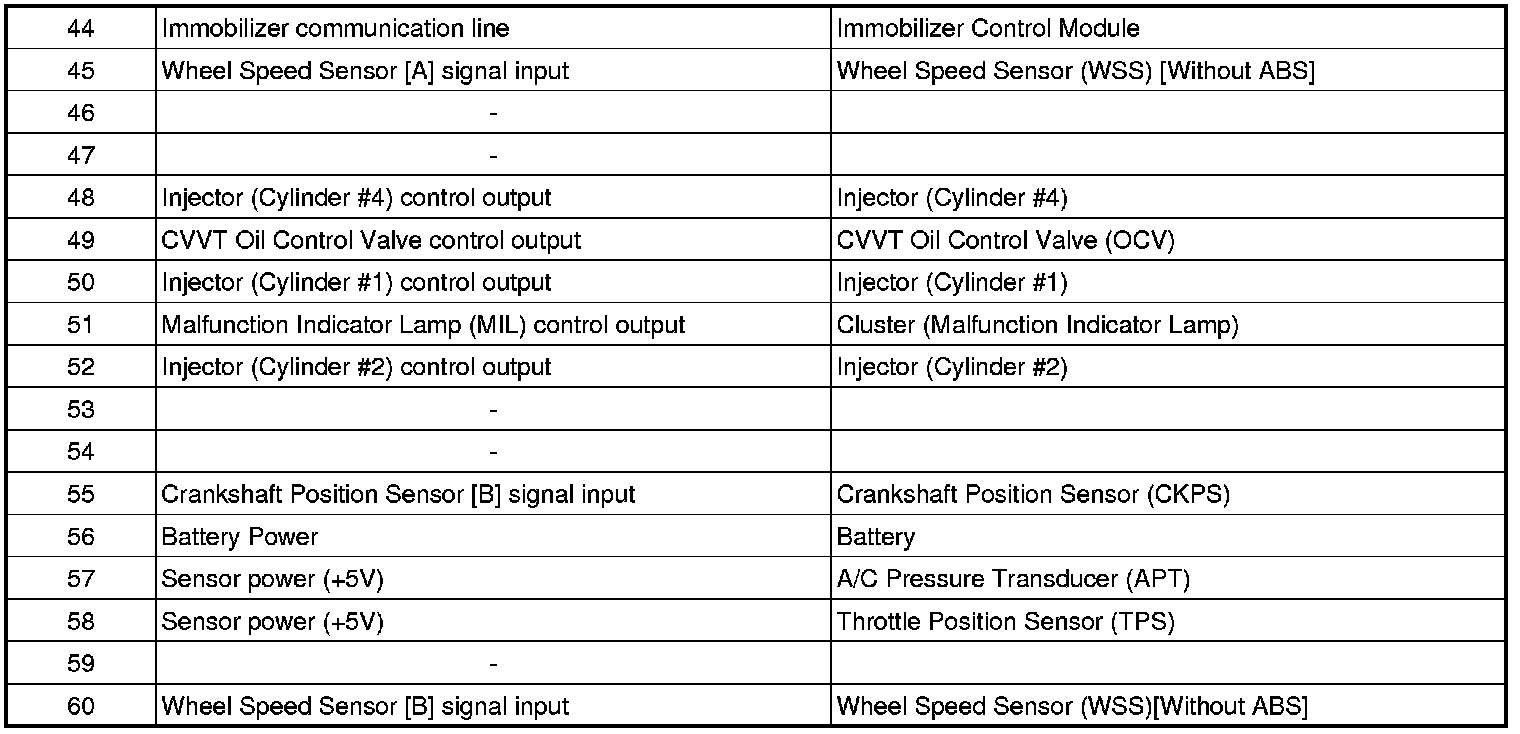

ECM Terminal Function (M/T)
Connector [C01]

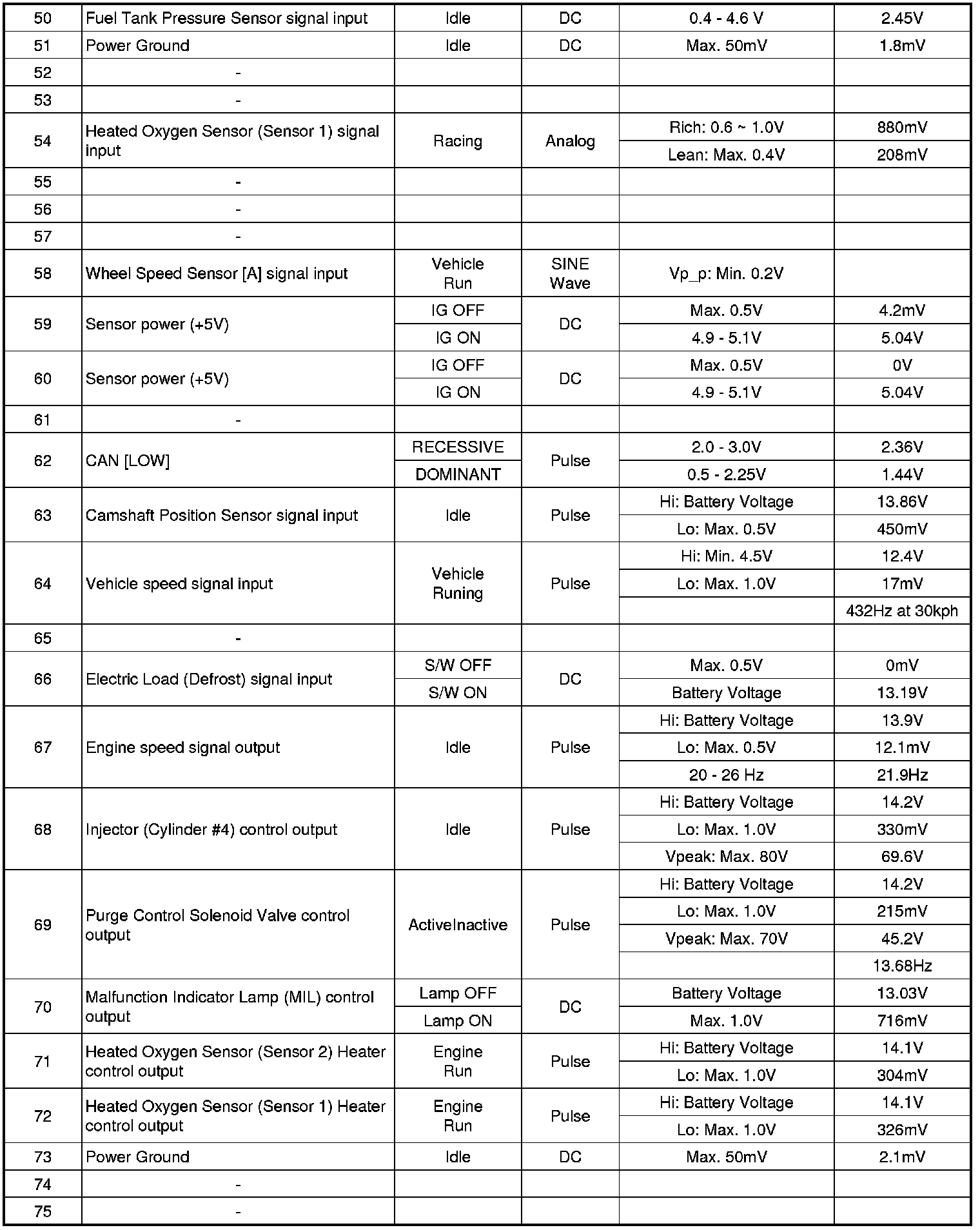

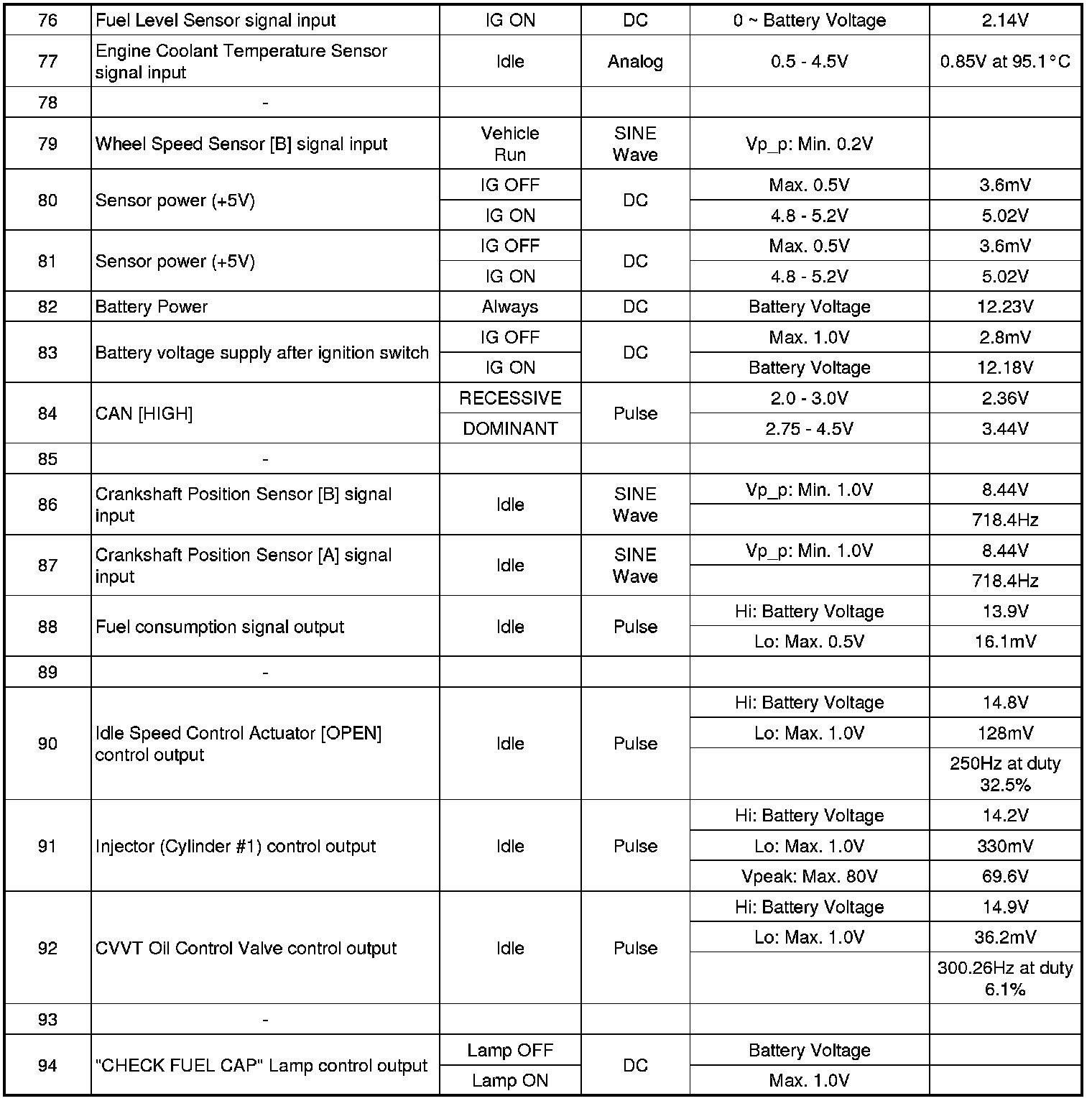

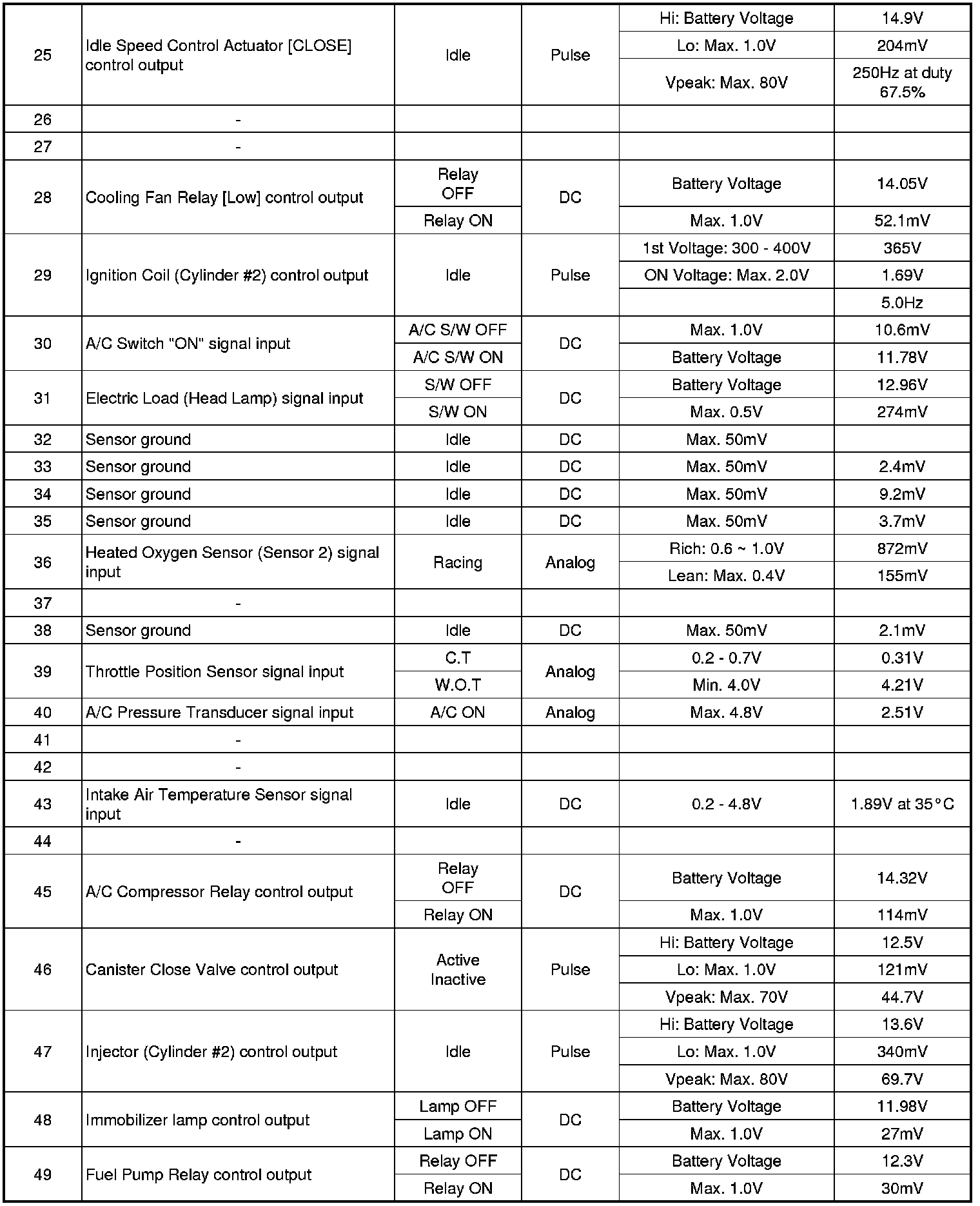

ECM Terminal Input/Output Signal (M/T)

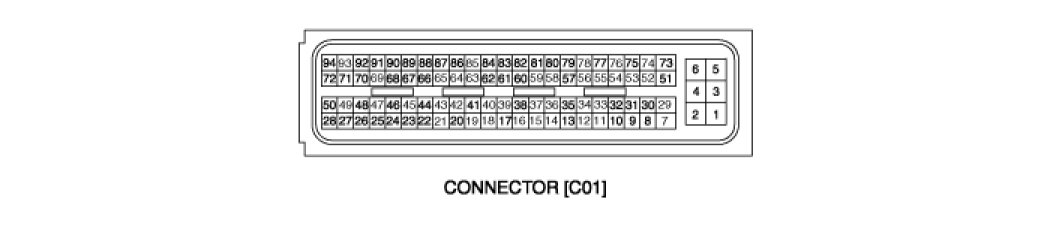

CONNECTOR [C01]
