Repair Procedures

Inspection

1. Ignition "ON"
2. A/C switch "ON".

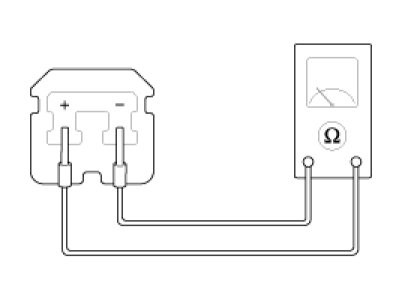

3. Using the multi-tester, Measure resistance between terminal "1" and "2" of evaporator temperature sensor.

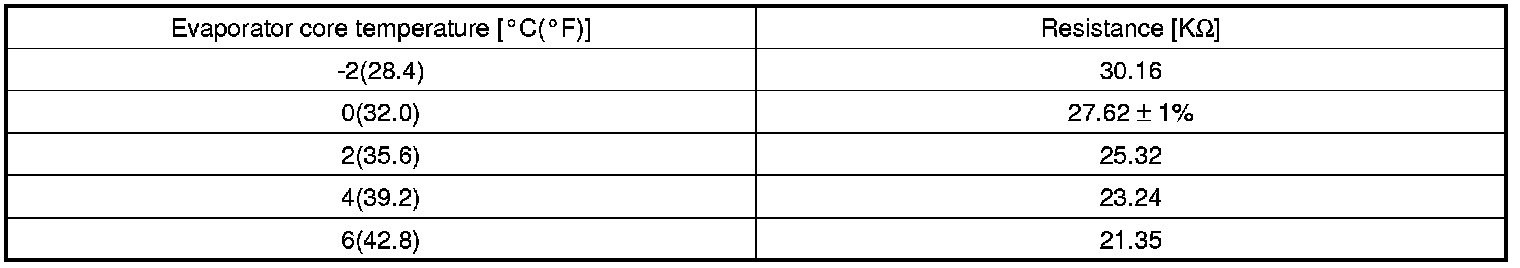

[Specification]









4. If the measured resistance is not specification, substitute with a known-good evaporator temperature sensor and check for proper operation.
5. If the problem is corrected, replace the evaporator temperature sensor.

Replacement

1. Disconnect the negative (-) battery terminal.

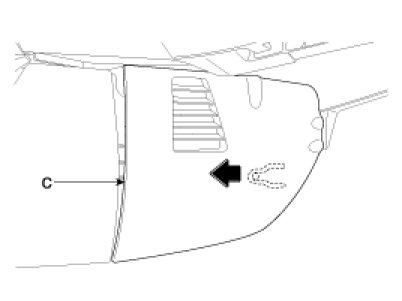

2. Remove the passenger's crash pad lower cover(C).

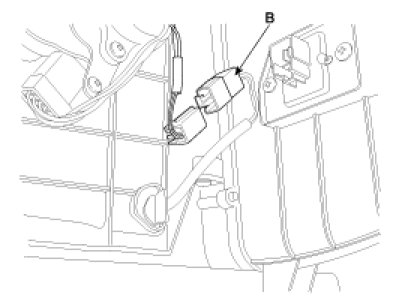

3. Disconnect the evaporator sensor connector (A).

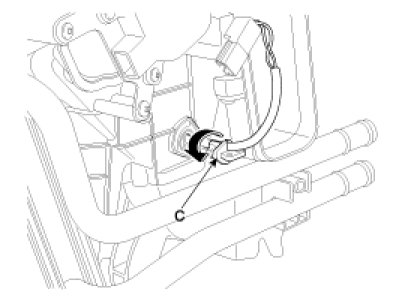

4. Remove the evaporator temperature sensor (B) by pulling it after rotating 90° in a counterclockwise direction.





CAUTION:
Take care that evaporator core pins are not bent.

5. Installation is the reverse order of removal.
