Repair Procedures

Inspection

1. Ignition "ON"
2. Blow air with changing temperature to the in car sensor air inlet. Measure sensor resistance between 2 and 4 terminals.

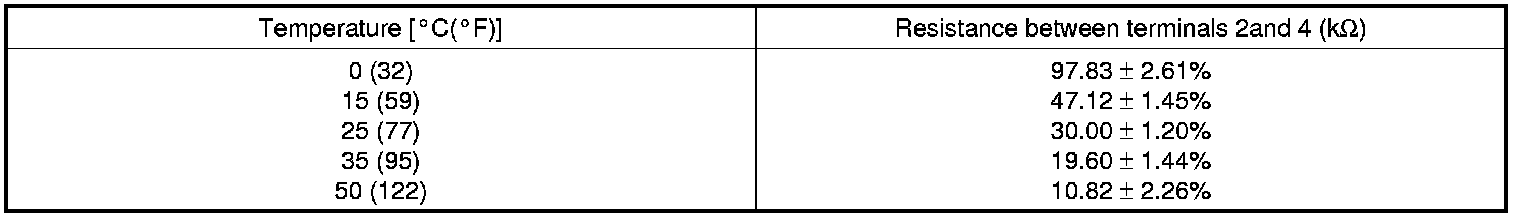

[Specification]






NOTE:
In car sensor is negative type thermistor that resistance will rise with lower temperature, and reduce with higher temperature.

Replacement

1. Disconnect the negative (-) battery terminal.

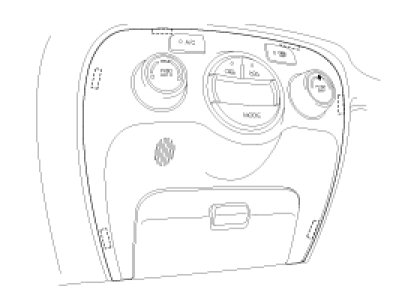

2. Remove the center facia lower panel.

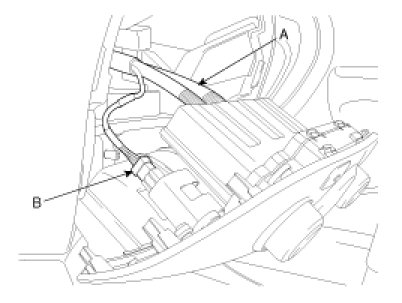

3. Remove the controller connector(A), in-car sensor connector(B).

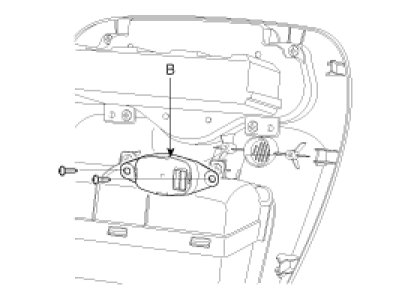

4. Loosen the mounting 2 screws and then remove the in-car sensor (B).




5. Installation is the reverse order of removal.
