Repair Procedures

Inspection

1. Ignition "ON"

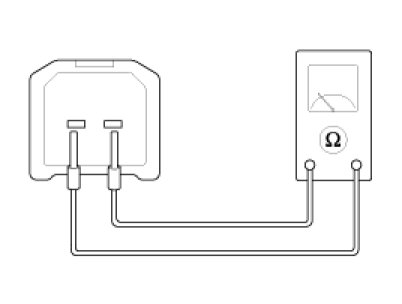

2. Using the multi-tester, Measure resistance between terminal "1" and "2" of water temperature sensor.

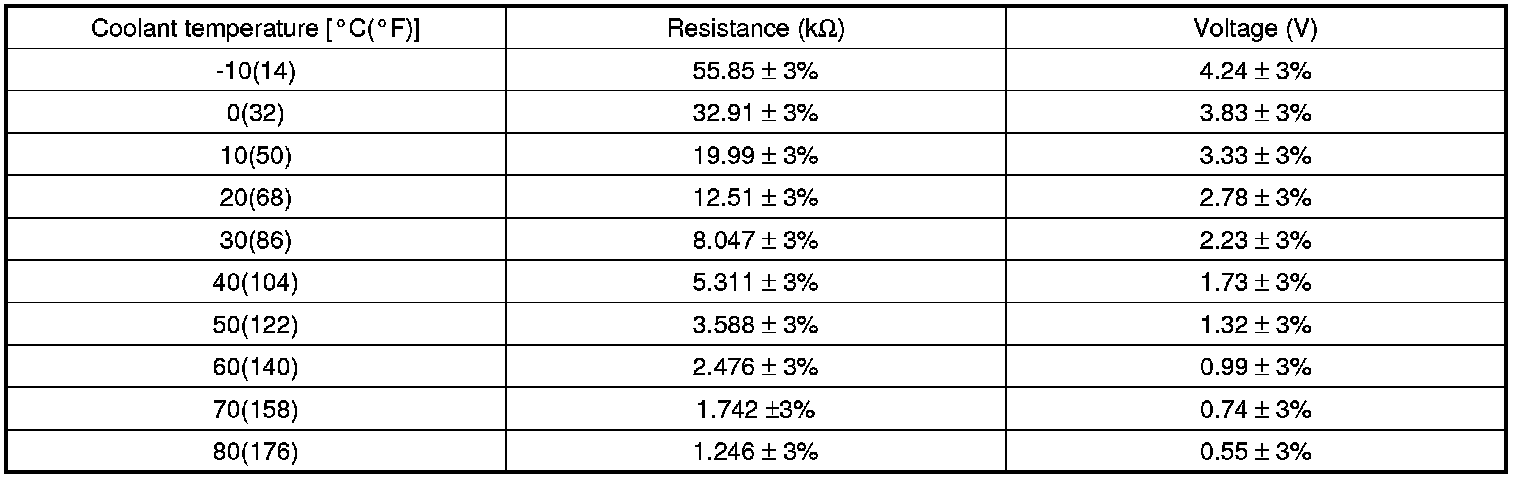

[Specification]





3. If the measured resistance is not specification, substitute with a known-good water temperature sensor and check for proper operation.
4. If the problem is corrected, replace the water temperature sensor.

NOTE:
Negative type thermistor that resistance will rise with lower temperature, and reduce with higher temperature.

Replacement

1. Disconnect the negative (-) battery terminal.

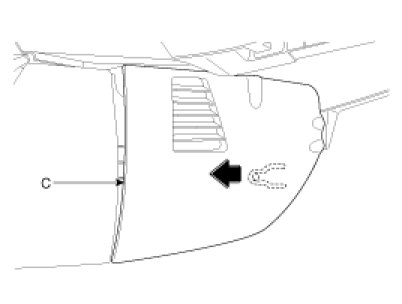

2. Remove the passenger's crash pad lower cover(C).

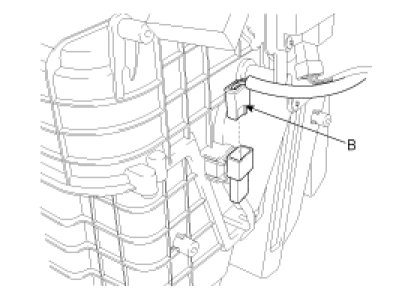

3. Disconnect the water temperature sensor connector (B).

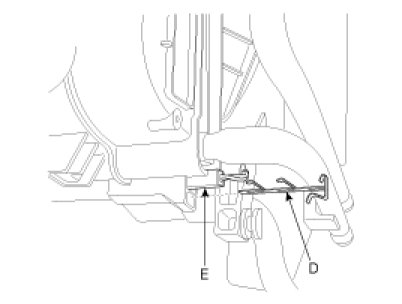

4. Pull the water temperature sensor(E) out at the heater unit with the stopper(D).




5. Installation is the reverse order of removal.

NOTE:
Take care that wire of water temperature sensor is not to be damaged.
