Components and Components Location

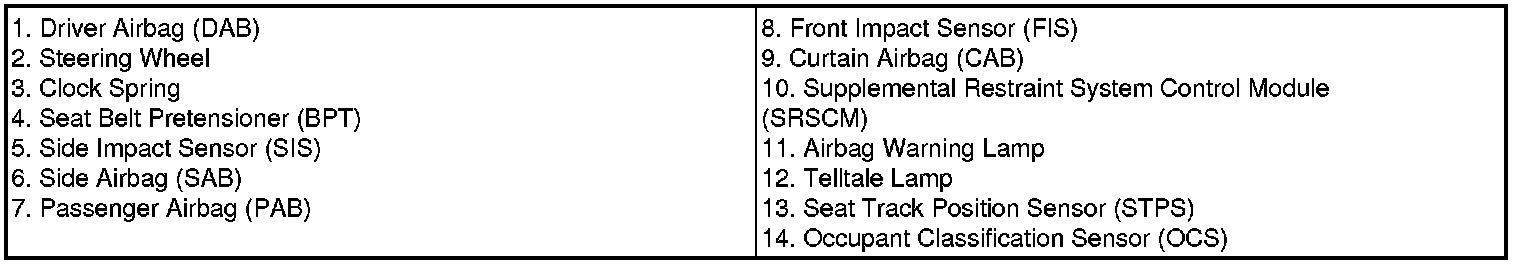

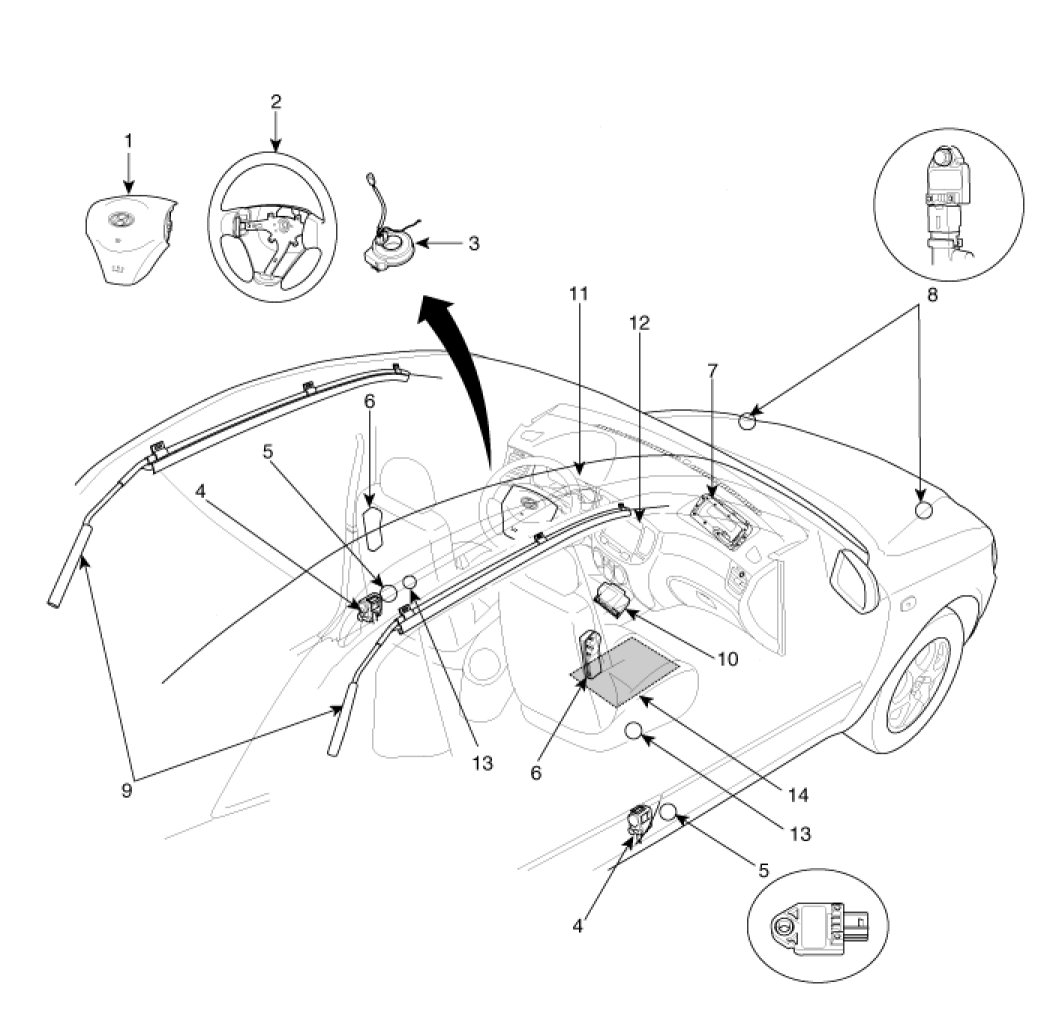

Components










Components Location

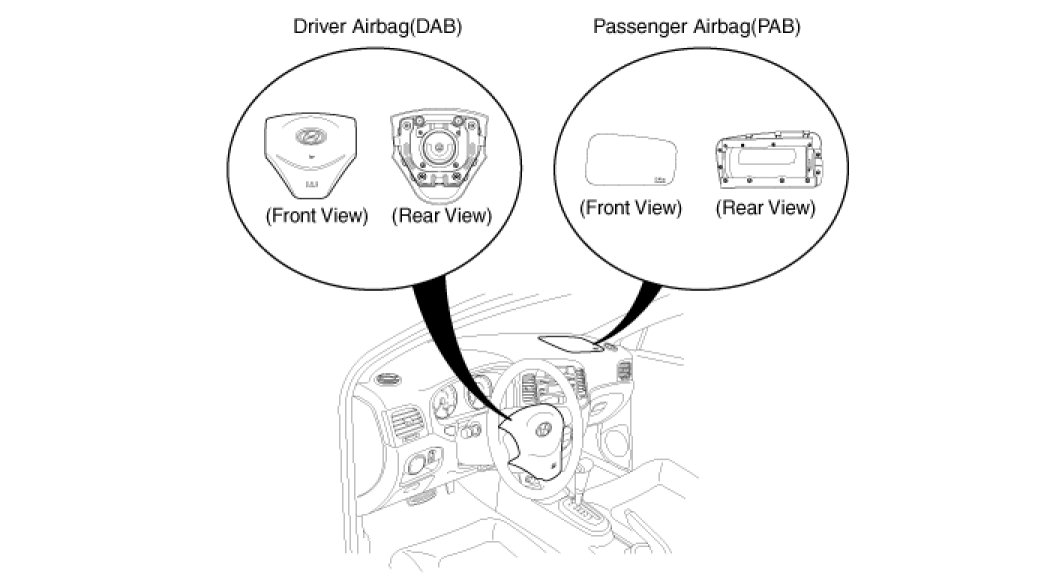

Driver Airbag (DAB) / Passenger Airbag (PAB)

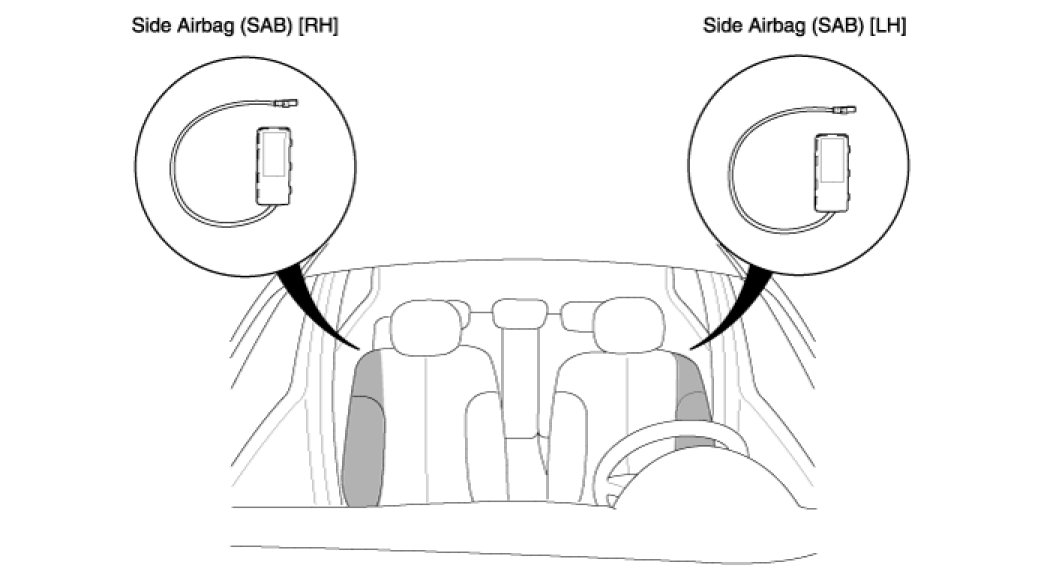

Side Airbag (SAB)





Front Impact Sensor (FIS)

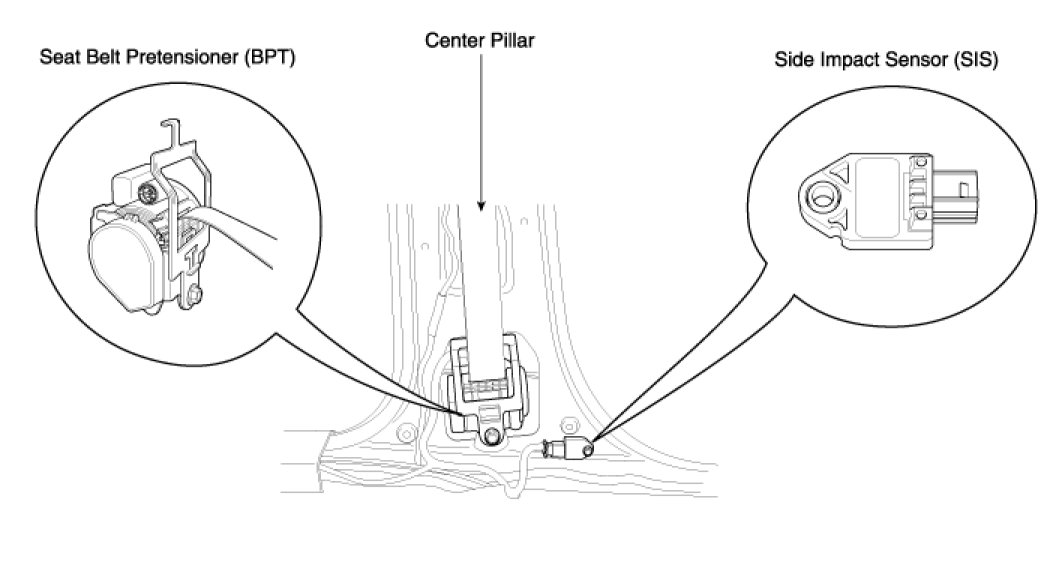

Seat Belt Pretensioner (BPT) / Side Impact Sensor (SIS)





Supplemental Restraint System Control Module (SRSCM)
