Fuel Pressure: Specifications

Fuel Pressure

Start the engine and measure the fuel pressure at idle.

Standard Value 338 ~ 348 kPa (3.45 ~ 3.55 kgf/cm2, 49.0 - 50.5 psi)

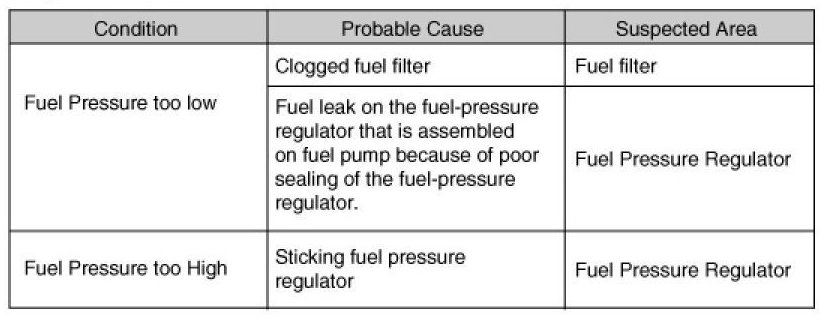

If the measured fuel pressure differs from the standard value, perform the necessary repairs using the table below.
