System Diagram

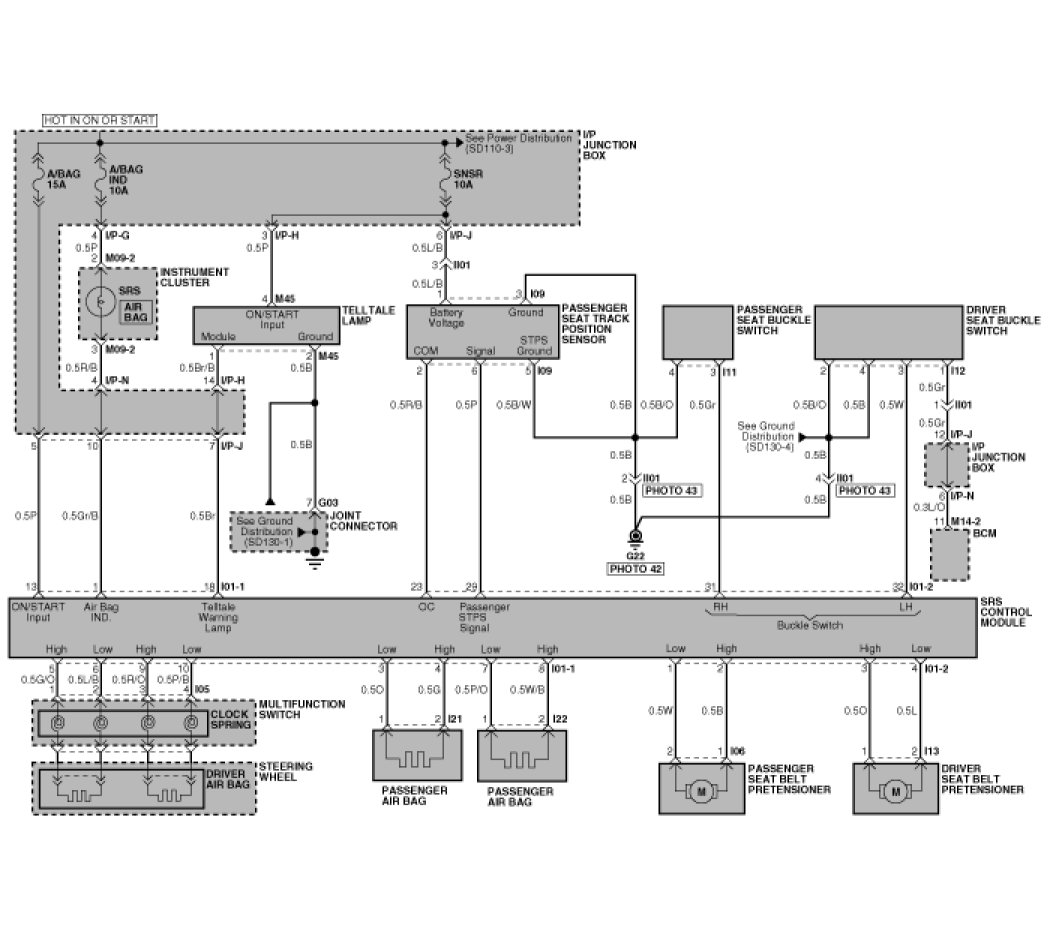

Circuit Diagram(1)

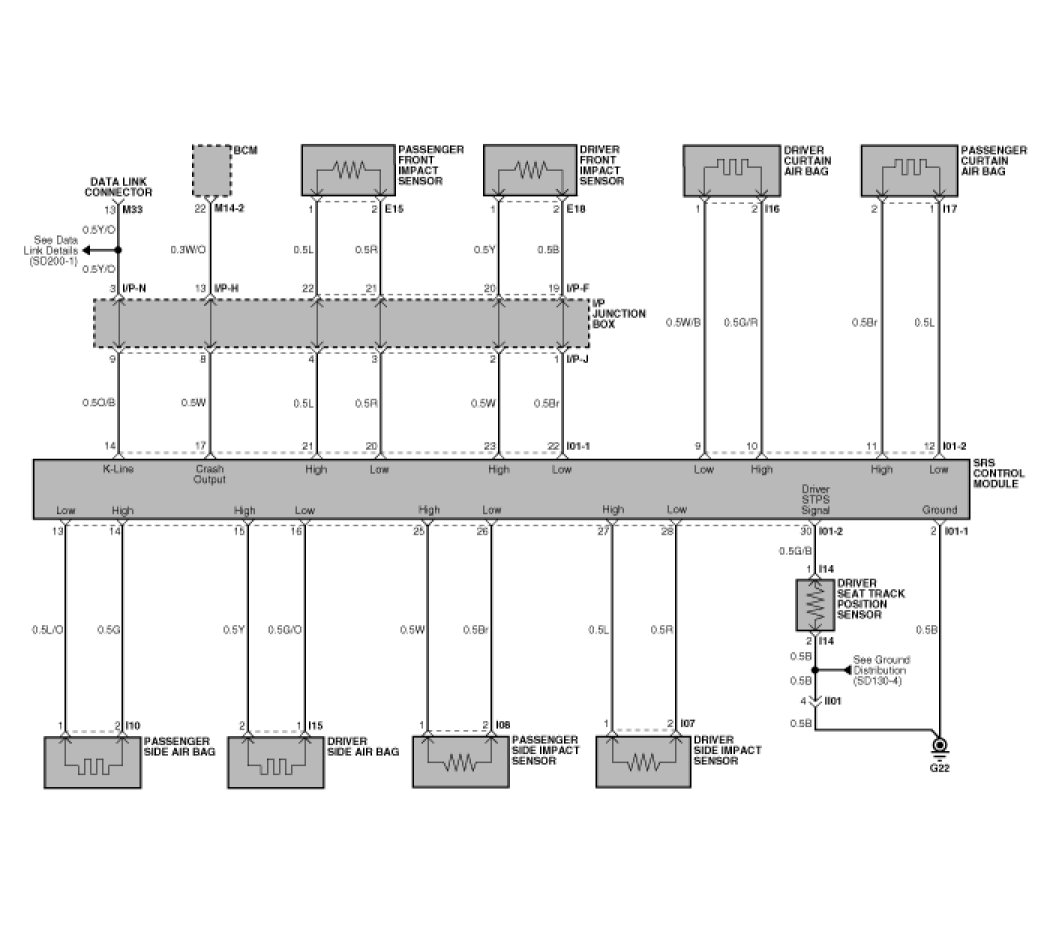

Circuit Diagram(2)

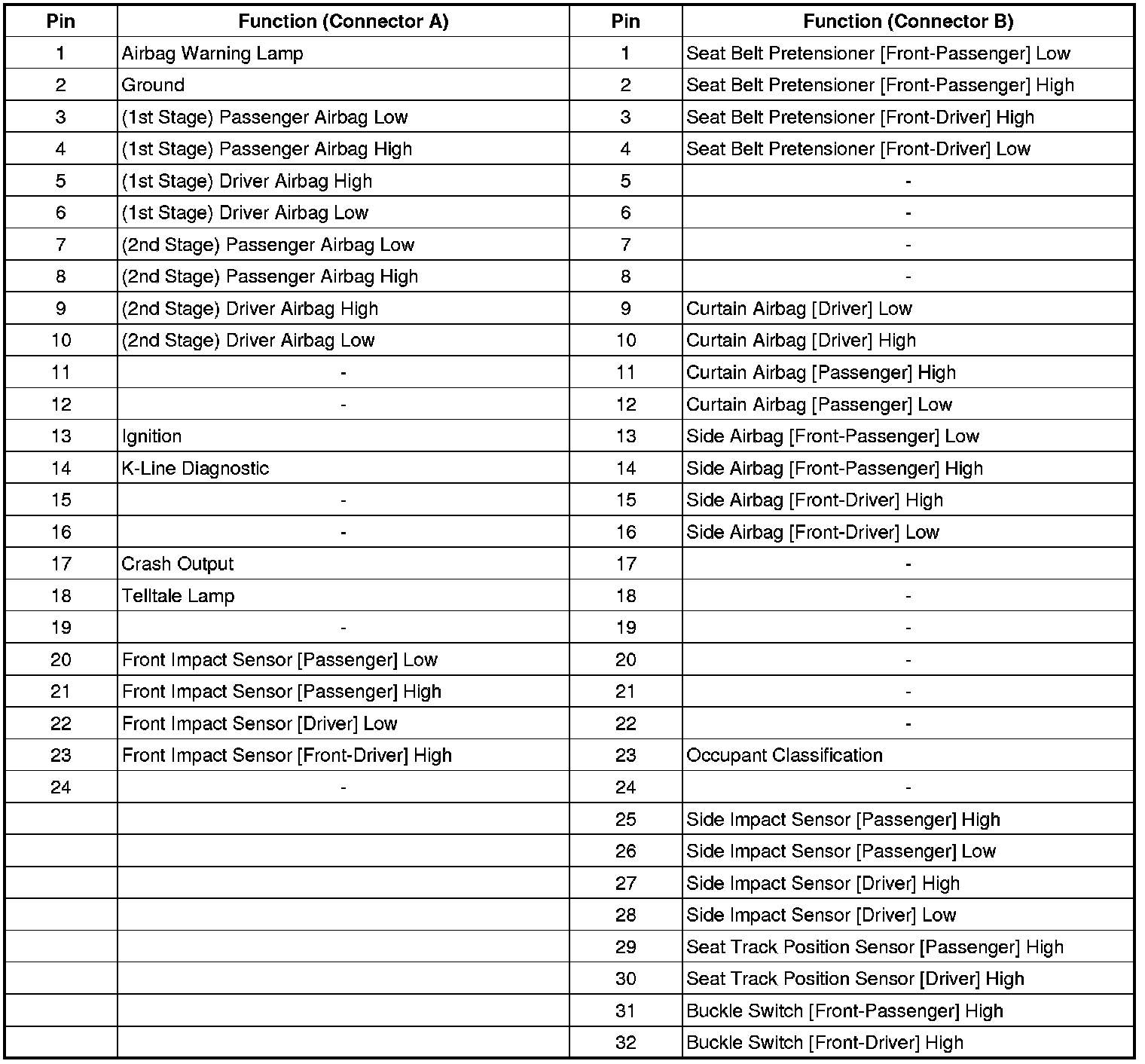

SRSCM Connector Terminal

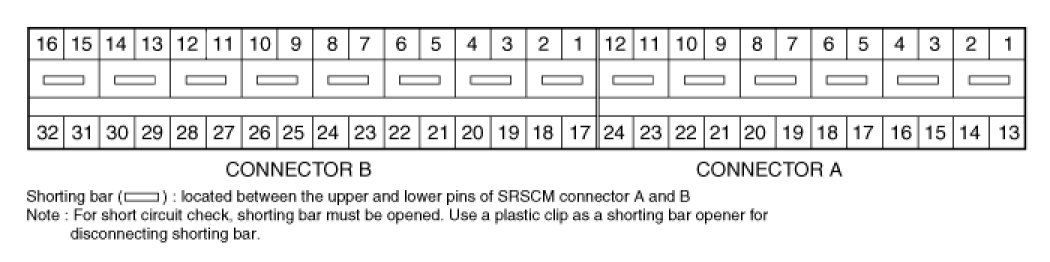

SRSCM Harness Connector
