Repair Procedures

Replacement

Cluster Fascia Panel Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Tilt the steering column down.
2. After disconnecting the trip sensor connector (A), remove the cluster facia panel (B).




3. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.

Center Fascia Panel Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

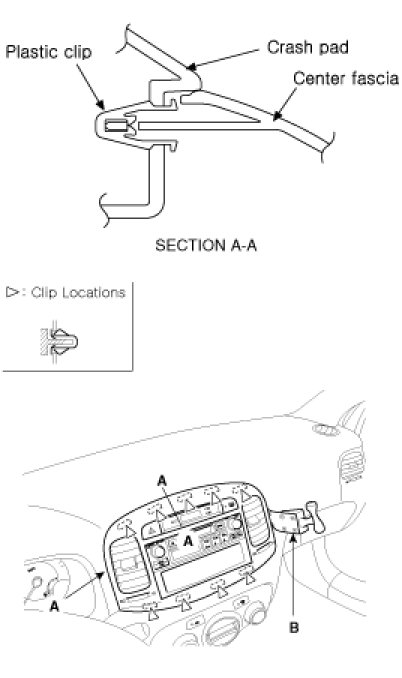

1. Put the SST (09840-1E100) (B) into the space between the center fascia and crash pad.

NOTE:
Be care not to damage the center fascia and crash pad.

2. Separate the center fascia panel (A) from the crash pad pulling the SST (09840-1E100) (B) as shown on the photo.

CAUTION:
Pull the SST slowly not to damage the center fascia panel.




3. Pull the other side of center fascia panel (A) with the SST (09840-1E100) (B) in the way of "step 2)".




4. Disconnect the connector (A), then remove the center facia panel.




5. Installation is the reverse of removal.

NOTE:
Make sure the connector is plugged in properly.

Lower Crash Pad Panel Replacement
1. Remove the side cover.
2. Remove the fuse box cover (B).
3. Loosening the crash pad lower panel mounting screw. Remove the lower crash pad panel (A).




4. Installation is the reverse of removal.

Shroud Replacement
1. Loosen the screws.
2. Remove the shroud (A).




3. Installation is the reverse of removal.

Heater Control Unit Replacement
1. Disconnect the center facia lower tray(B).
2. Remove the center facia lower panel (A).




3. Disconnect the connector (A), then remove the center facia panel (B).

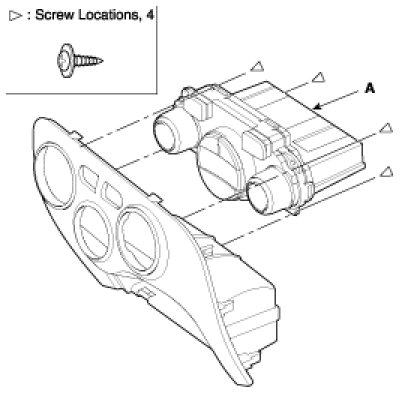

4. Loosen the heater control unit mounting screw. remove the heater control unit (A).




5. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.

Cluster Replacement
1. Remove the cluster fascia panel.
2. Loosen the mounting screws.

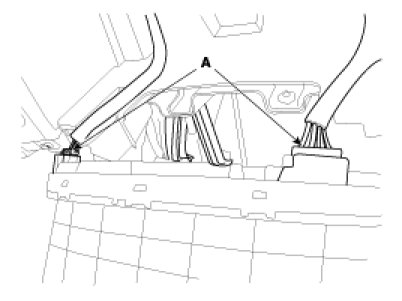

3. Disconnect the cluster connectors (A), then remove the cluster.




4. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.

Audio Assemble Replacement
1. Remove the center facia panel.
2. Loosen the screws.
3. Disconnect the audio connector and antenna cable, then remove the audio assembly (A).




4. Disconnect the audio connector (A) and antenna cable (B), then remove the audio assembly (C).




5. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.

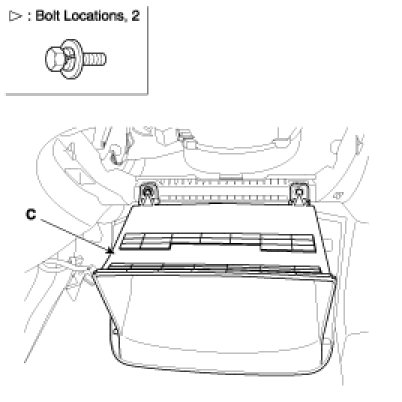

Glove Box Replacement
1. Disconnect the damper (B) from the glove box (A).




2. Remove the glove box (C).




3. Installation is the reverse of removal.

Cover Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the crash pad side cover (A).









Air Vent Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the crash pad side cover.
2. Remove the air vent (A).




3. Installation is the reverse of removal.

Crash Pad Main Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the following items.
A. Front seat assemble.
B. Cluster facia panel, cluster.
C. Lower crash pad panel.
D. Glove box.
E. Side cover.
F. Front pillar trim.
G. Center fascia upper, lower cover.
2. Disconnect the passenger's air bag connector(A).
3. Loosen the bolt`s and nuts then remove the main crash pad assembly(B).
4. Installation is the reverse of removal.

NOTE:
- Make sure the crash pad fits on to the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.





Cowl Cross Bar Assemble Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the crash pad.
2. Disconnect the connectors, after loosening the mounting bolts and nuts remove the cowl crossbar(A).
3. Installation is the reverse of removal.
