Alarm Module: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad lower panel(A) after removing side cover.

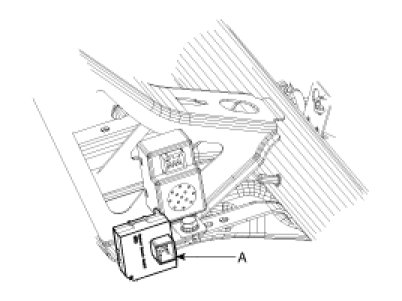

3. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) mounted on the left side cowl cross bar. after loosening a shear bolt (B).






Installation

1. Reassemble the SMARTRA unit after connecting the connector.
2. Reassemble the driver crash pad lower panel.
