Antenna, Radio: Service and Repair

Replacement

1. Remove the rear roof trim.

2. Disconnect the 1P connector (A) and antenna jack (B) from the roof antenna.
3. Remove the roof antenna after removing a nut.




4. Installation is the reverse of removal.

Inspection

Antenna Cable
1. Remove the antenna jack from the audio unit and antenna.

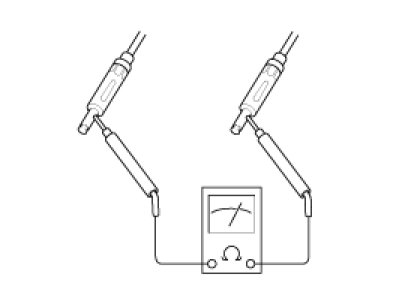

2. Check for continuity between the center poles of antenna cable.




3. Check for continuity between the outer poles of antenna cable. There should be continuity.




4. If there is no continuity, replace the antenna cable.
5. Check for continuity between the center pole (A) and outer pole (B) of antenna cable. There should be no continuity.
6. If there is continuity, replace the antenna cable.
