Windshield Washer Motor: Service and Repair

Removal

CAUTION:
- When servicing the washer pump, be careful not to damage the washer pump seal.
- Do not operate the washer pump before filling the washer reservoir.
Failure to do so could result in premature pump failure.

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper.

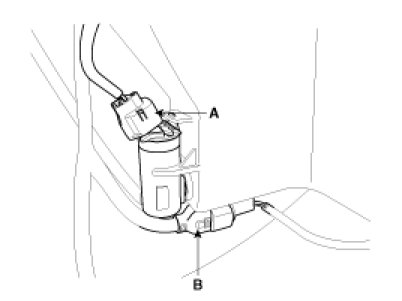

3. Remove the washer hose and disconnect the washer motor connector(A) and level sensor connector(B).

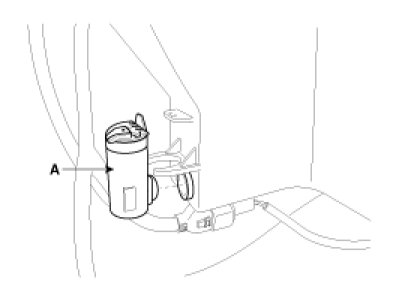

4. Remove the washer motor(A).

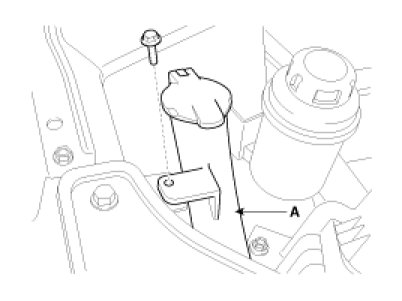

5. Remove the funnel part(A) of reservoir after loosening the mounting bolt(1EA).

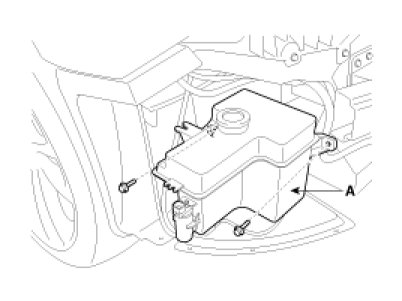

6. Remove the washer reservoir (A) after removing 2 bolts.






Installation

1. Install the washer reservoir.

NOTE:
Before installing the pump motor, check the filter for foreign material or contamination. if necessary, clean the filter into the pump motor.

2. Install the funnel.
3. Install the washer motor.
4. Install the washer hose.
5. Connect the washer motor connector and level sensor connector.
6. Install the front bumper.
