Wiper Switch: Testing and Inspection





Inspection

Check for continuity between the terminals while operating the wiper and washer switch. If it is not normal condition, replace wiper and wiper switch.

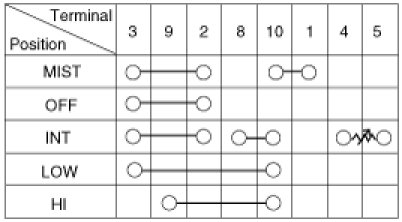

Wiper Switch

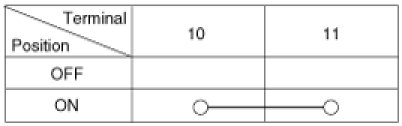

Washer Switch
