Body - Revised Door Belt Weatherstrip

Group
BODY (INTERIOR/EXTERIOR)

Number
09-BD-007

Date
JULY, 2009

Model
2010 GENESIS COUPE (BK)

Subject
GENESIS COUPE (BK) DOOR BELT WEATHERSTRIP CHANGE

DESCRIPTION:

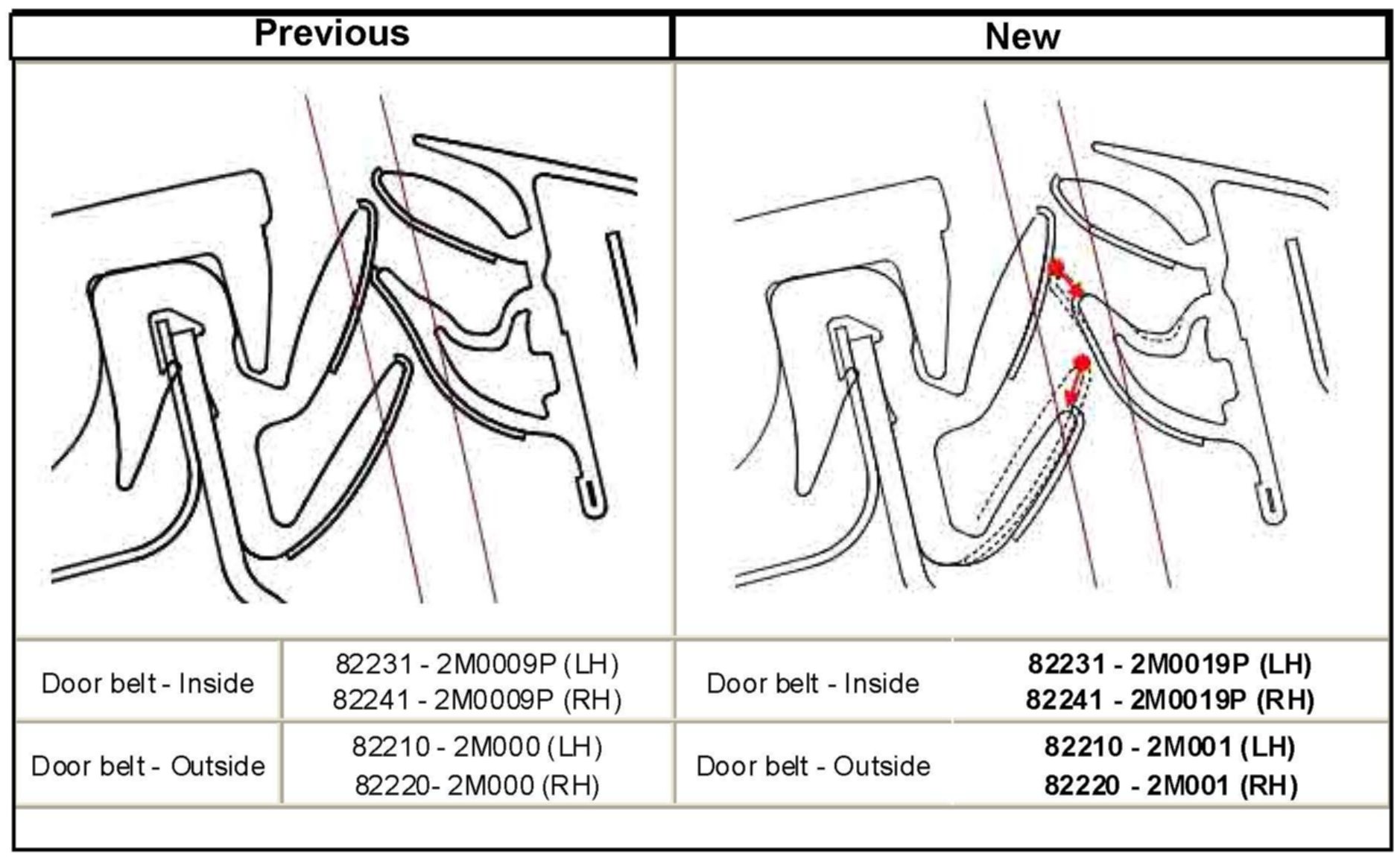

This bulletin provides information on changes in Genesis Coupe (BK) door belt weatherstrips as shown below.





[Changes]

- Lower lip of inside door belt weatherstrip has been cut by 4 mm.

- Lower lip of outside door belt weatherstrip has been cut by 4.5 mm.





NOTE:
The previous door belt weatherstrips are not available as service parts. When the replacement of a door belt weatherstrip is required, use a new type replacement part.

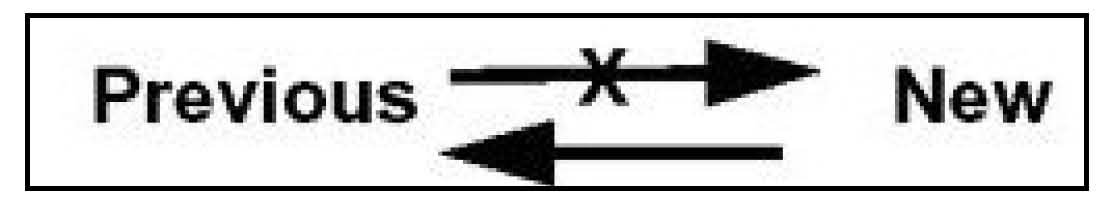

INTERCHANGEABILITY

EFFECTIVE VEHICLE INFORMATION:
Model: Genesis Coupe (BK)

Effective vehicle production date: December 2, 2008 ~

Normal warranty applies.
