Repair procedures

Removal

1. Unzip the leather cover of shift lever.
2. Remove the muffler assembly. (refer to Muffler in EM group)

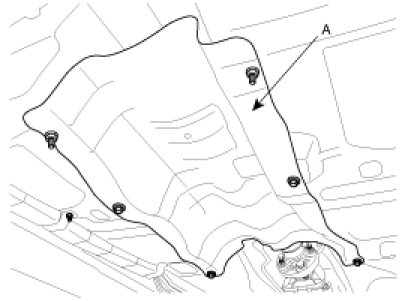

3. Remove the heat shield cover (A).




4. Disassemble the propeller shaft from the transmission by removing the bolts (A-3ea).




5. Remove the base bracket (C) and select rod (D) from the transmission by removing the clips (A-2ea) and snap pin (B).








6. Remove the mounting nuts (A-4ea) of shift lever assembly.




7. Pull out the shift lever assembly with the base bracket and select rod.

CAUTION:
Be careful not to damage to the shift lever assembly.

Installation

1. Temporarily install the shift lever assembly with the base bracket and select rod.

CAUTION:
Be careful not to damage to the shift lever assembly.

2. Install the mounting nuts (A-4ea) of shift lever assembly.




3. Install the base bracket (C) and select rod (D) to the transmission with clips (A-2ea) and snap pin (B).








4. Reassemble the propeller shaft to the transmission by installing the bolts (A-3ea).




5. Install the heat shield cover (A).




6. Install the muffler assembly. (refer to Muffler in EM group)
7. Zip the leather cover of shift lever.
