Repair procedures

Removal

1. Remove the transmission assembly. (refer to Manual transmission removal in MT group)

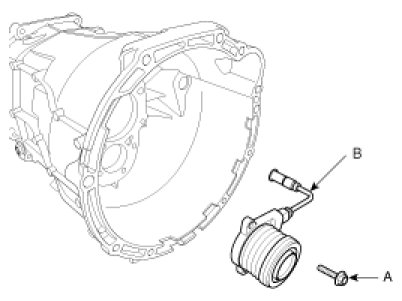

2. Remove the C.S.C assembly (B) from the transmission case by removing bolts (A-3ea).






Installation

1. Install the C.S.C assembly (B) to the transmission case by installing bolts (A-3ea).




2. Install the transmission assembly. (refer to Manual transmission installation in MT group)
3. Bleed the air in the C.S.C system. (refer to C.S.C Adjustment Procedure)
