Procedures

C.S.C Adjustment Procedure

C.S.C(Concentric Slave Cylinder) Air Bleeding

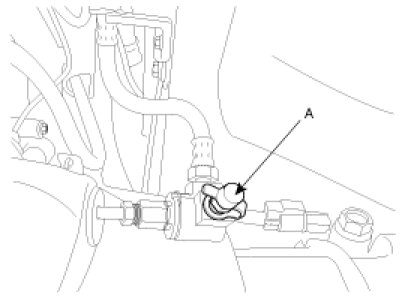

1. After disconnecting a cap from the concentric slave cylinder air bleeder, insert a vinyl hose in the plug.
2. Loosening the plug screw, press and release the clutch pedal about 10 times.

CAUTION:
Hold the air bleeder body not to rotate with a spanner.
The holding is needed when the plug loosened or tightened.

3. Tighten the plug during the clutch pedal pressed.
Afterwards, raise the pedal with a hand.

Tightening torque :
8 - 10 Nm (0.8 - 1.0 kgf.m, 2.8 - 7.2 lb-ft)

4. After pressing the clutch pedal 3 times more, loosen the plug and retighten it with the pedal pressed. Raise it again, then.
5. Repeat the step 4 two or three times. (until there is no bubble in the fluid)
