Repair procedures

Removal

1. Disconnect (-) terminal from the battery in order to prevent current from flowing through wire.

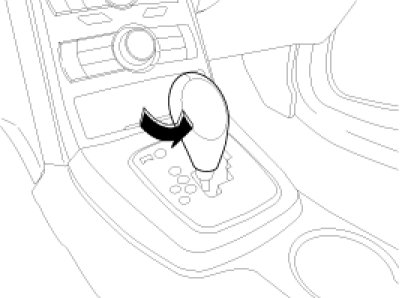

2. Remove the shift lever knob by rotating counter clockwise.

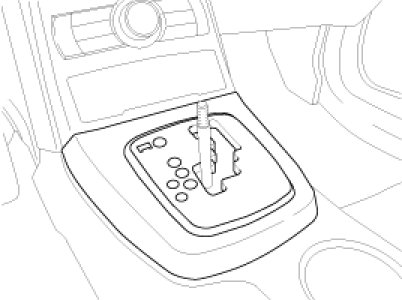

3. Remove the indicator assembly.

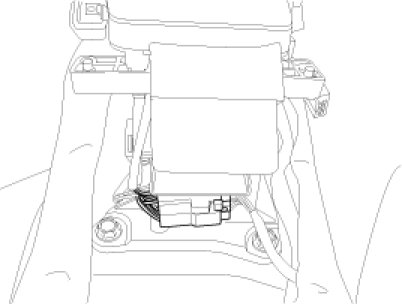

4. Disconnect the sports mode switch connector.

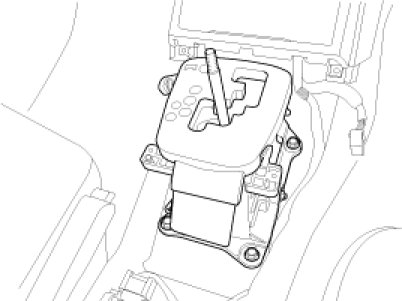

5. Remove the shift level assembly by removing bolts(4ea).

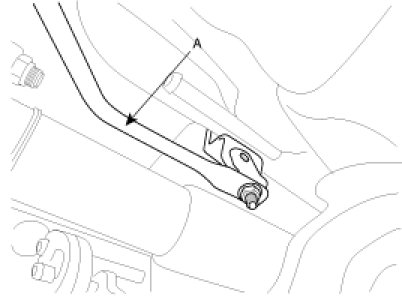

6. Remove the shift link (A) by removing a nut.






Installation

1. Install the shift level assembly by installing bolts(4ea).

Tightening torque:
9 - 14 Nm (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)




2. Connect the sports mode switch connector.




3. Install the indicator assembly.

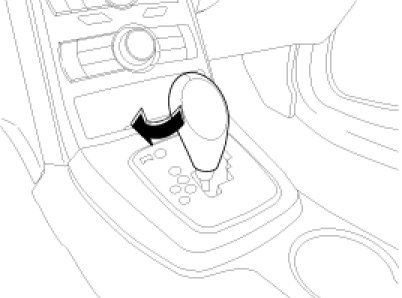

4. Install the shift lever knob by rotating clockwise.




5. Install the shift link (A) by installing a nut.




6. Connect (-) terminal to the battery.
