Repair Procedures

Replacement

1. Remove the front wheel & tire.

Tightening torque :
90 - 110 N.m(9.0 - 11.0 kgf.m, 65 - 80 lb-ft)

2. Disconnect the stabilizer link(B) with the front strut assembly(A) after loosening the nut.

Tightening torque :
100 - 120 N.m(10.0 - 12.0 kgf.m, 72 - 87 lb-ft)

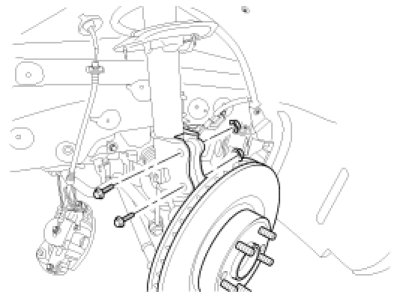

3. Disconnect the front strut assembly with the knuckle by loosening the bolt & nut.

Tightening torque :
140 - 160 N.m(14.0 - 16.0 kgf.m, 101 - 116 lb-ft)

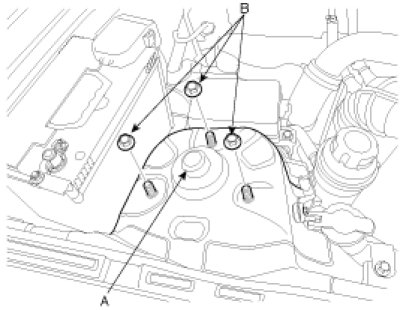

4. Remove the strut cap(A).
5. Loosen the strut mounting nuts(B).

Tightening torque :
45 - 65 N.m(4.5 - 6.5 kgf.m, 32 - 47 lb-ft)




6. Installation is the reverse of removal.
