Disassembly

Disassembly

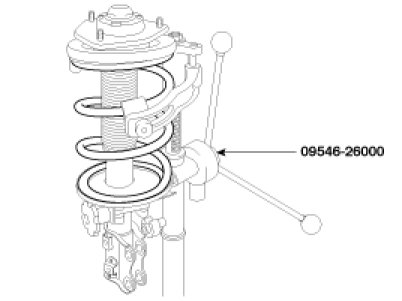

1. Using the special tool (09546-26000), compress the coil spring.




2. Remove the self-locking nut.

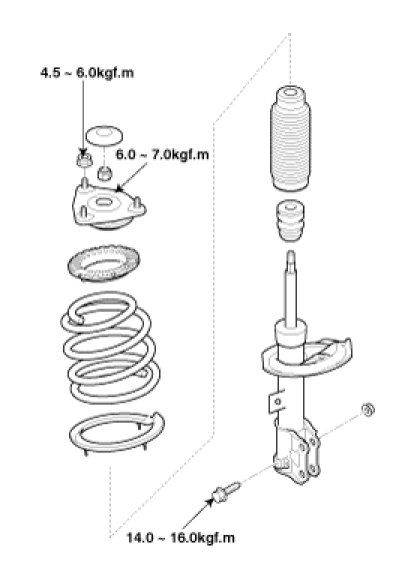

3. Remove the insulator, spring seat, coil spring and dust cover from the strut assembly.
