Rear Stabilizer Bar

Replacement

1. Remove the rear wheel & tire.

Tightening torque :
90 - 110 N.m(9.0 - 11.0 kgf.m, 65 - 80 lb-ft)

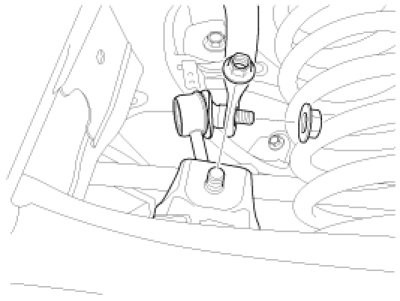

2. Loosen the nuts and then remove the stabilizer link from stabilizer bar and lower arm.

Tightening torque :
100 - 120 N.m(10.0 - 12.0 kgf.m, 72 - 87 lb-ft)

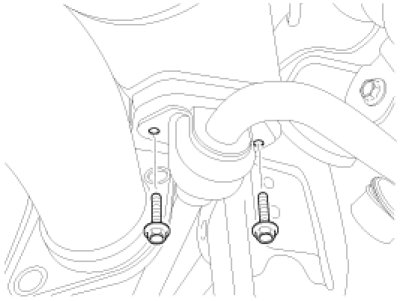

3. Loosen the mounting bolts.

Tightening torque :
50 - 65 N.m(5.0 - 6.5 kgf.m, 36 - 47 lb-ft)




4. Installation is the reverse of removal.
