Front Stabilizer Bar

Replacement

1. Remove the front wheel & tire.

Tightening torque :
90 - 110 N.m(9.0 - 11.0 kgf.m, 65 - 80 lb-ft)

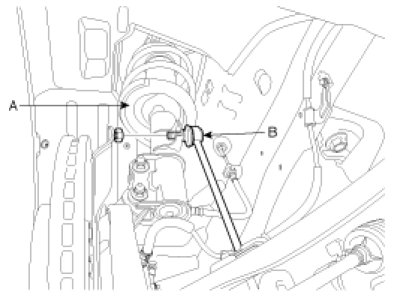

2. Disconnect the stabilizer link(B) with the front strut assembly(A) after loosening the nut.

Tightening torque :
100 - 120 N.m(10.0 - 12.0 kgf.m, 72 - 87 lb-ft)

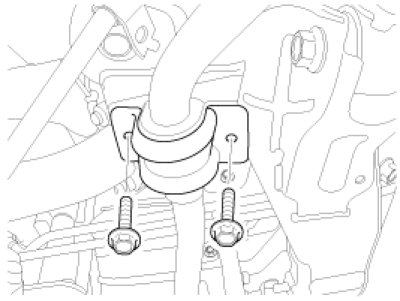

3. Remove stabilizer from the cross member by loosening the clamp mounting bolts.




4. Installation is the reverse of removal.
