Rear Lower Arm

Replacement

1. Remove the rear wheel & tire.

Tightening torque :
90 - 110 N.m(9.0 - 11.0 kgf.m, 65 - 80 lb-ft)

2. Remove the rear shock absorber.

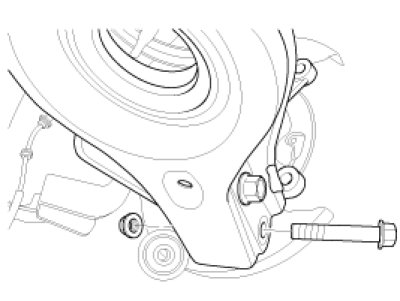

3. Loosen the bolts and nuts and then remove the lower arm from rear axle.

Tightening torque :
140 - 160 N.m(14.0 - 16.0 kgf.m, 101 - 116 lb-ft)

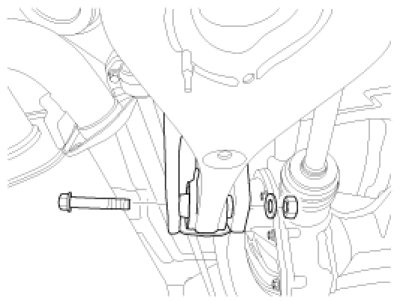

4. Loosen the bolts and nuts and then remove the lower arm from sub frame.

Tightening torque :
140 - 160 N.m(14.0 - 16.0 kgf.m, 101 - 116 lb-ft)




5. Installation is the reverse of removal.
