Repair Procedures

Replacement

[2.0 Theta]
1. Drain the power steering fluid.
2. Remove the drive belt.

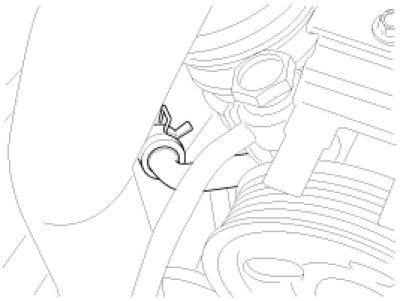

3. Disconnect the pressure tube and return hose from the power steering pump.

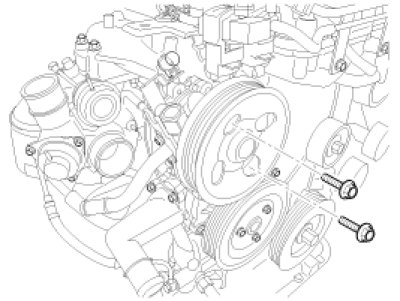

4. Loosen the mounting bolts and then remove the power steering pump.




5. Installation is the reverse of the removal.

[3.8 DOHC(VVT)]
1. Drain the power steering fluid.
2. Remove the drive belt.

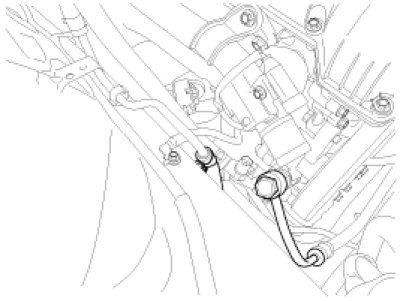

3. Disconnect the pressure tube and return hose from the power steering pump.




4. Loosen the mounting bolts and then remove the power steering pump.




5. Installation is the reverse of the removal.
