Disassembly

Disassembly

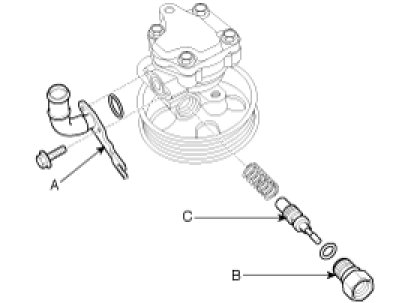

1. Remove the suction tube (A) and O-ring.
2. Unscrew the connector assembly (B) and then pull the flow control valve (C) and spring out of the pump body.

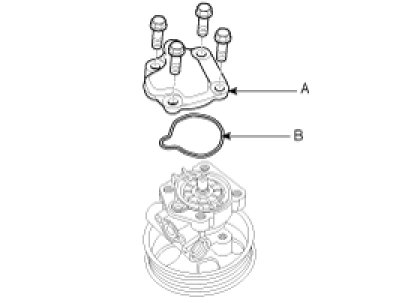

3. Remove the pump cover (A) and O-ring (B).

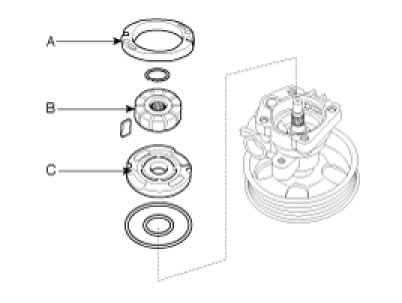

4. Remove the cam ring (A) and rotor& vanes (B).
5. Remove the side plate (C) and O-rings.

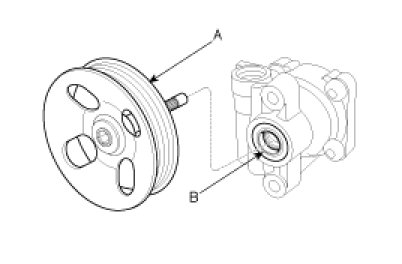

6. Remove the pump pulley & shaft (A) and O - ring (B).
