Wheel Stud / Lug Nut

Wheel Nut Tightening

1. Tightening torque.

Tightening torque :
90 - 110N.m (9 - 11kgf.m, 65.1 - 79.5lb-ft)

CAUTION:
When using an impact gun, final tightening torque should be checked using a torque wrench.

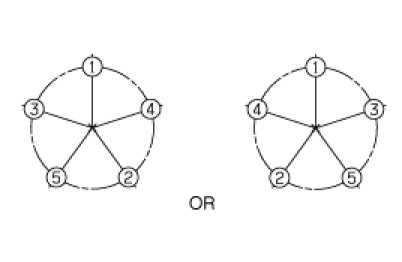

2. Tightening order.
Check the torque again after tightening the wheel nuts diagonally.
