Combination Switch: Testing and Inspection

Inspection

Lighting Switch Inspection
With the multi function switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multi-function switch.

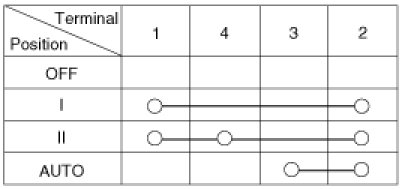

Lighting Switch (Auto Light)

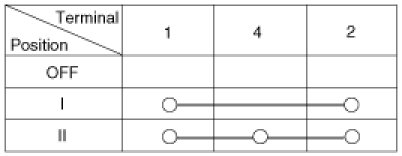

Lighting Switch

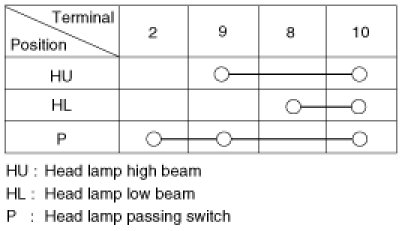

Dimmer And Passing Switch

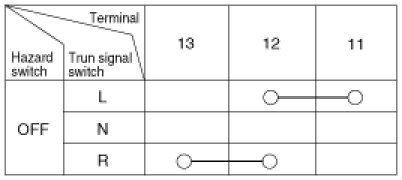

Turn Signal Switch

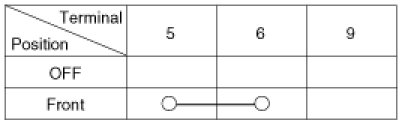

Front Fog Lamp Switch






Wiper And Washer Switch Inspection
With the multi function switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multi-function switch.

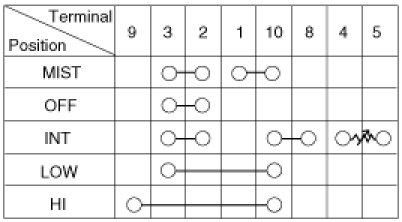

Wiper Switch






Washer Switch
