Ambient Light Sensor: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

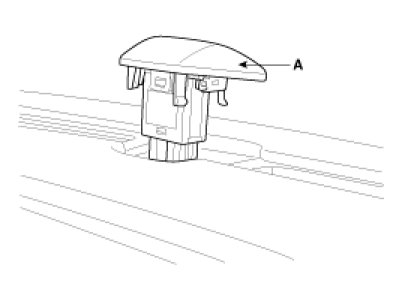

2. Remove the photo & auto light sensor(A) from crash pad upper side by using screw (-) driver.




3. Remove the auto light connector.

Installation

1. Reconnect the auto light connector.
2. Install the auto light sensor.
