Repair Procedures





Removal

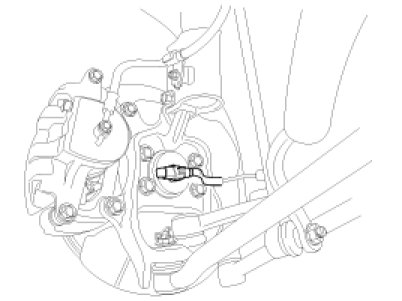

1. Remove the connector after removing the front wheel speed sensor clip.




2. Remove the front wheel speed sensor.
3. Installation is the reverse of removal.
