Seat Temperature Switch: Service and Repair

Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the console upper cover(A) after removing the shift lever knob.

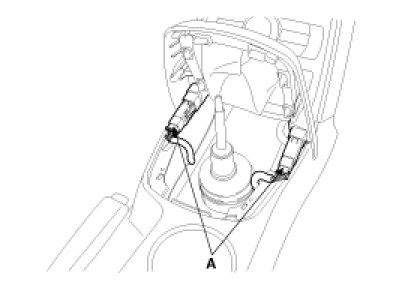

3. Disconnect the seat heater switch connector(A).

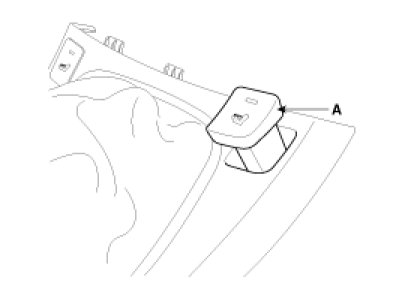

4. Remove the seat heater switch(A).






Installation

1. Install the seat heater switch.
2. Install the console upper cover.
3. Install the shift lever knob.
