Rear Seat Belt

Replacement

Rear Seat Belt Buckle Replacement
1. Remove the rear seat assembly.

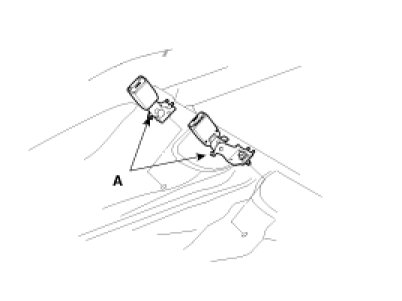

2. Remove the rear seat belt buckle (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)




3. Installation is the reverse of removal.
