Engine - Air Filter Element Application

Group ENGINE MECHANICAL

Number 09-EM-004

Date JULY, 2009

Model
2010 GENESIS COUPE

Subject
INTAKE AIR FILTER ELEMENT DIFFERENCES FOR GENESIS COUPE ENGINES

DESCRIPTION:

Genesis Coupe 2.0L and 3.8L engines are equipped with different air intake systems and different air filter elements. The air filter element must only be replaced with the appropriate part number as described in this bulletin.

VEHICLES AFFECTED:
^ 2010 model year and later Genesis Coupe equipped with 2.0L TCI engine

^ 2010 model year and later Genesis Coupe equipped with 3.8L V6 engine

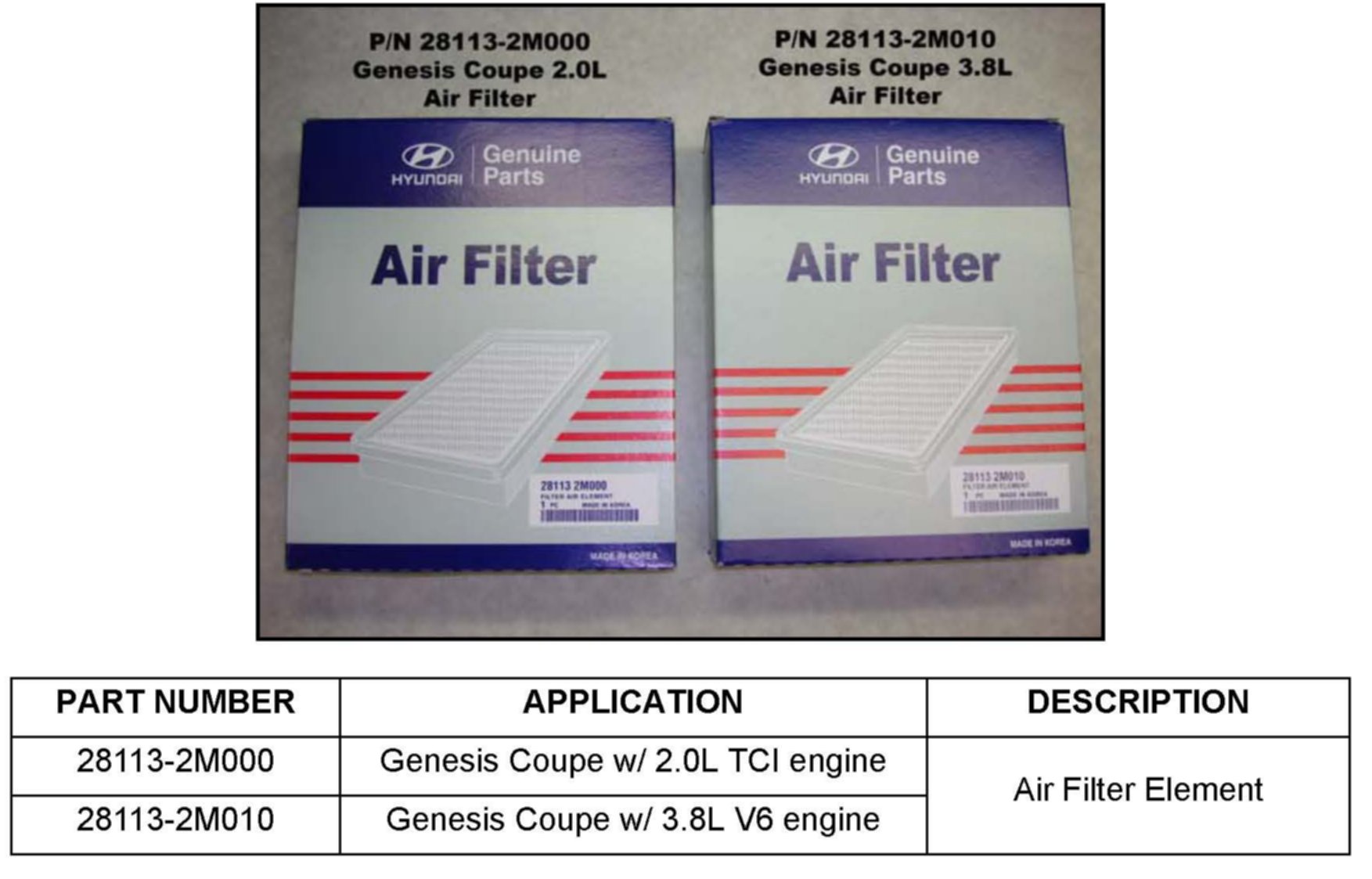

PARTS INFORMATION

NOTE:

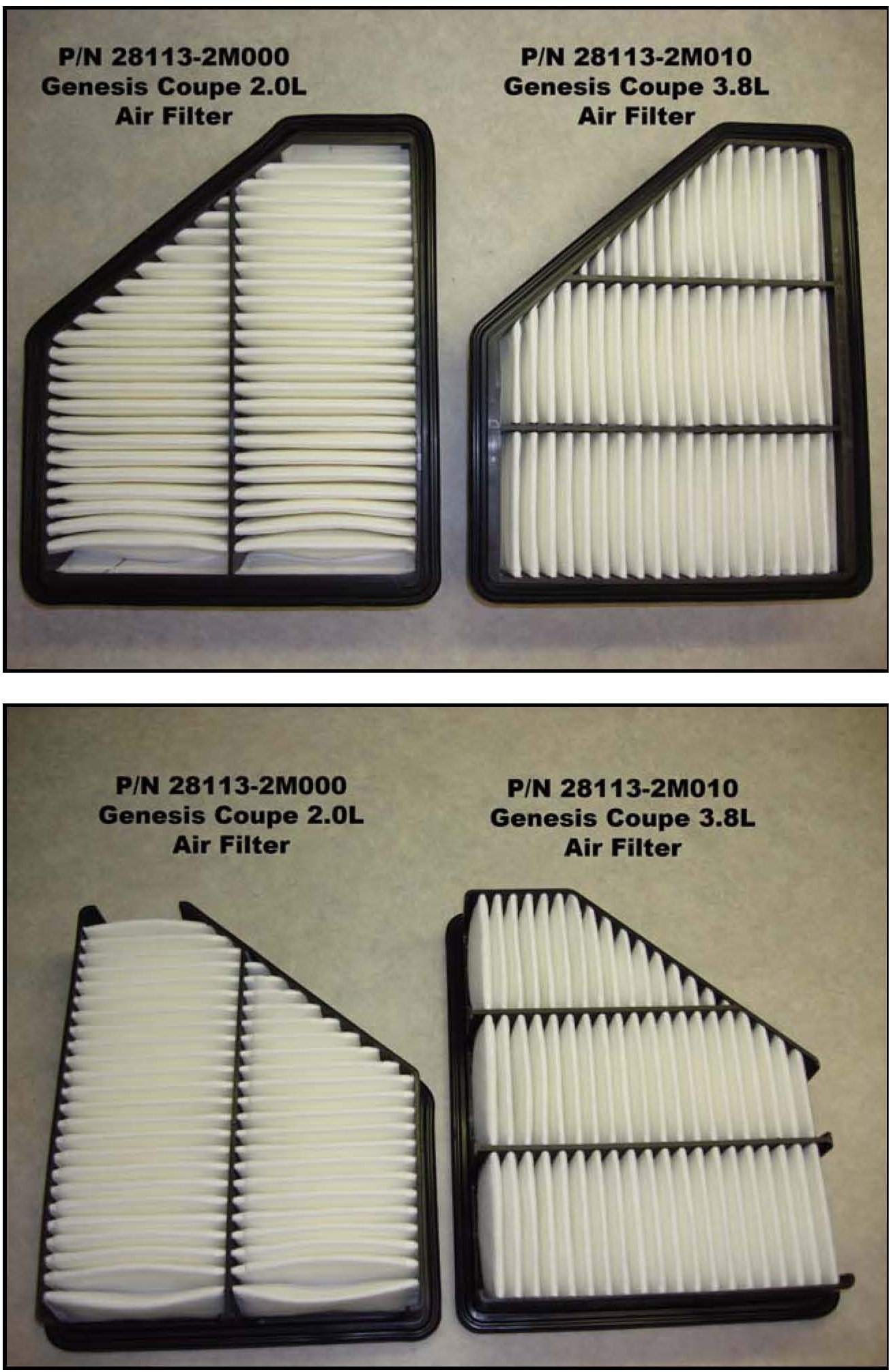

While the general shape appears similar, the direction of the filtering pleats and airflow openings of the perimeter body are different for each part number.
