Pinout Values and Diagnostic Parameters
ECM Terminal And Input/Output signal

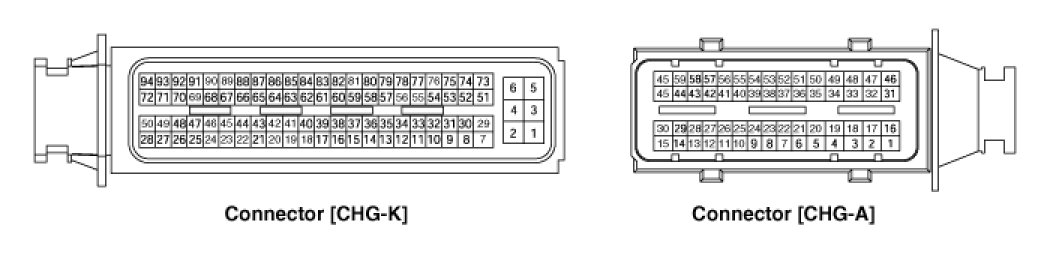

ECM Terminal Function

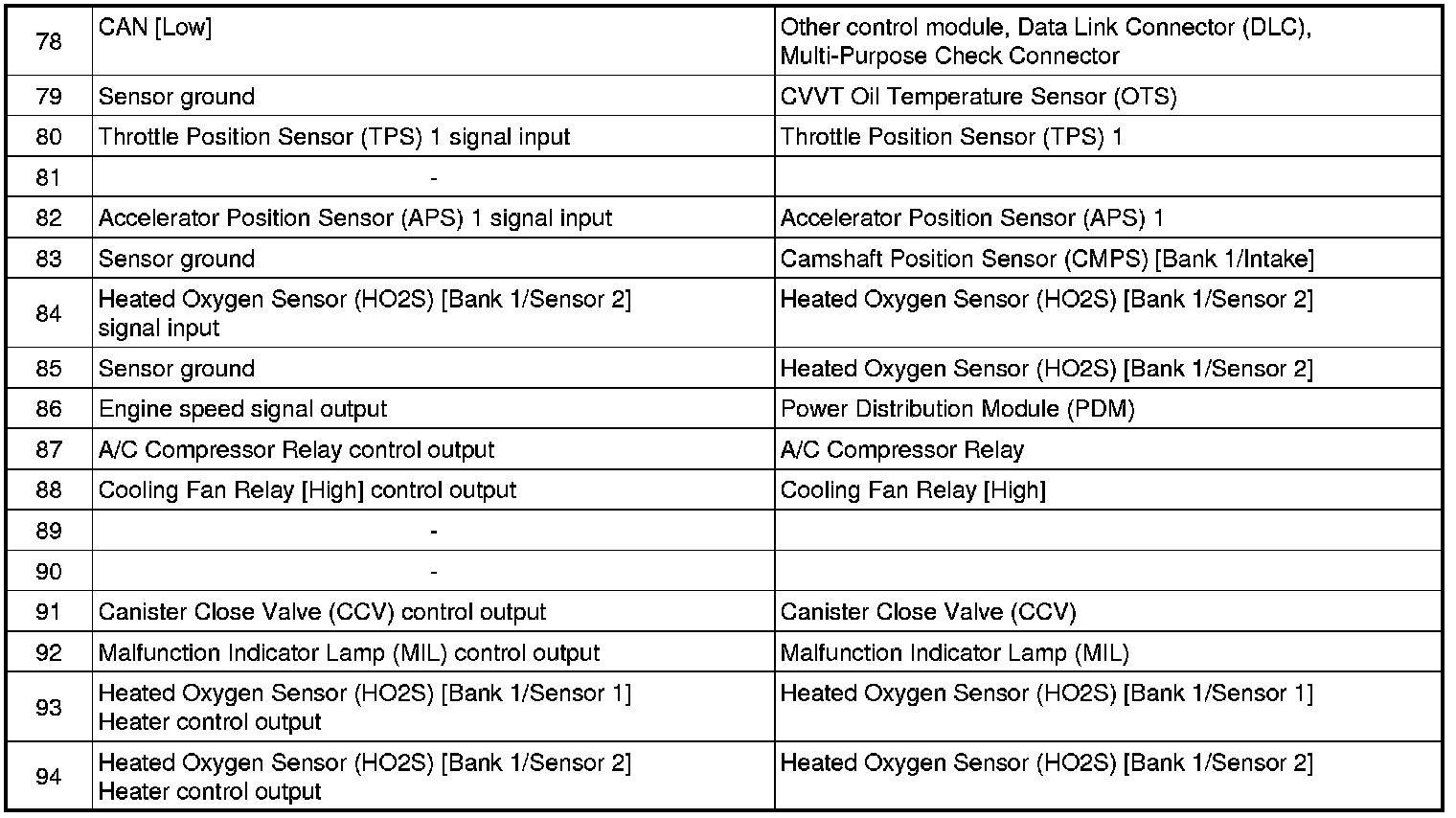

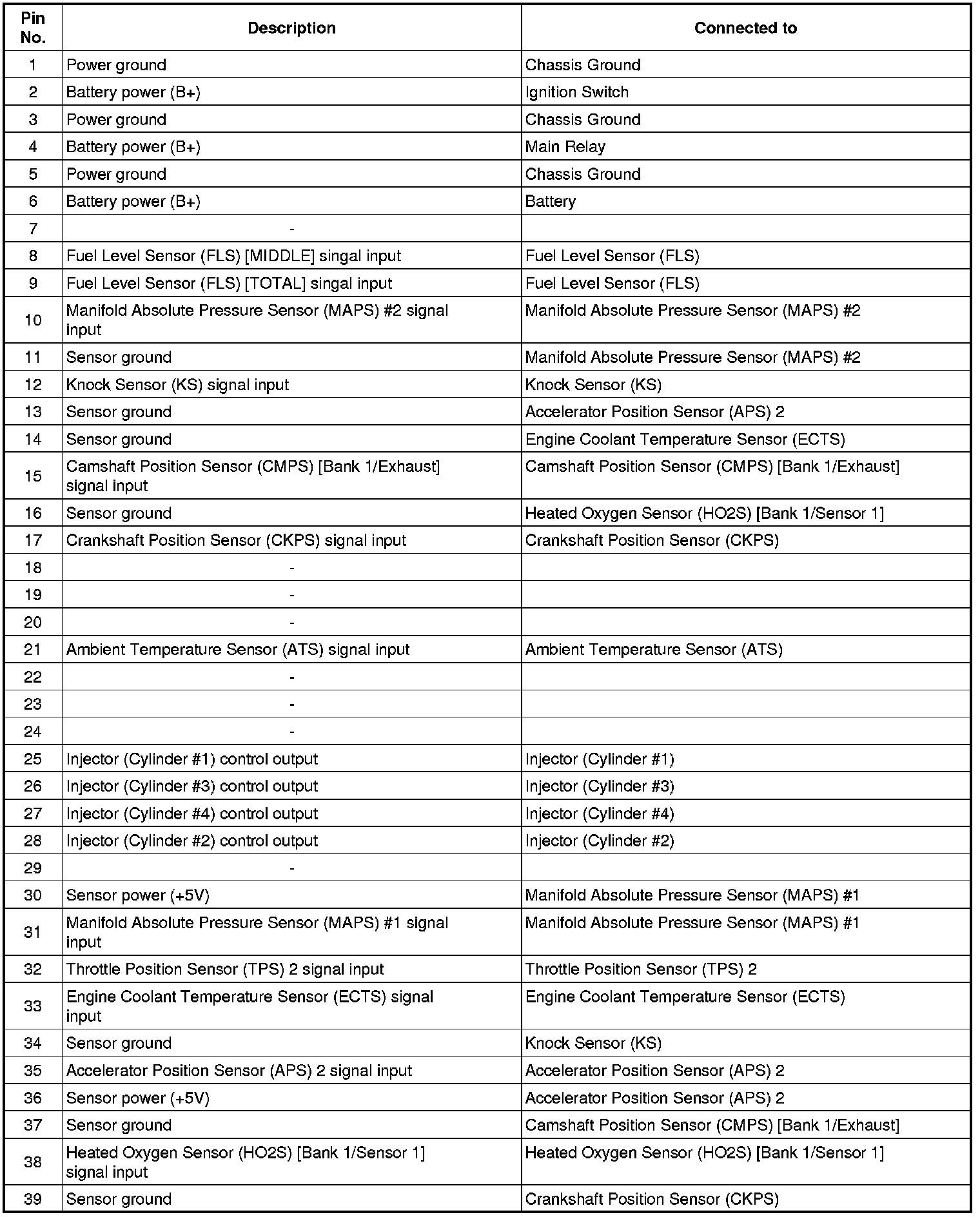

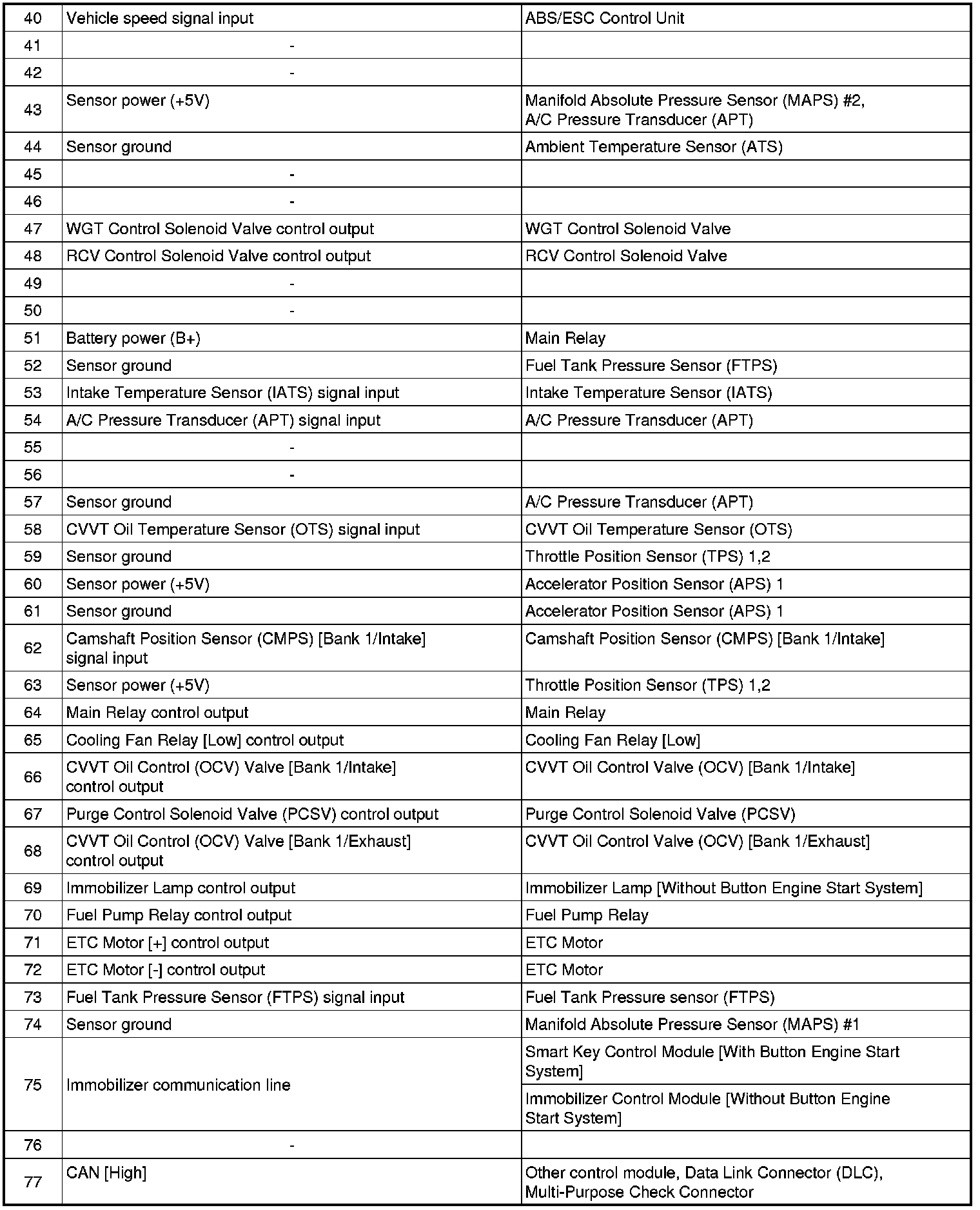

Connector [CHG-K]

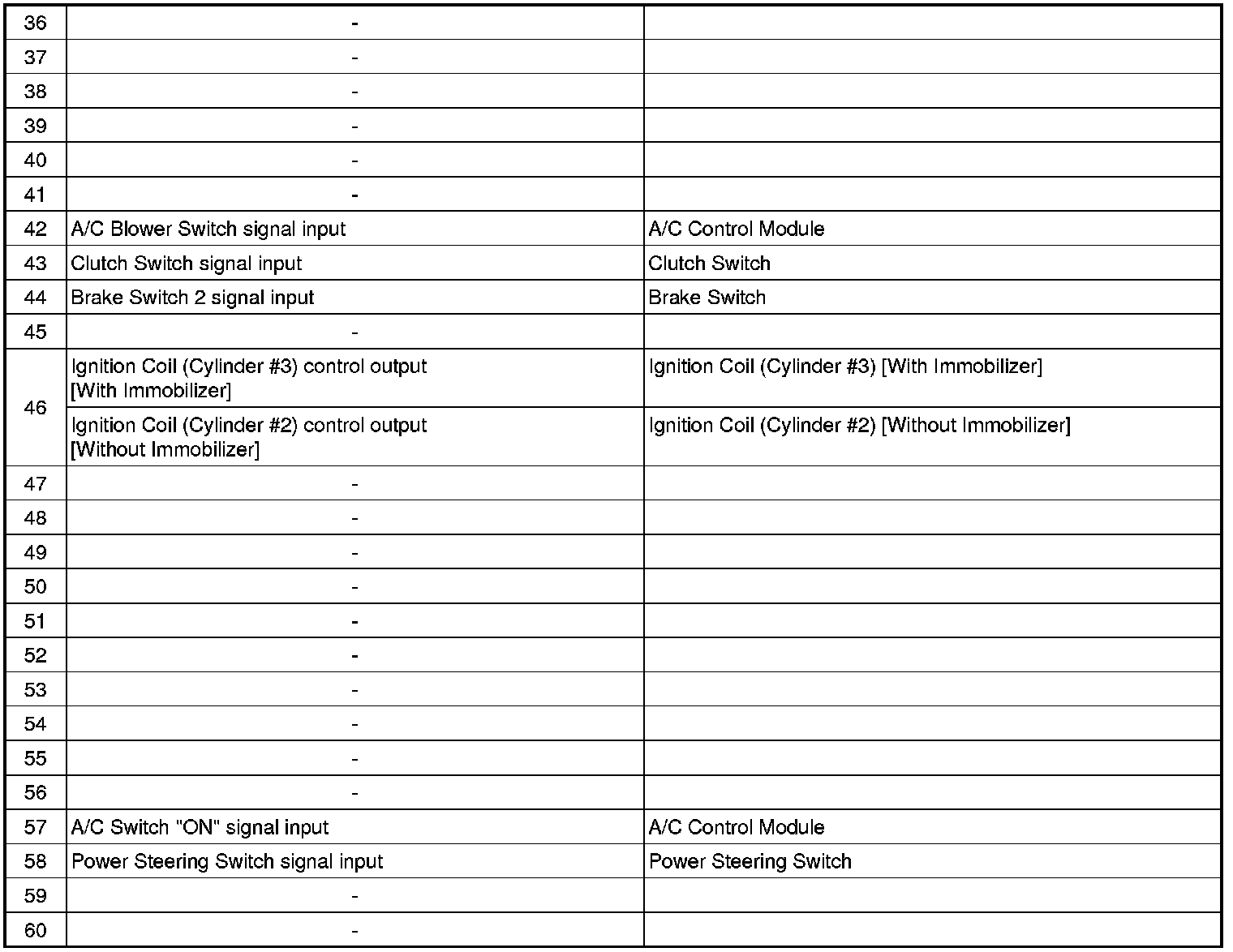

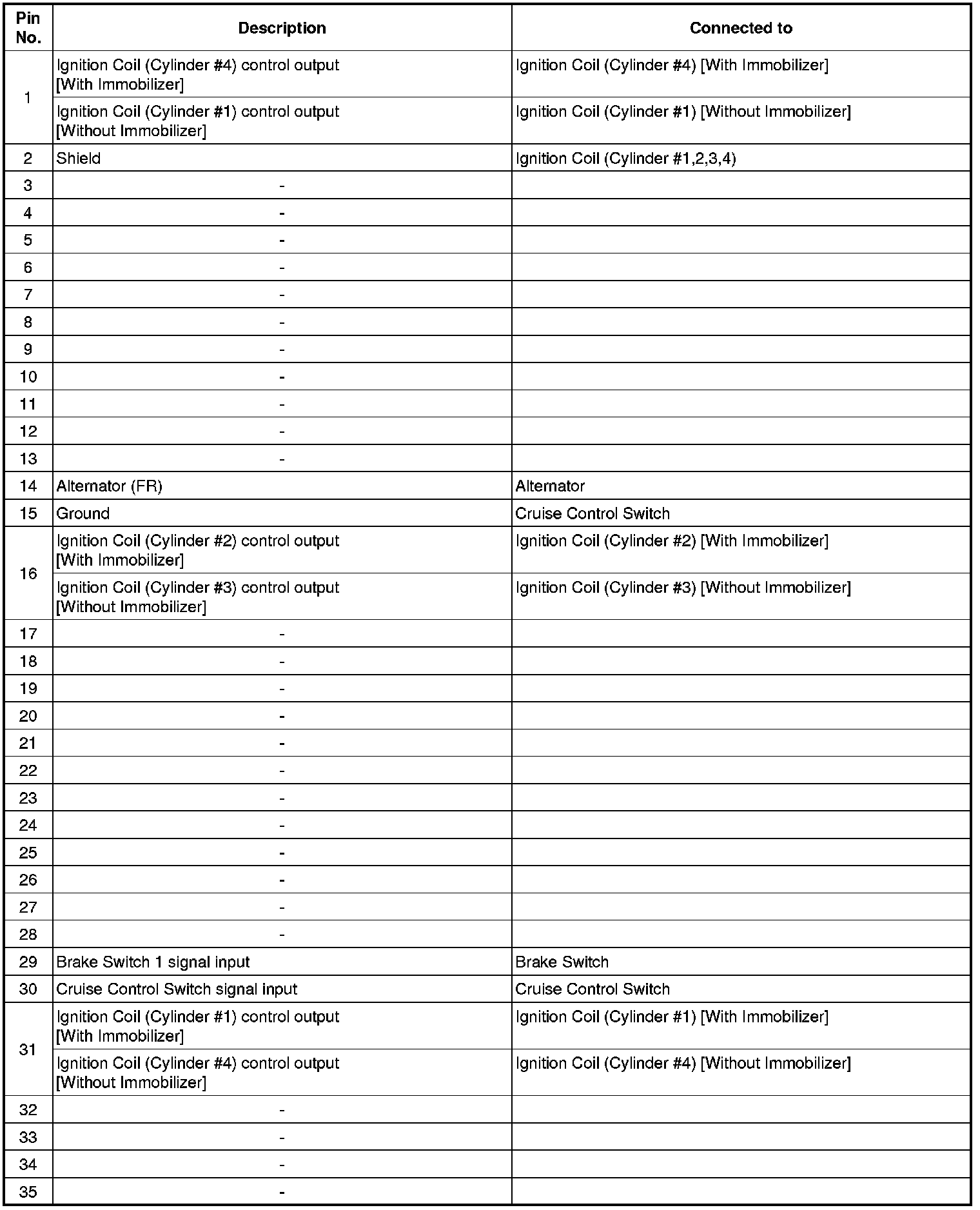

Connector [CHG-A]
