Tail Lamp: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

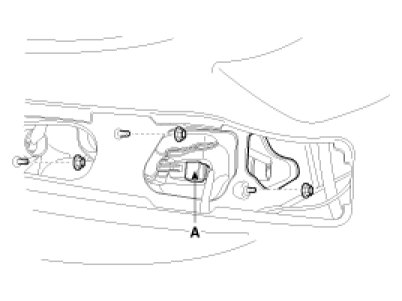

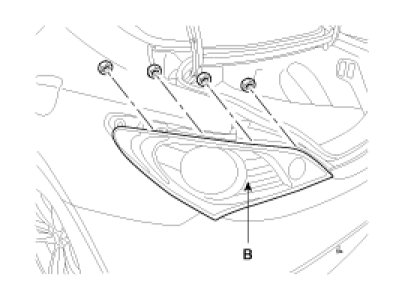

2. Loosen the rear combination lamp mounting nuts(4EA) and disconnect the connector(A) then remove the rear combination lamp assembly(B).








3. If necessary to replace the bulb, replace the bulb turning the cap in the counter clock-wise direction without removal of rear combination lamp assembly.

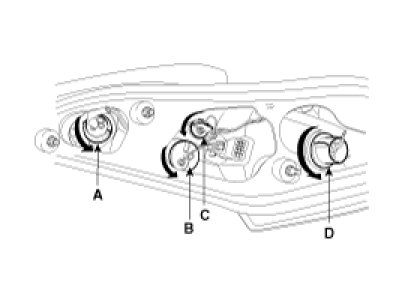

A : Stop lamp, B : Turn signal lamp
C : Back up lamp, D : Tail lamp






Installation

1. Install the rear combination lamp assembly after replacing the bulbs.
