Repair Procedures

Removal

1. Disconnect the negative (-) battery terminal.

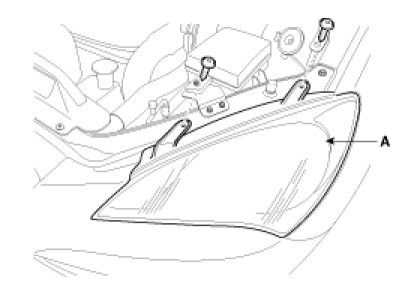

2. Remove the head lamp assembly(A) after loosening the mounting bolt(2EA).





NOTE:

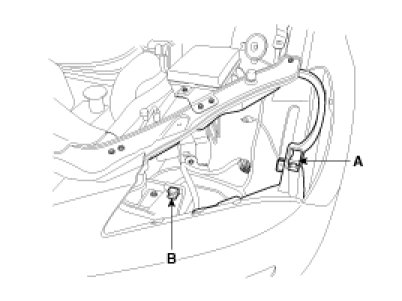

Take care that holding clip (A, B) is not to be damaged.

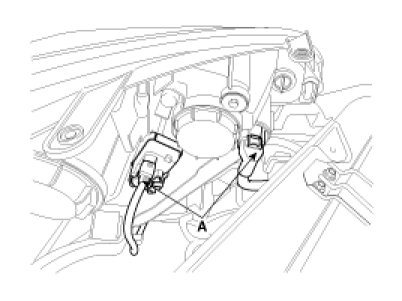

3. Disconnect the head lamp connectors(A).




4. Remove the bulb caps from the head lamp assembly after turning in the counter clock-wise direction.

Installation

1. Install the head lamp assembly after connecting the connector.
2. Connect the negative (-) battery terminal.

Replacement

Bulb (HID)
1. Turn the head lamp switch off.
2. Remove the lamp assembly.
3. Disconnect the power connector from the lamp.

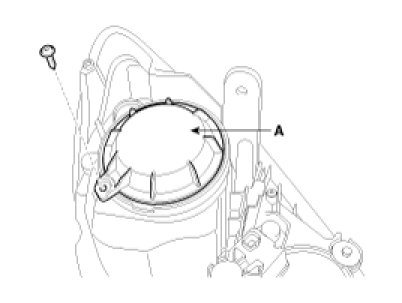

4. Remove the dust cover after loosening the screw.

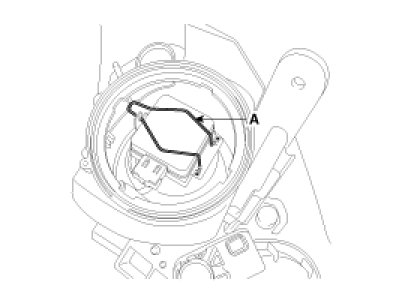

5. Remove the ignitor clip(A).




6. Disconnect the ignitor connector.

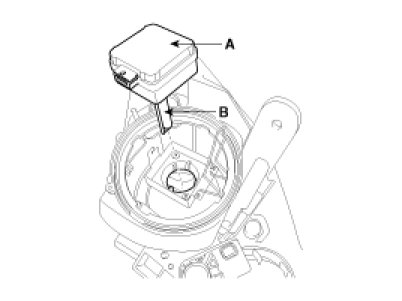

7. Remove the ignitor(A) and bulb(B).




8. Installation is the reverse of removal.

CAUTION:
Turn the head lamp switch off to avoid high voltage
Be careful not to damage the bulb and use genuine bulbs only
- Do not apply excessive force and fit it correctly.
- Confirm the bulb locking

Ballast
1. Turn the head lamp switch off.
2. Remove the head lamp assembly.
3. Disconnect the power connector from the lamp.

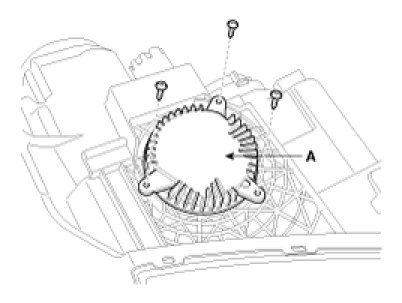

4. Remove the ballast (A) after loosening the screws (3EA).





NOTE:
Be careful not to be damaged when disconnecting the ballast connector.

5. Installation is the reverse of removal.

NOTE:
- Turn the head lamp switch off to avoid high voltage.

CAUTION:
- HID lamp shall not be used on other cars.(Fire may occur.)
- Fire may occur when HID lamp initially lights due to the fact that arc-discharge generates high voltage (max. 20,000V) and high current (12-13A), and are different from the halogen lamp specification.
- Install the dust cover after confirming the locking state between bulb and bulb holder.
- When testing the HID head lamp, turn the power on or off with switch between power supply and lamp because of high voltage.
- Do not operate the head lamp switch with the bulb not installed, because it generates spark momently.

Head lamp(high) bulb
1. Turn the head lamp power off.
2. Remove the head lamp assembly.
3. Disconnect the power connector from the lamp.

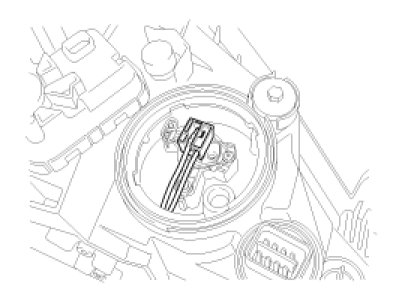

4. Remove the dust cap.




5. Disconnect the connector.

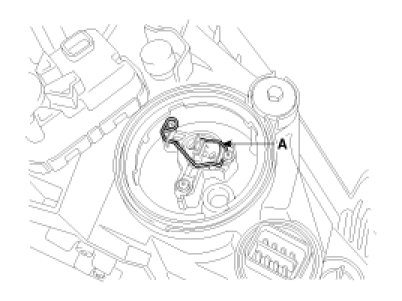

6. Remove the clip(A) from the head lamp (High) bulb.

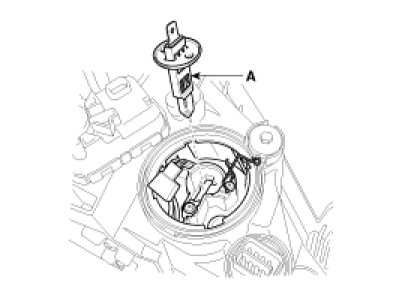

7. Remove the head lamp (High) bulb(A).





Front turn signal lamp
1. Turn the head lamp power off.
2. Remove the lamp assembly.
3. Disconnect the power connector from the lamp.

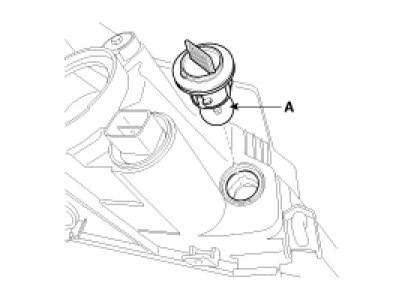

4. Remove the dust cap and bulb(A).
