Repair Procedures

Removal

1. Disconnect the negative (-) battery terminal.
2. Tilt the steering column down.

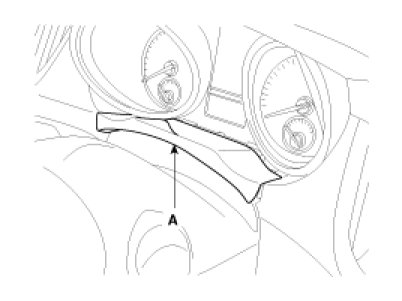

3. Remove the cluster fascia lower panel(A).

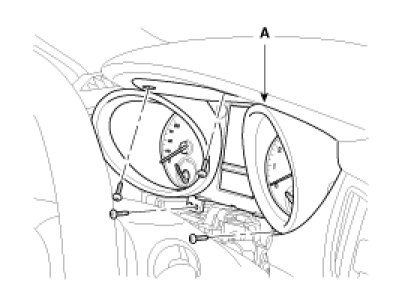

4. Remove the cluster(A) after loosening the screws.

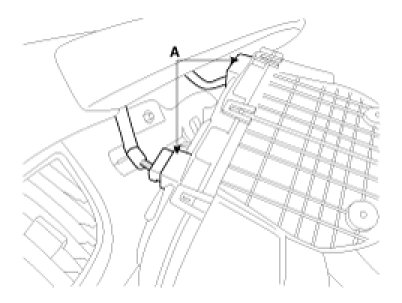

5. Disconnect the cluster connector (A), then remove the cluster.






Installation

1. Install the cluster to the cluster housing.
2. Install the cluster fascia lower panel.
