Crash Pad

Replacement

Cluster Fascia Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

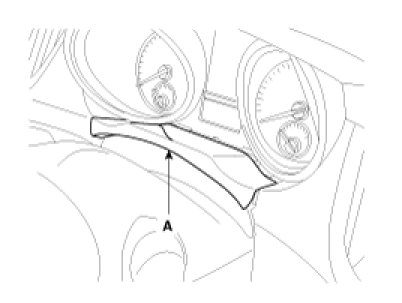

1. Remove the cluster lower panel (A).

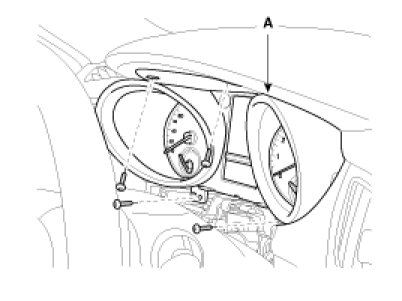

2. After loosening the mounting screws, remove the cluster (A).

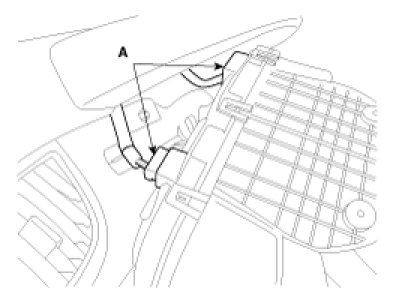

3. Disconnect the connector (A).




4. Installation is the reverse the removal.

NOTE:
- Make sure the connector is connected properly.
